Star Trac E-TBTe User Manual

Page 7

Text mode
Original mode

620-7921 Rev A

Step 9.

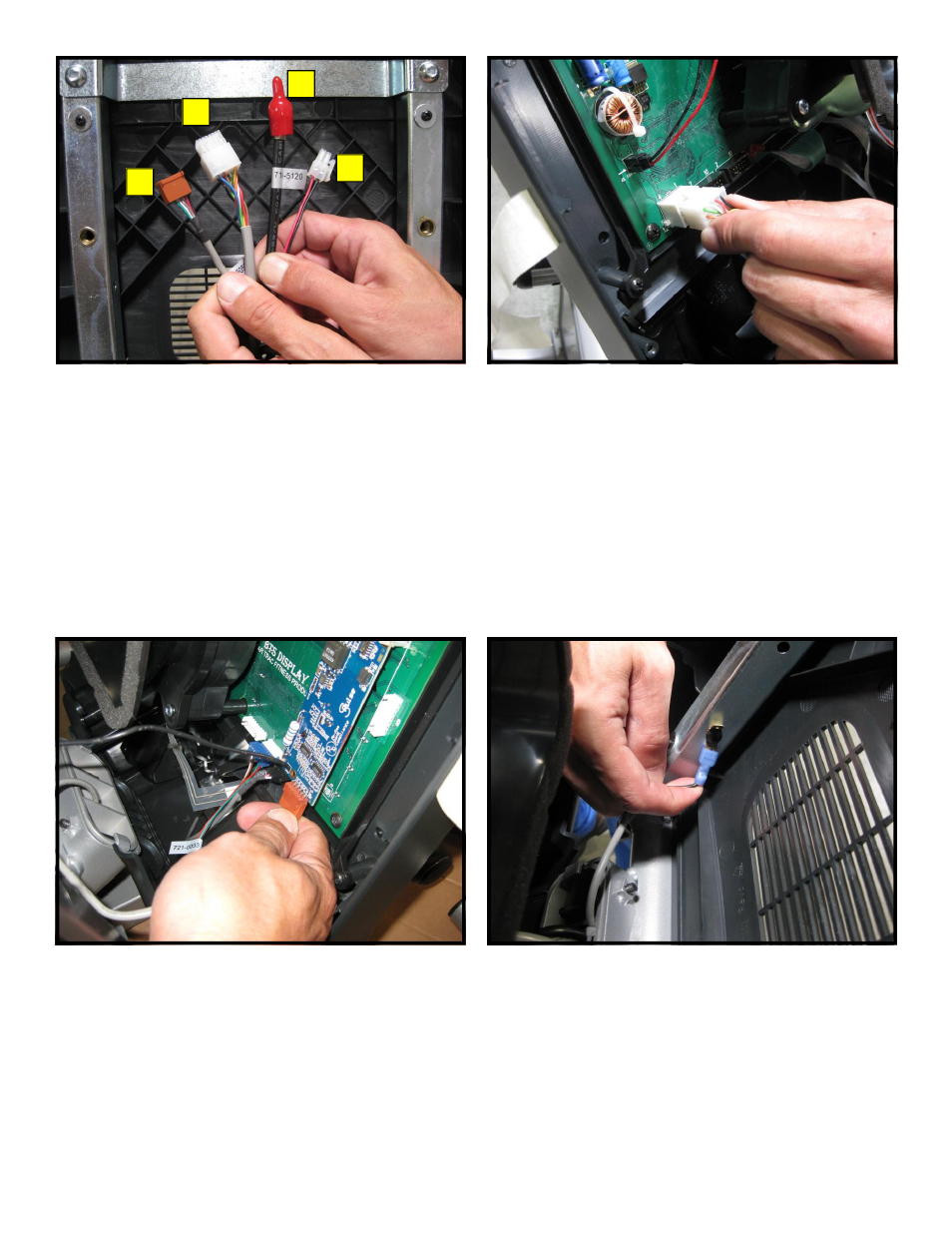

Identify the four cables coming out of the neck
and mounting bracket:
1. Heart rate cable
2. Main I/O cable
3. Coax cable
4. DC power cable

Note: If the unit is not equipped with Personal View-
ing Screen, the coax and DC power cables should
be tucked down the neck as they are part of the PVS
Kit.

Step 10.
Plug-in the 12-pin main I/O cable into the front
display circuit board at J4 connector.

Step 11.
Next, plug-in the heart rate cable into the HR
board connector.

Step 12.
Plug back the HR ground cable into the quick
disconnect tab on the display frame.
