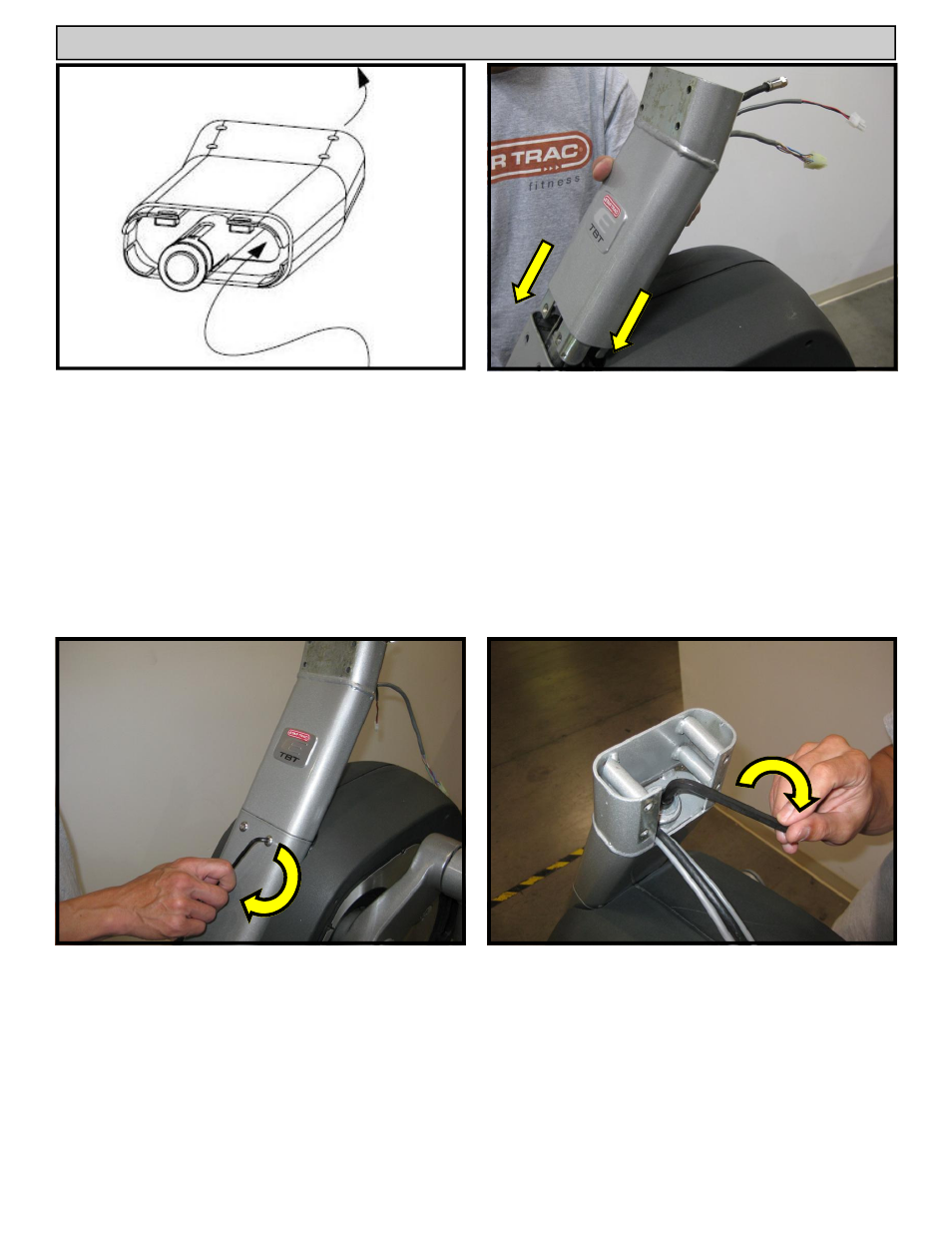

Step 1.
Route display cables up through upper half of
neck through the holes provided.
Step 2.
Insert the upper half of the neck into the lower
half.
Caution: Be careful not to pinch any cables between
the two sections of the assembled neck.
Step 3.
Install two 5/16” - 18 X 3/4” button head screws
into front neck using a 3/16” hex key. Tighten
bolts to 200 in-lbs (23 N-m).
Step 4.
Secure the neck by tightening the 3/8-16 x 2”
socket head cap screw using a 5/16” hex key.
Tighten bolt to 300 in-lbs (34 N-m).
INSTALLATION INSTRUCTIONS
