Star Trac E-TBTe User Manual

Page 14

620-7921 Rev A

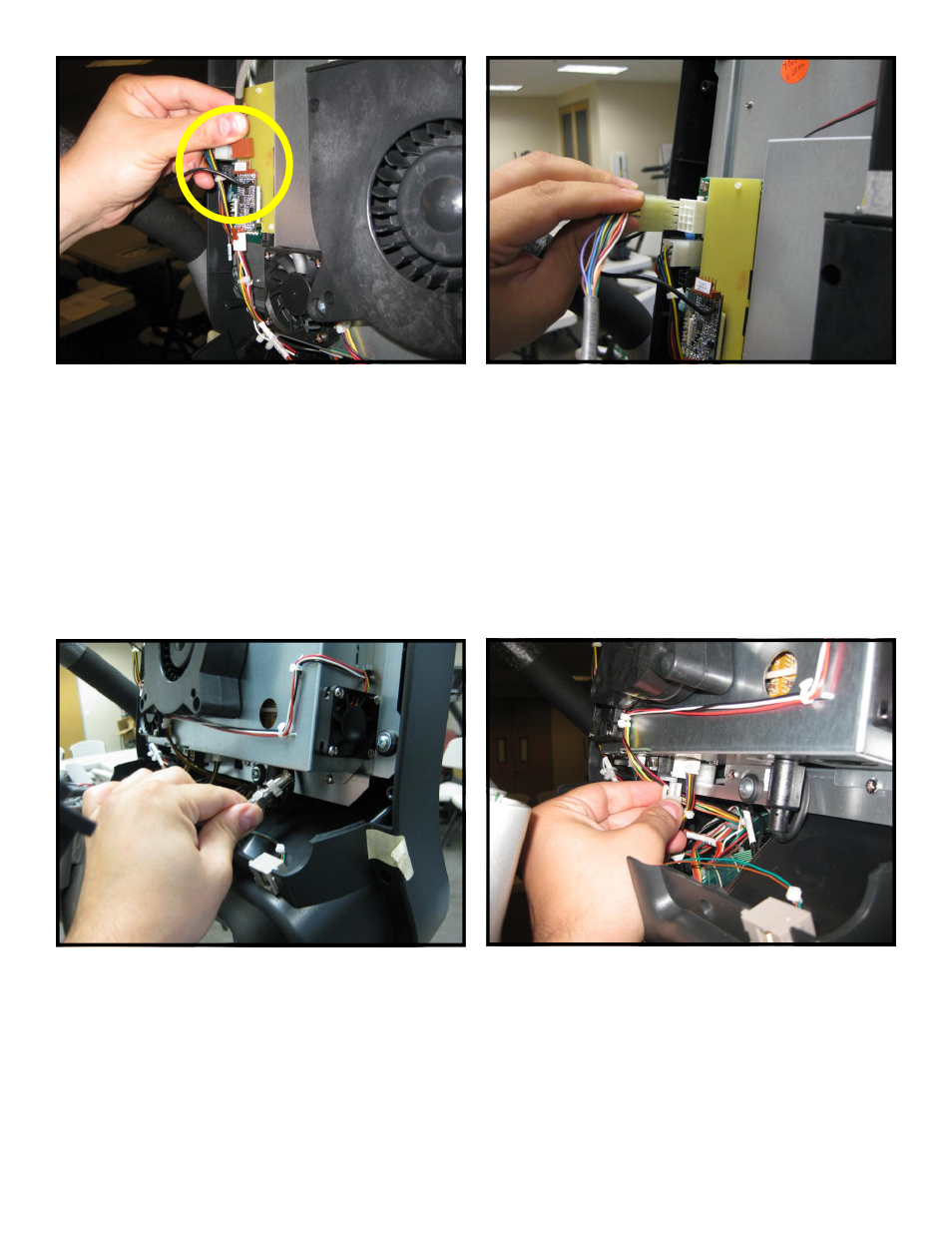

Step 15.
Next plug in the coax cable to the coax adapter
on the tuner card of the embedded display as-
sembly.

Step 16.
Now plug in the DC power cable from the base
neck to DC connectors on the embedded dis-
play assembly.

Step 14.
Plug-in the 12-pin main I/O cable from the neck
to the 12 pin connector on the FitCPU board of
the embedded display assembly.

Step 13.
Plug-in the heart rate cable from the neck into
the heart rate board connector on the FitCPU
board of the embedded display assembly.
