Star Trac E-TBTe - Manual (Page 29)

30
620-7921 Rev A

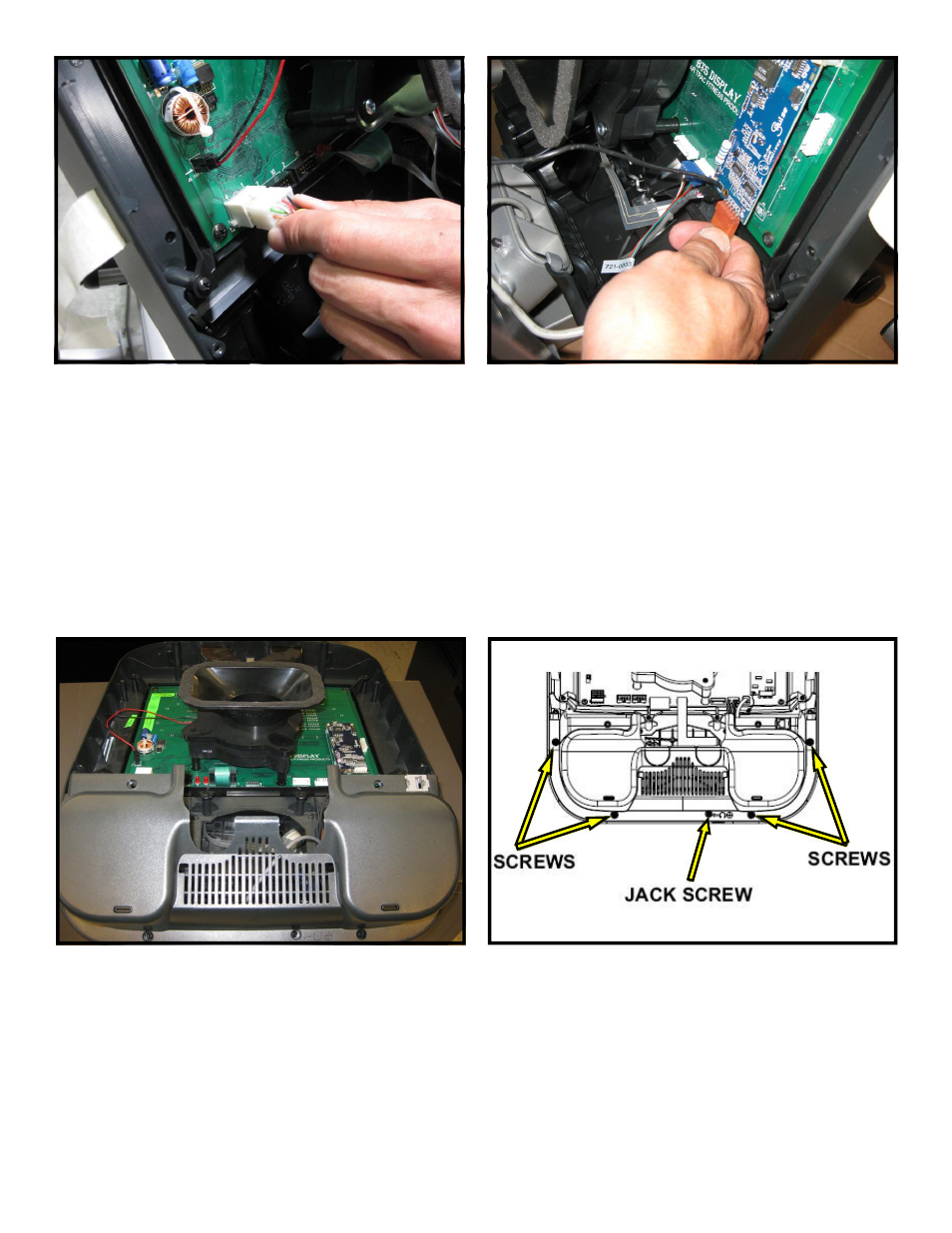

Step 5.
Disconnect the 12-pin serial connector from the
display Step 6.
Now disconnect the heart rate connector from
the display
Step 7.
Be careful with the display and place it face
down on top of a non-scratching surface to pro-
tect it from being damaged. Step 8.
Using a #2 Phillips head screwdriver, remove
the (4) screws that hold bottom side of the dis-
play console on, then remove the (1) screw that
holds the headphone jack cap.
Note: Retain screws for later use.
