620-7921 Rev A

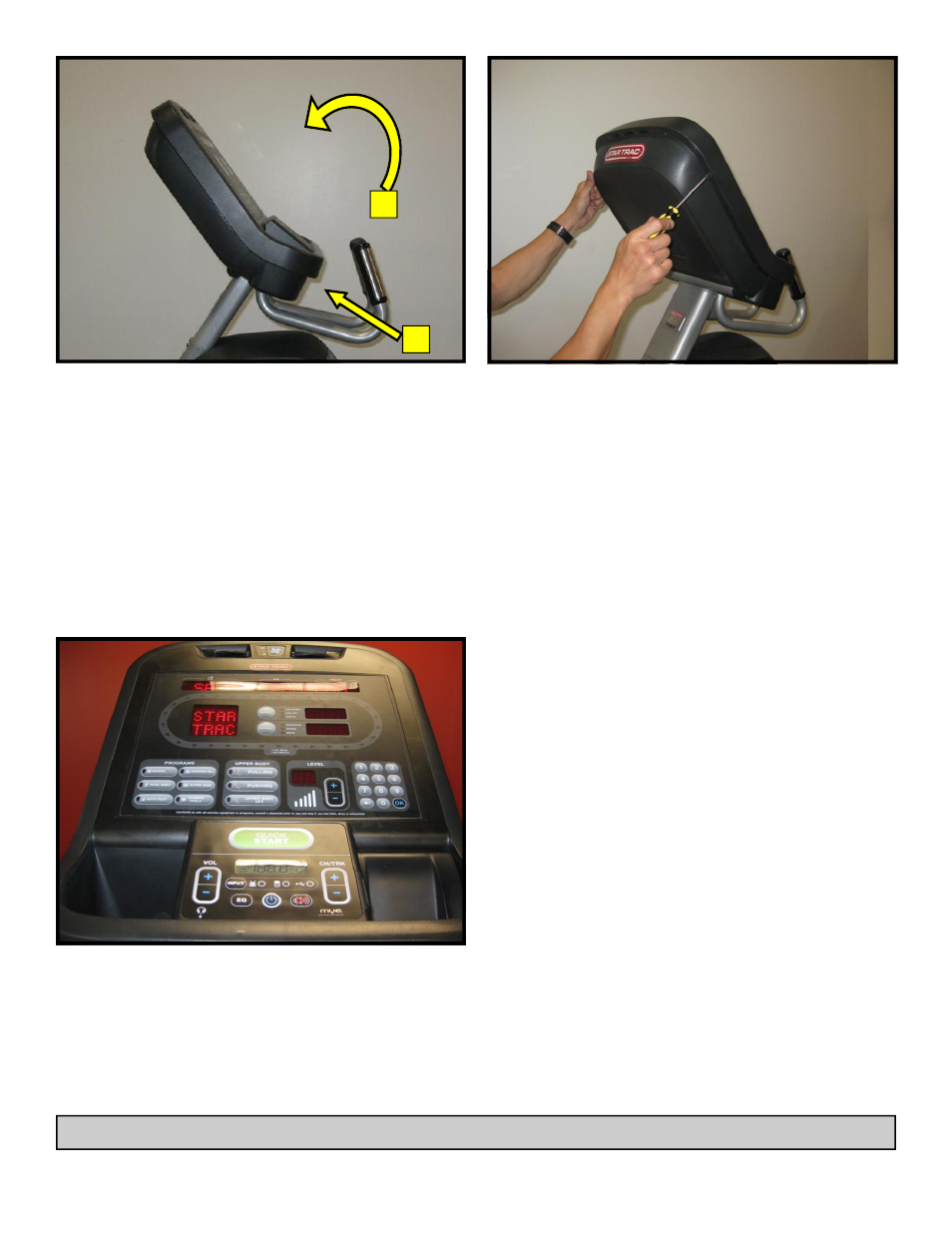

Step 29.
Assemble the front and back display parts to-
gether by sliding the bottom of the front display
under the 2 tabs at the base first, then pressing
front display against the back cover.

Caution: Be careful not to pinch any wires.

Step 30.
Using a Phillips head screw driver, secure the
front display to the back with (8) M4 x 0.7 x
19mm long Phillips head screws.

Step 31.
Turn power on. Perform a visual inspection, and
test the features and functions of the unit prior to
use.

Note: Refer to the User’s Manual for other settings
and instructions.

YOU HAVE NOW COMPLETED THE MYE® CENTER CONSOLE INSTALLATION
