Step 13.

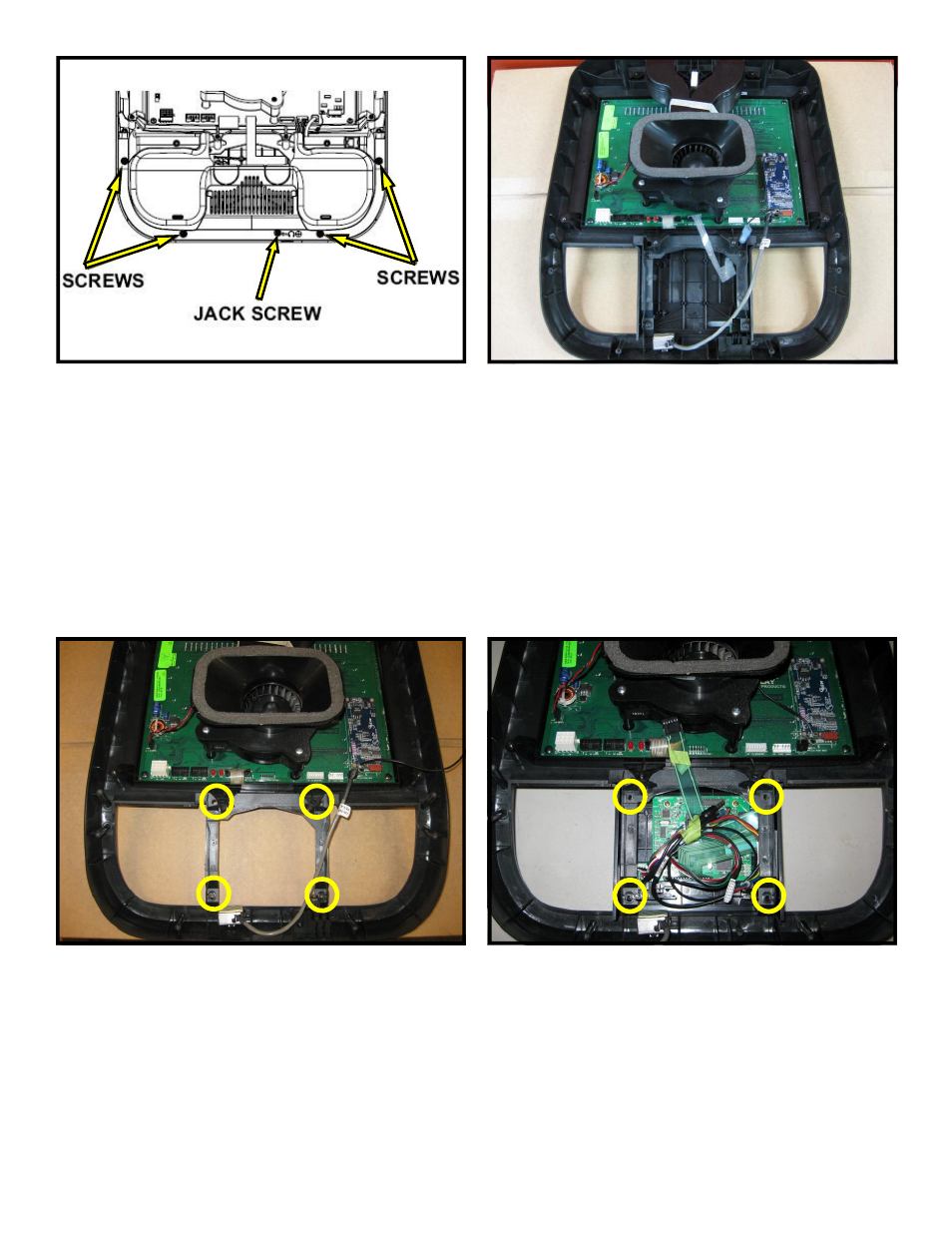

Using a #2 Phillips head screwdriver, remove
the (4) screws that hold the bottom cover of the
display console, then remove the (1) screw that
holds the headphone jack cap.
Note: Retain screws for later use.
Step 14.
Next remove the bottom cover, then remove the
headphone blank cover.
Note: You will no longer need the headphone jack
cover and it can be stored away for any possible
future use.
Step 15.
Using a Phillips head screwdriver, remove the
(4) screws that hold the original center console
in place, then remove the center console.
Note: You will no longer need the center console
and it can be stored away for any possible future
use.
Step 16.
Insert the new center console into the front dis-
play. Using a #2 Phillips screwdriver, screw in
and secure the (4) screws that were saved from
the original center console.
