Star Trac E-TBTe - Manual (Page 28)

29
620-7921 Rev A

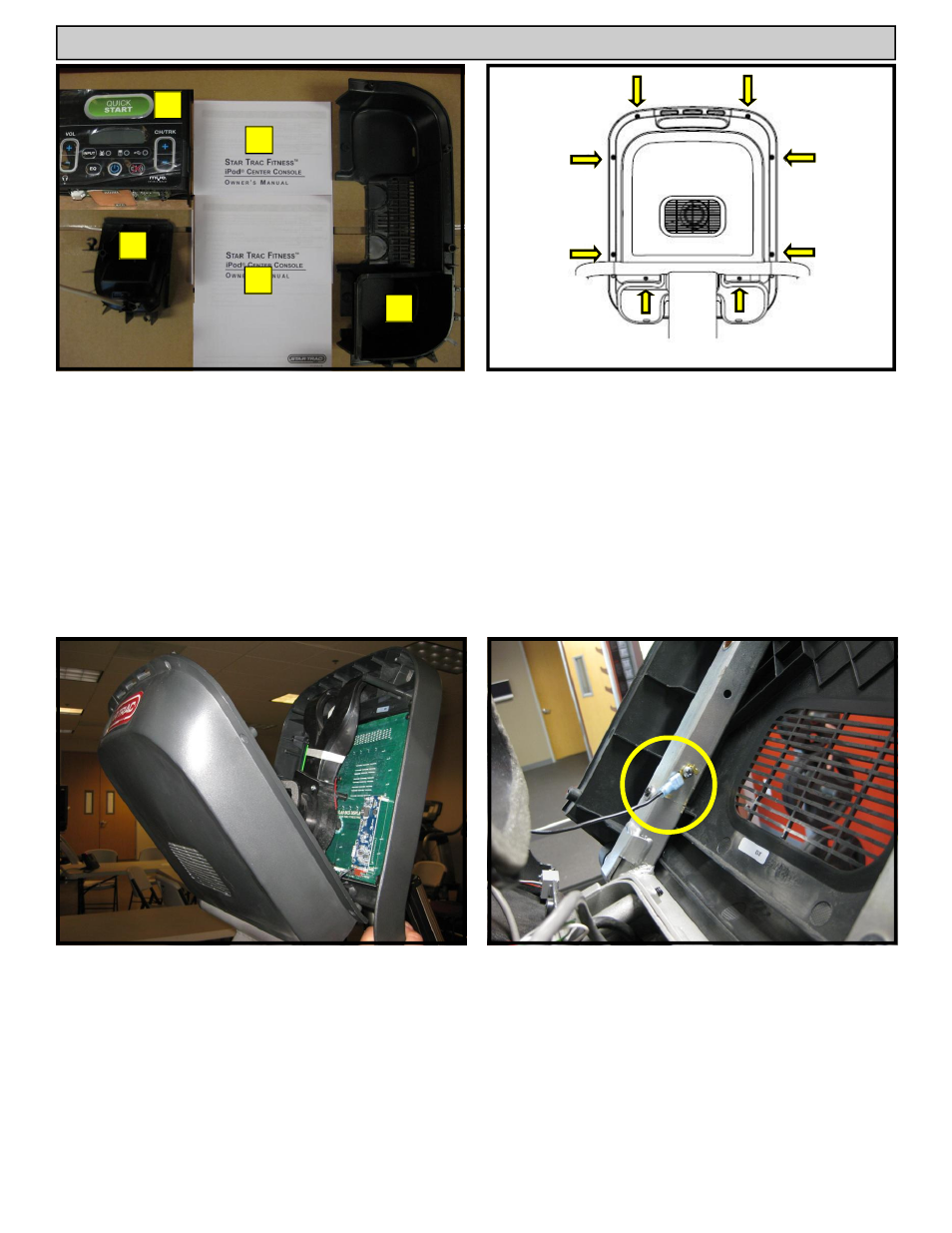

Step 1.
Remove all contents from the packaging and
verify that you have the following parts:
1. MYE® center console.
2. iPod® cradle.
3. iPod® center console owner’s manual.
4. MYE® operation manual.
5. Lower back cover.
Note: If the center console is being installed on a new
unit, then perform this installation prior to mounting the
display assembly onto the frame.
Step 2.
Using a #2 Phillips screwdriver, remove the (8)
screws on the back of the display plastic. Set
the screws aside, you will need them for re-
assembly.
Step 3.
Carefully open the display plastic, so as to not
detach the inner cables from the display.
MYE® ENTERTAINMENT CENTER CONSOLE INSTALLATION INSTRUCTIONS
1
2
3
4
5
Step 4.
Disconnect the ground wire between the heart
rate board and the display mount.
