99-00667-00 B0

Installing the Interactive Whiteboard

21

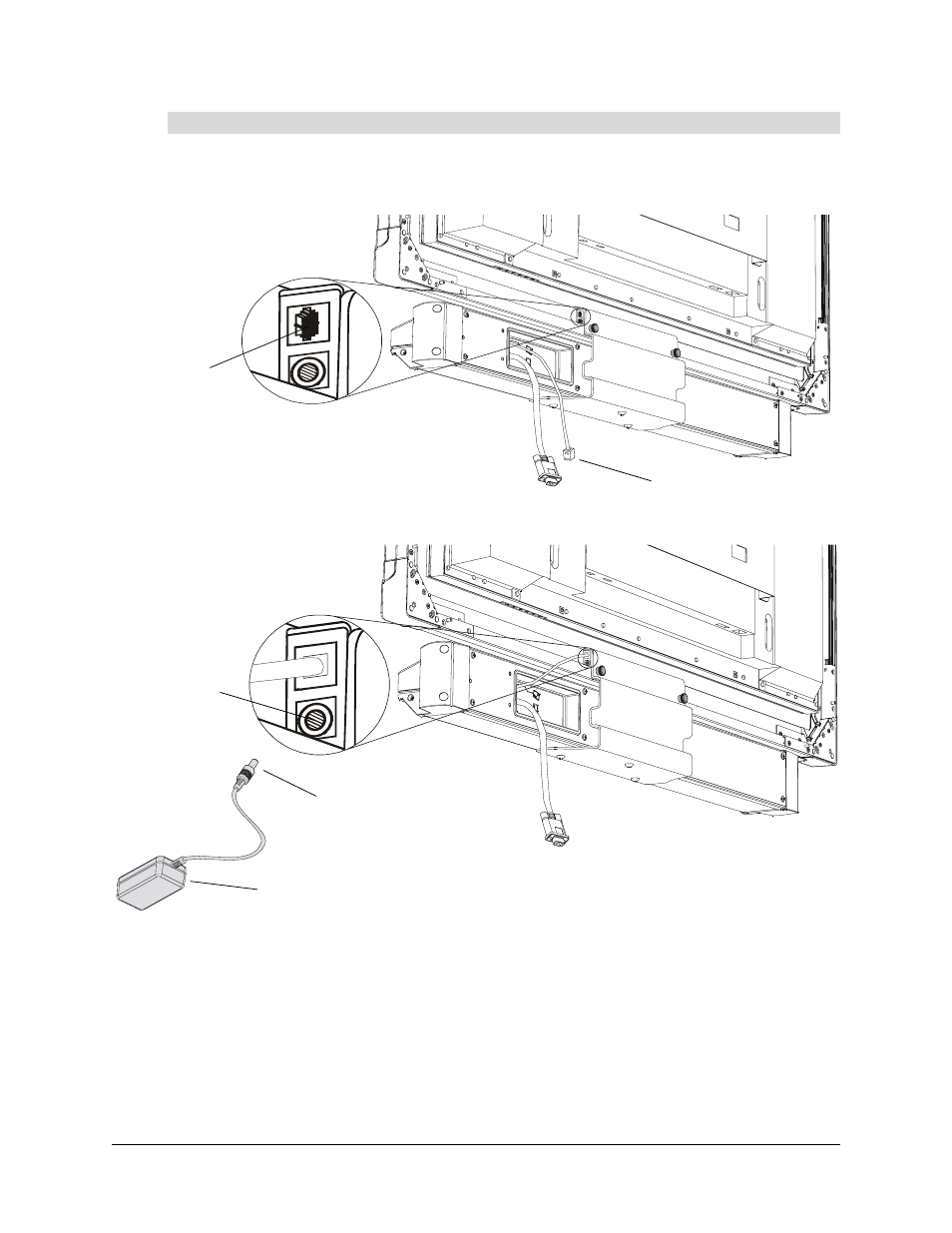

1. Connect the MOD8 cable to the corresponding port on the back of the overlay. You connected

the other end of this cable to either the pen tray or the controller earlier.

2. Connect the power supply connector to the overlay’s power port.

NOTE: The power supply connector doesn’t go all the way in.

To complete the installation

MOD8 Cable

Port

NOTE: Your configuration
may have a controller
instead of a pen tray.

Power Supply

Power Port

Power Connector

NOTE: Your configuration
may have a controller
instead of a pen tray.
