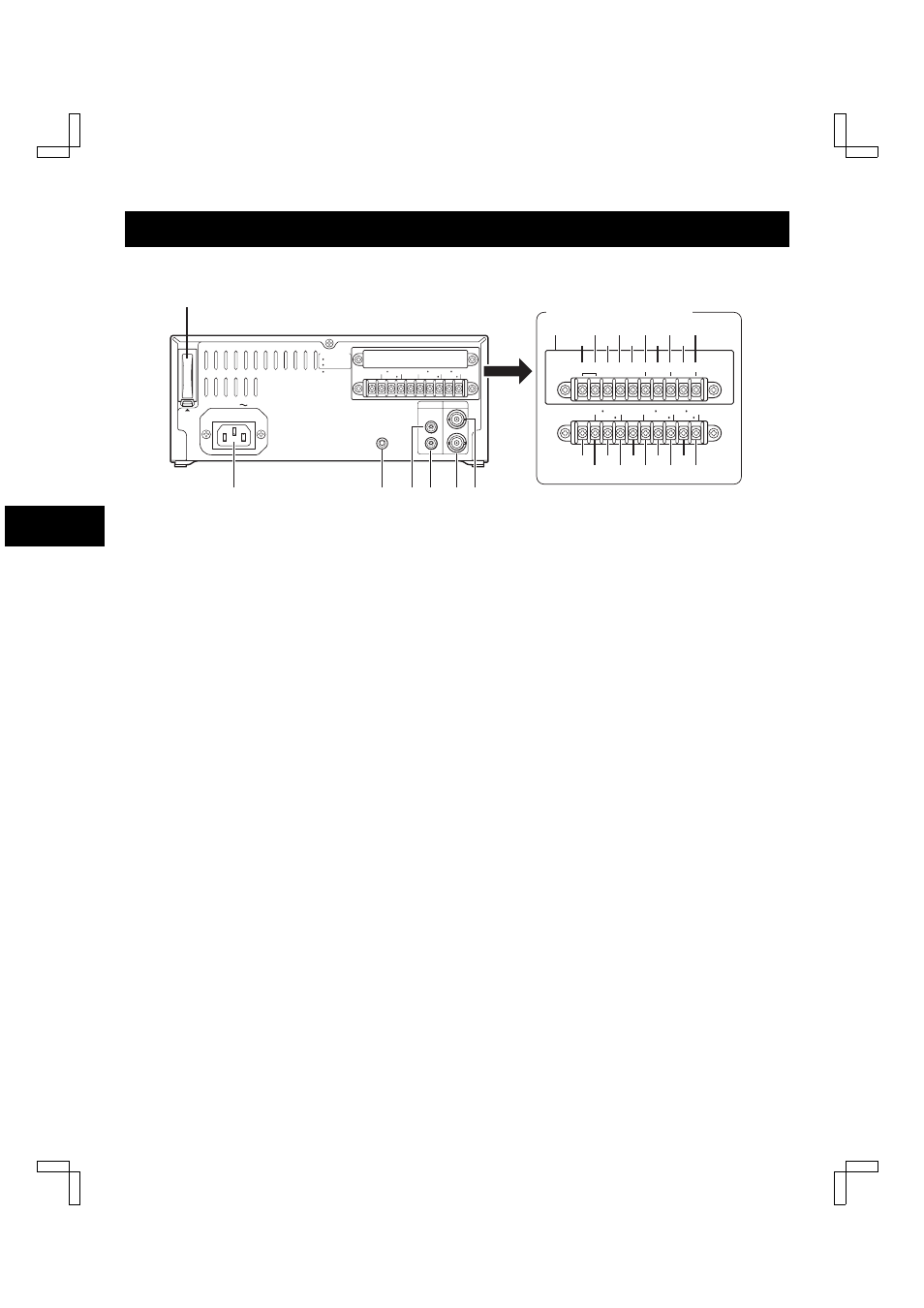

LOCATIONS OF CONTROLS AND INDICATORS
Back Panel (SRT-4040 only)
1
Battery compartment
2
ALARM IN (alarm trigger input) terminal
1 SHOT IN (single image recording trigger input)
terminal
3
CONTROL IN terminal
4
SERIES IN (series recording trigger input) terminal
5
EXT TIMER IN (external timer trigger input) terminal
ALARM REST IN (alarm recording reset input)
terminal
6
COM terminal
7
WARNING OUT (warning output) terminal
œ Signals are output when an alarm, clog detection,
video loss, non-recording or mechanism problem
occurs.
8
CONTROL OUT terminal
9
TAPE END OUT (tape end output) terminal
F
TIMER OUT (timer recording output) terminal
G
SW OUT (switch output) terminal
H
VIDEO IN (video input) jack
I
VIDEO OUT (video output) jack
J
AUDIO OUT (audio output) jack
K
AUDIO IN (audio input) jack
L
REMOTE (remote control input) jack
M
AC power input
1
RS-485 interface board (sold separately)
A
SHORT FOR TERMINATION terminal
B
SHORT FOR TERMINATION terminal
C
Do not use
D
Do not use
E
COM terminal
F
RS485 A terminal
G
RS485 B terminal
H
COM terminal
I
RS485 A terminal
J
RS485 B terminal
NOTES:
œ The above illustration shows the unit when the
RS-485 interface board is installed. If no RS-485
interface board is installed, connectors and switches
A through to J do not appear.
œ The terminal may be damaged by a torque of 0.49
N.m (5kg.cm) or more and by using screwdriver with a
tip with a diameter of 6 mm or more.
œ The 3 , 4 , 8 and F terminals can be used to select
the input and output signals. (Refer to “SELECTING
INPUT AND OUTPUT TERMINALS” on page 38.)
œ If using the 3 and 8 terminals, multiple VCRs can be
operated by operating a single VCR. (Refer to
“SYNCHRONIZATION CONTROL” on page 40.)
AUDIO VIDEO
OUT
OUT
IN
IN
REMOTE
OPEN COLLECTOR
ALARM(1 SHOT)IN SERIES IN 3 COM CONTROL OUT 3
CONTROL IN 3 WARNING OUT 1 EXT TIMER (ALARM RESET) IN TAPE END OUT 2 SW OUT
TIMER OUT 3
1=500mA(Max.)
2= 50mA(Max.)
AC IN
PUSH
OPEN
ALARM(1 SHOT)IN SERIES IN 3
SHORT FOR
TERMINATION.
COM
COM
COM RS485 A RS485 B
RS485 B RS485 A
CONTROL OUT 3
CONTROL IN 3 WARNING OUT 1 EXT TIMER
(ALARM RESET) IN TAPE END OUT 2 SW OUT
TIMER OUT 3
1
M L
3
B
G
J
F
I
8
G
6
E
4
C
2
A
1
9
H
7
F
5
D
I J K H
With the RS-485 interface board
3=SEE MANUAL
NB4QR/NA (SRT-4040 GB) Tue. Sept., 10/2002
English
7
