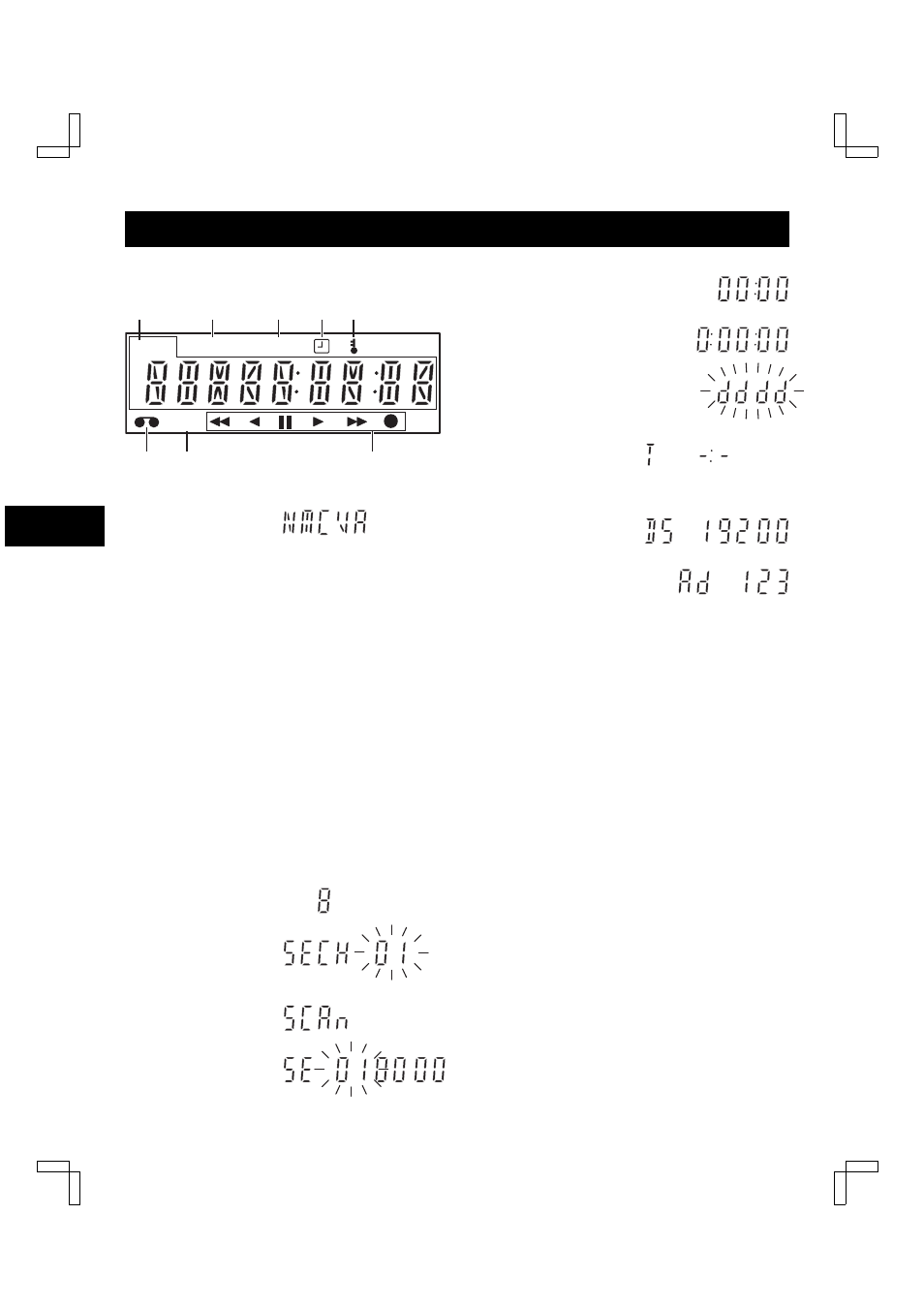

LOCATIONS OF CONTROLS AND INDICATORS
Digital Display
1
Mode display
œ Warning display
N flashes: Mode changed to non-recording
mode while recording was in progress.
M flashes: Problem with mechanism.
C flashes: Clog detection has occurred.
V flashes: Video loss has occurred.
A flashes: Alarm recording in progress.
When alarm recording finishes, AL
lights.
AL flashes during alarm recording.
NOTES:
œ The warning details appear according to the
(WARNING OUT/CONTROL SET) menu
setting.
œ The warning display has priority over other
types of display. (Refer to “WARNING OUT
Terminal” on page 46.)
œ To cancel the display press the STOP button.
œ Recording/playback
speed mode
œ Alarm search
setting display
œ Alarm scan setting
display
œ Day/Time search
setting display
œ Time display (No tape)
œ Linear time counter
display (Tape inserted)
œ Dew display
œ Tracking control
display
[With the RS-485 interface board]
œ Data transfer speed
setting display
œ Address setting display
2
Power failure indicator P
Lights after a power failure.
NOTE:
œ To cancel the “P” display, press the MENU
RESET button.
3
External input indicator
Lights when recording using the EXT TIMER IN
input terminal.
4
Timer Recording indicator
Lights when in timer recording stand-by mode, or
during a timer recording.
5
Security lock indicator
Lights when the security lock is engaged.
M E P T/D AL
OFF
2 3
6 8
5 1
7
4
AL
AL
AL
T/D
