OUTPUT TERMINALS

REMOTE Jack

Remote control of the VCR is possible by connecting a
remote controller with a circuit such as indicated below,
to the REMOTE jack.

NOTES:

œ

Use a 3.5 mm mini-jack type plug.

œ

The connection should be done using a shielded
cable no more than 5 meters long.

œ

The functions not available on the VCR will not
operate.

œ

You can use a VA-RMN01 Remote Control Unit (sold
separately) to control the VCR remotely. The
functions not available on the VCR will not operate.

Remote control setting

The remote control switch 7 (see illustration at left) can
be set to either eject the tape or access the menus.

1

Press the MENU button to display the MAIN MENU.

2

Press the

l

(or

j

) button to select the “3.GENERAL

SET” line, then press the ENTER button.

ø

The (GENERAL SET) menu appears.

TAPE@IN@MODE@@@@@STOP

TAPE@END@MODE@@@@REW

CLOCK@ADJUST@@@@@01:00

THREAD@CHECK@@@@@N

VIDEO@LOSS@@@@@@@N

CLOG@DETECT.@@@@@N

REMOTE@@@@@@@@@@@MENU

VIDEO@@@@@@@@@@@@COLOR

VERTICAL@SYNC@@@@Y

TAPE@@@@@@@@@@@@@T-160

3

Press the

l

(or

j

) button until the “REMOTE”

setting is highlighted, then press the ENTER button.

4

Press the

l

(or

j

) button to select the desired

switch mode, then press the ENTER button.

MENU . . . . . Switch operates as an MENU

button

EJECT . . . . . Switch operates as an EJECT

button

5

Press the MENU EXIT button.

SW0: EJECT

R0 1.2K

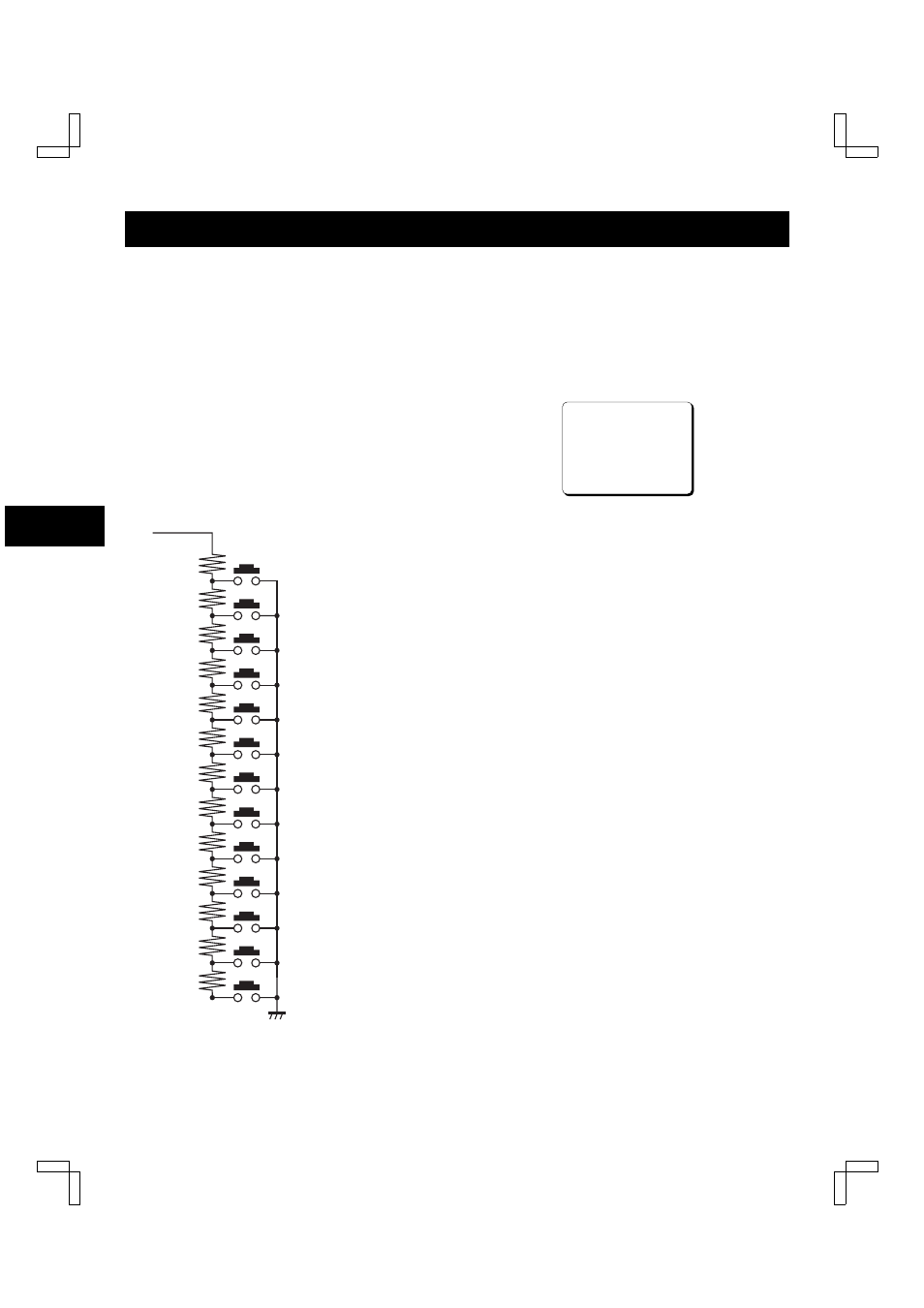

Remote control circuit

The resistance tolerance is
2% or less.

SW2: STILL/PAUSE

SW3: REW

SW4: FF

SW5: PLAY

SW6: REC

SW7: MENU (or EJECT)

SW8: Do not use

SW1: STOP

SW9: Do not use

SW10: REC/PLAY SPEED

l

SW11: SHIFT

]

SW12: SHIFT

«

R2 0.43K

R3 0.51K

R4 0.62K

R5 0.75K

R6 0.91K

R7 1.1K

R8 1.3K

R1 0.3K

R9 2.0K

R10 2.4K

R11 3.6K

R12 5.6K
