Set the V shift amount within 1/2 screen. If it exceeds 1/2 screen, the zoom is changed, the image position
may not be positioned at same place.
Check if the V shift amount exceeds 1/2 screen in the following procedure.
When the V shift amount exceeds 1/2 screen, perform the adjustment.
In the case that the V shift is lowered.
How to Check
. When the image is expanded by zoom, the upper end of image position is lowered.
How to Adjust
. Adjust the V shift so that the upper end of image position remains unchanged when the image is expand-
ed by zoom.

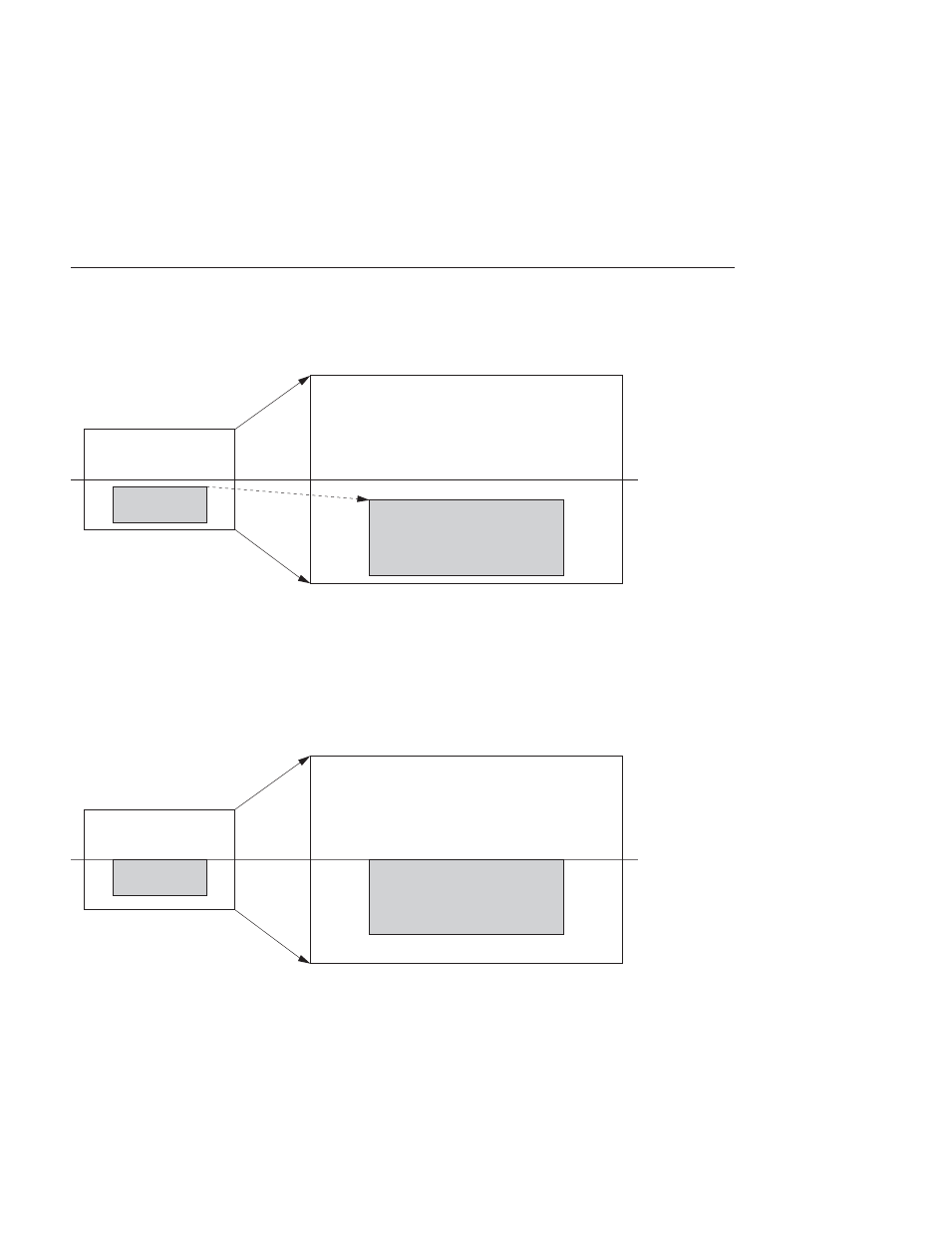

Effective area of lens
Effective area of lens
Center of lens
Fig. 2-4c
Effective area of lens
Effective area of lens
Center of lens
Fig. 2-4d
