Sony KP 51HW40 - Manual

DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT:
KP-51HW40
47" x 51 1/2" x 24 7/8"
POWER
REQUIREMENTS:
POWER
CONSUMPTION:
120V AC
60Hz
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
51" Hi-Scan
Projection TV
168 Lbs (approx.) 250w(max)
1w(stby)
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 986 3062 • b2b.sel.sony.com

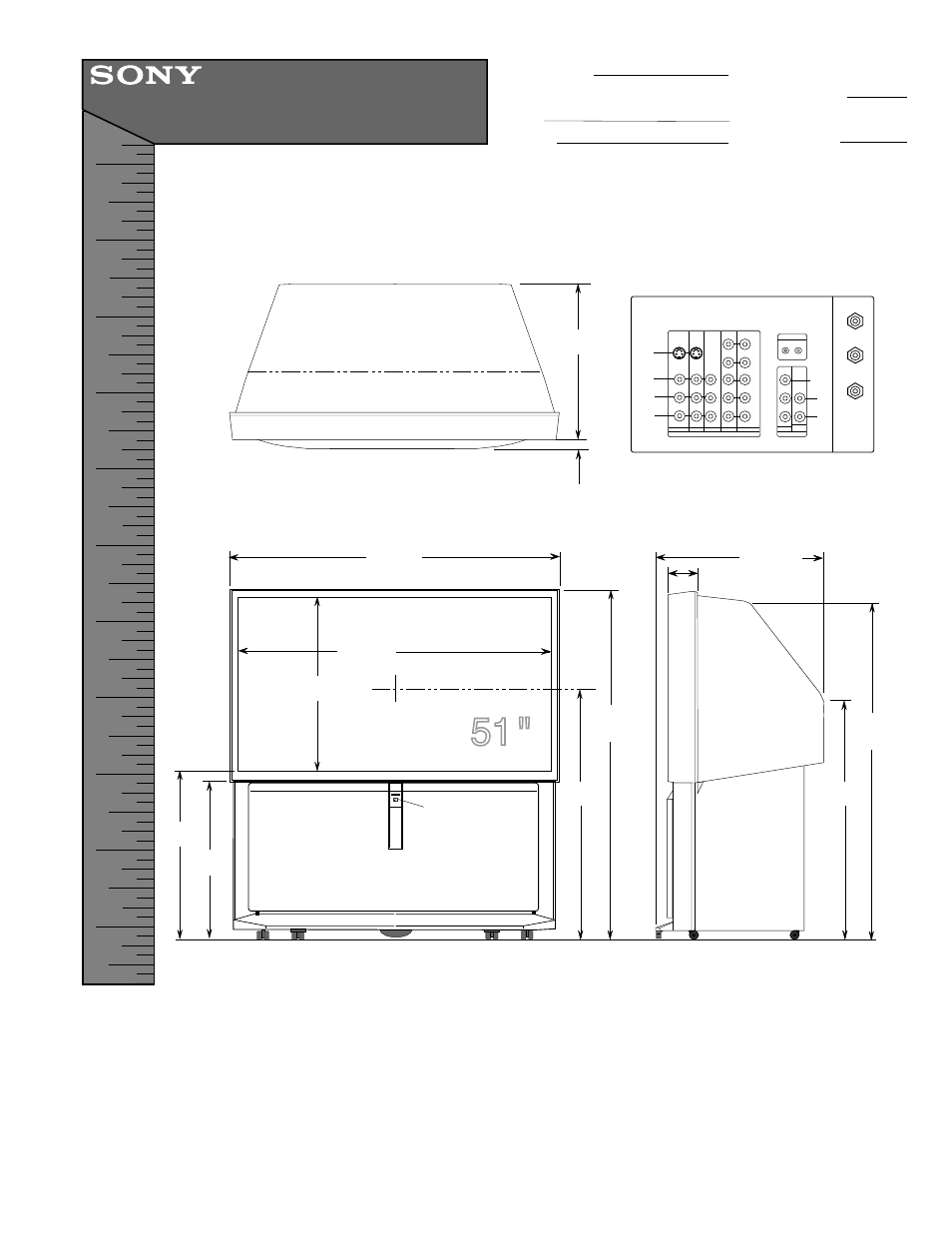

TOP VIEW
25 1/4"
FRONT VIEW
37 3/4"
51 1/2"
Ir Receiver
under Power
button
44 1/2"
25"
47 "
22 5/8"
2 1/4"
34"
49 1/2"
4 1/8"
24 7/8"
23 3/4"
SIDE VIEW
AUX
VHF/UHF
Video
Audio
S-
Video
IN
Video 1 Video 3
Y
Pr
Pb
L
MONO
R
Audio
L
MONO
R
Video
Video 4 Video 5 Video 6
Control S
IN OUT
OUT
TV OUT AUDIO
Fix/Var
CONV
JACK PACK
R
RM-Y909 REMOTE CONTROL
51 "
