1-18
SRX-T420
LKRI-005
B3 x 8
Finger holder (DIF)
Panel (DIF-188)
LKRI-005
B3 x 8
Fixed plate (DIF) 320
Handle
Handle
PSW4 x 10
PSW4 x 10
Panel cover (IF) 420
Blank panel

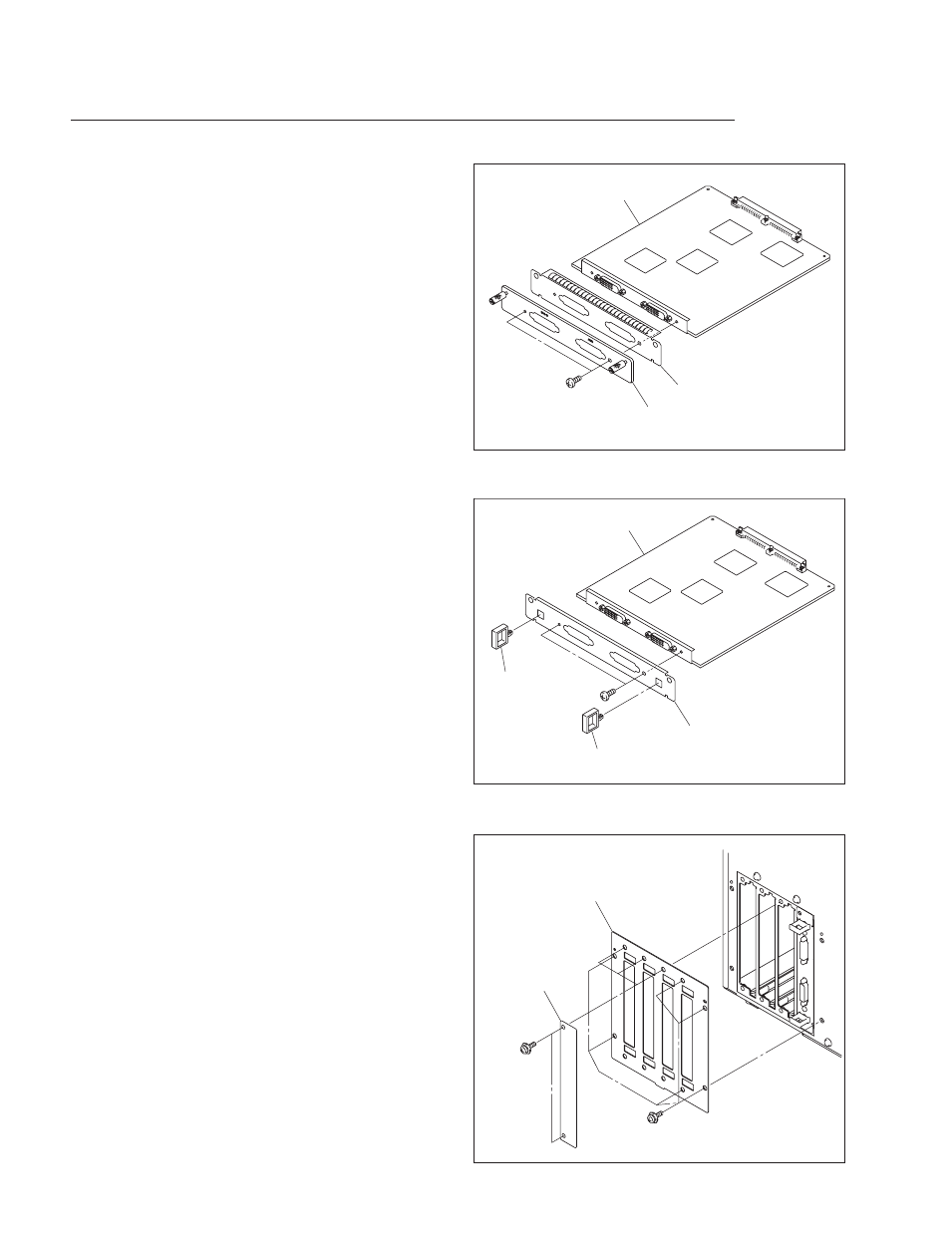

Fig. 1-7e
Fig. 1-7f
Fig. 1-7g
Procedure (LKRI-005)
1. Remove the two screws, then remove the panel
(DIF-188) and fi nger holder (DIF).
2. Attach the fi xed plate (DIF) 320 using the two screws
removed in step 1.
3. Attach the two handles to the fi xed plate (DIF) 320.
4. Remove the six screws, then remove the all blank
panels.
n
Store the removed blank panel.
5. Remove the six screws, then remove the panel cover
(IF) 420.
