Sanyo ECO R410A User Manual

Page 6

background image

6

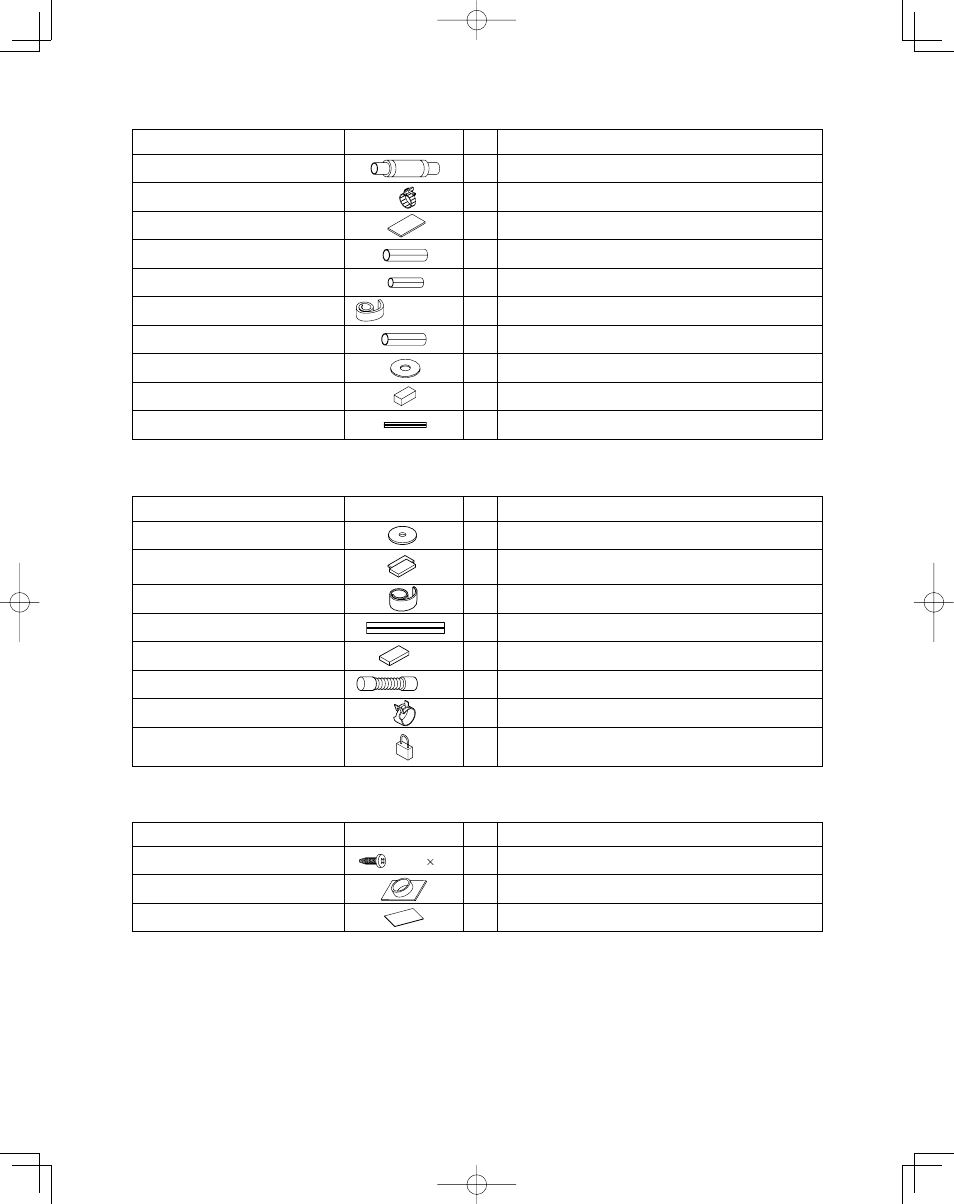

Table 1-1 (Concealed Duct)

Table 1-2 (Slim Concealed Duct)

Table 1-3 (Wall-Mounted)

●

Use M10 or 3/8" for suspending bolts.

●

Field supply for suspending bolts and nuts.

Part Name

Figure

Q'ty

Remarks

Drain hose

1

For securing drain hose

Hose band

1

For securing drain hose

Packing

1

For drain joint

Drain insulator

1

For drain joint

Flare insulator

1

For liquid tube

Insulating tape

2

For gas and liquid tubes flare nuts

Flare insulator

1

For gas tube

Washer

8

For suspending indoor unit from ceiling

Sealing putty

1

For sealing recessed portion of power supply

Vinyl clamp

8

For flare and drain insulators

White
(heat-resisting)

Part Name

Figure

Q'ty

Remarks

Washer

8

For suspension fitting

Flare insulation

2

set

For gas / liquid tube connection

Insulation tape

2

For gas / liquid tube / flare nut connection

Vinyl tie

8

For flare / drain insulating connection

Drain hose insulation

1

For drain tube connection

Drain hose

1

For unit & PVC tube connection

Hose band

2

For drain hose connection

Short circuit connection

1

For high static pressure
(Located on the back of the electrical component box lid.)

T3
T5

T10

L140

Part Name

Figure

Q'ty

Remarks

Tapping screw

10

For fixing the rear panel

Plastic cover

1

For improved tubing appearance

Insulator

1

For insulating flare nut

5/32" 1"
