Sanyo ECO R410A - Manual (Page 29)

29

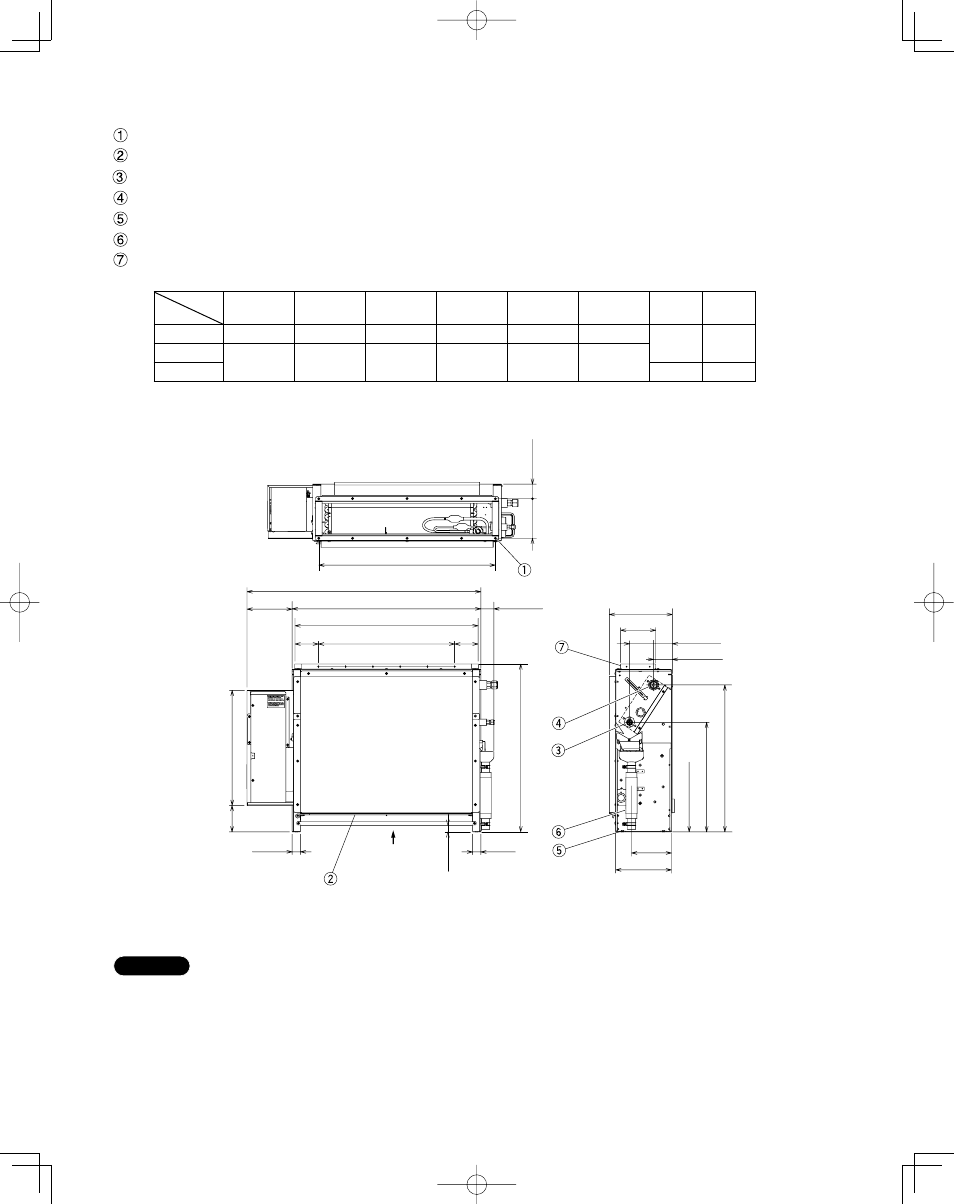

Concealed Floor-Standing Type (FM Type)
4- Ø 15/32" holes (for fastening the indoor unit to the floor with screws)
Air filter
Refrigerant connection outlet (liquid tube)
Refrigerant connection outlet (gas tube)
Level adjusting bolt
Drain outlet (20 A)
Flange for air-outlet duct
A B C D E F
Liquid
tube
Gas
tube
7, 9, 12 35-19/32 27-1/4 26-29/64 26-3/16 19-11/16 3-25/64
Ш 1/4 Ш 1/2
15, 18
47-63/64 39-41/64 39-29/64 38-37/64 35-7/16 2-1/64
24 Ш 3/8 Ш 5/8
Type
Length
Unit : in.
NOTE
Make an opening in the housing of the unit so that maintenance service can be peformed on the electrical component
box, air filter, refrigerant tubing connection, and drain pipe.
Fig. 3-61
Unit: in.
5-25/32
8-5/64
2-19/32
4-59/64
9-1/64
6-7/64
10-15/64
15-53/64
21-7/32
F
1-3/16 1-3/16
F
1-26/32
E (Hole Pitch : 3-15/16)
Air outlet
C (Internal dimension)
A
B 6-17/32
(15/16)
24-1/4 16-21/32
3-51/64
Air inlet
D
3-15/16
2-13/64
