28
Floor-Standing Type (F Type)
Concealed Floor-Standing Type (FM Type)
3-25. Required Minimum Space for Installation and Service
Install the unit where cooled or heated air from the unit can cir-
culate well in the room. Do not put obstacles which may obstruct
the air flow in front of the air intake and outlet grilles.
NOTE
Ensure there is adequate space for maintenance of the electrical
component box, air filter, and refrigerant tubes.

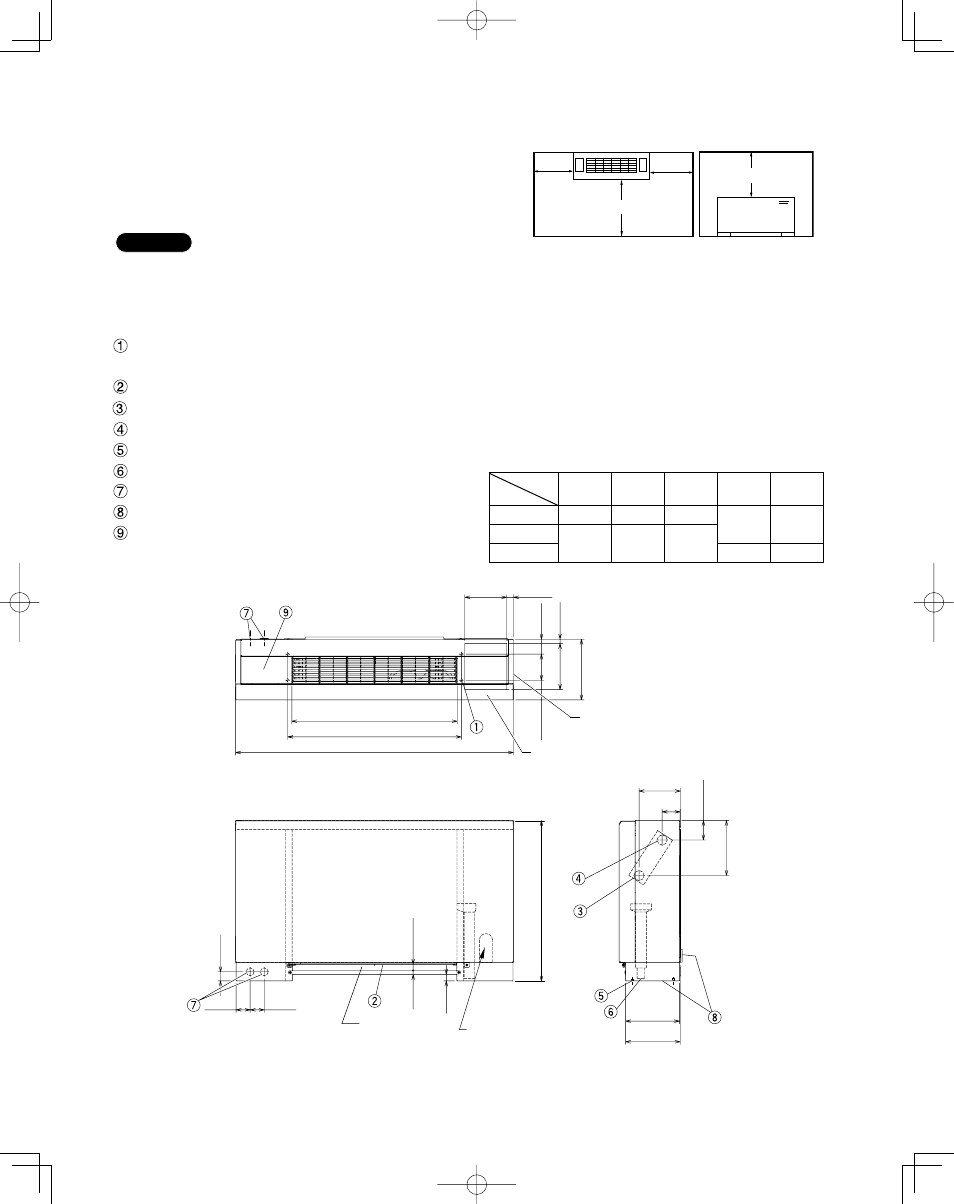

3-26. Dimensions and Part Names
Floor-Standing Type (F Type)
4- Ø 15/32" holes (for fastening the indoor unit to the floor
with screws)
Air filter
Refrigerant connection outlet (liquid tube)
Refrigerant connection outlet (gas tube)
Level adjusting bolt
Drain outlet (20 A)
Power cord outlet (downward, rear)
Refrigerant tubing outlet (downward, rear)
Location for mounting the remote controller
(remote controller can be attached within the room)
■
min.
3-15/16"
min. 3.3 ft.
min.
3-15/16"
min. 3.3 ft.
Horizontal view Vertical view
Fig. 3-59
Fig. 3-60
Side panel C
6-11/32
9-17/64
2-1/8 2-1/8
8-5/32
8-17/64
2-23/32
1-1/32
2-1/4
24-7/32
3-15/16
6-31/32
2-61/64
19/32
(59/64)
1-3/8
63/64
8-5/16
9-5/32
19/32
B
A
Air inlet
Air outlet
Rear-tube outlet
Refrigerant tubing space for
downward tubing
A B C
Liquid
tube
Gas
tube
7, 9, 12 41-59/64 26-3/16 24-7/8
Ш 1/4 Ш 1/2
15, 18
54-21/64 38-37/64 37-9/32
24 Ш 3/8 Ш 5/8
Type
Length
Unit : in.
