Care and Cleaning (continued)

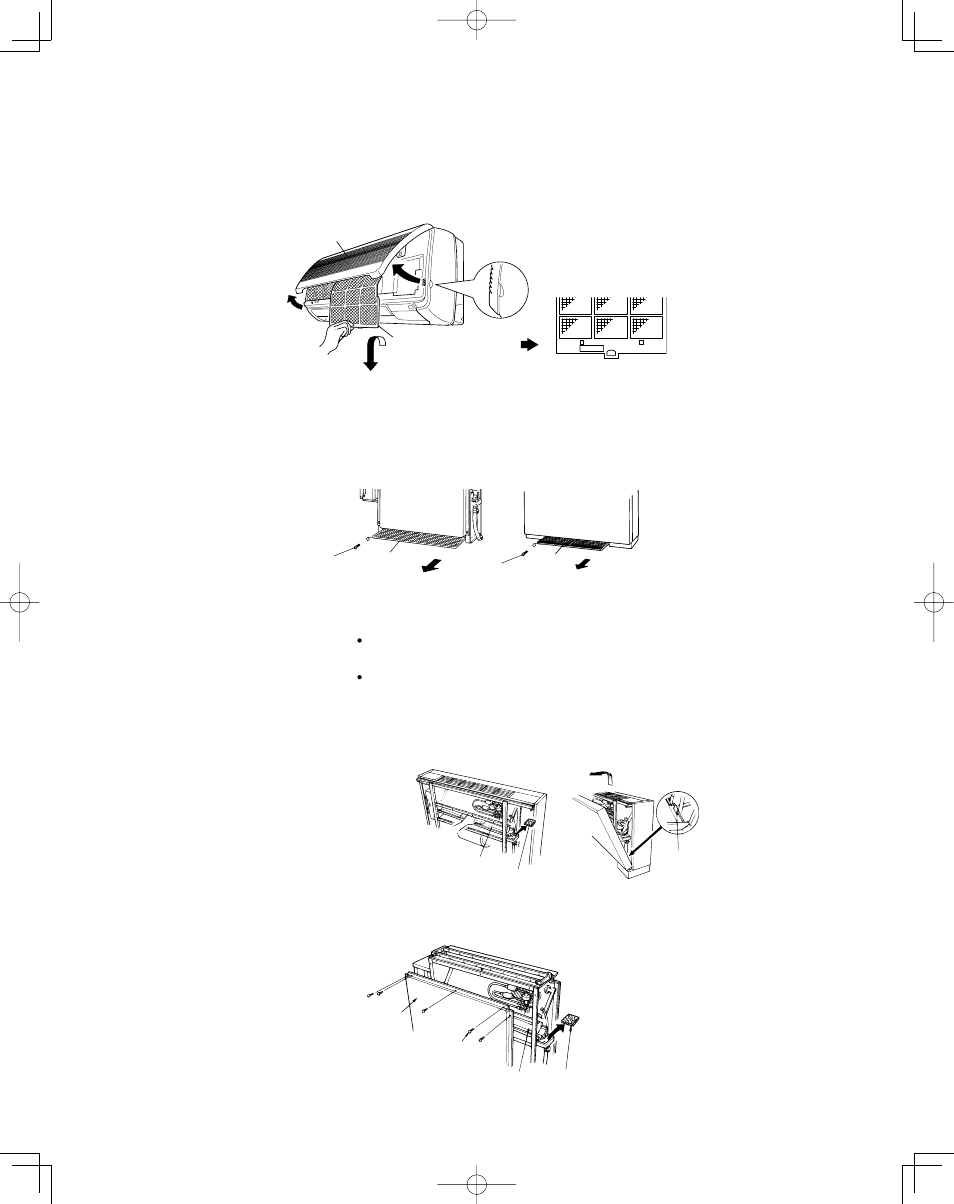

How to remove the filter

Wall-mounted type 1.

Move the flap on the air outlet grille to its lowest position with the remote control unit.

(K): 2.

The filter is disengaged by pushing the tab up gently. Hold the air filter by the tab at the bot-

tom, and pull downward.

■

When replacing the filter, make sure that the FRONT mark is facing you. Push it up until you

hear it click back into position.

(Concealed) Floor standing type 1.

Remove the screw at the bottom left of the front panel using a Phillips head

(F, FM):

screwdriver. (Be sure to replace the screw when cleaning is finished.)

Remove the filter by pulling it toward you.

Cleaning the drain filter

and drain pan

Floor standing type (F) 1. Remove the front panel

Remove the 2 screws fixed to the bottom of the front panel before opening the panel.

Open the front panel with a lifting motion to detach the latch.
Disengage the dew-prevention heater from the lead-wire connector.
Refer to " 3-27 Removing and Attaching the Front Panel ".

2. Cleaning

Remove any dirt accumulated in the drain pan, and then wipe it clean.

Also, clean the drain filter in the same way as the air filter.

Concealed Floor standing type

Remove the screws, open the front panel, and then remove any dirt accumulated inside

(FM)

the drain pan and wipe it clean. Also, clean the drain filter in the same way as the air

filter.

Air filter

FRONT

Air intake grille

Screw

Air filter

Screw

Drain pan

Drain filter

Latch

Front panel

Screw

Drain pan

Drain filter

(1) Push up

Then

(2) Pull down
