Digital Video Recorder User Manual
50
STEP1 Click button to enter the Remote Lock window, as Fig4.8 Remote Lock.
STEP2 Select the time and record type.
STEP3 Select the camera.
STEP4 Click "Select Event" button, system find the corresponding event and it will pop up the LOCK EVENT window
which is shown as Fig4.9 Lock Event.
STEP5
Select the check box can change the lock status.
Lock Status shows ‘ ’ to indicate that the event is locked, otherwise it means unlock.
STEP6 Click "OK" button to confirm the operation in the Lock Event interface.
4.4 Remote DVR Configuration
Click button in the Main Interface to enter the following interface which is shown as Fig4.10 Remote DVR
Configuration.

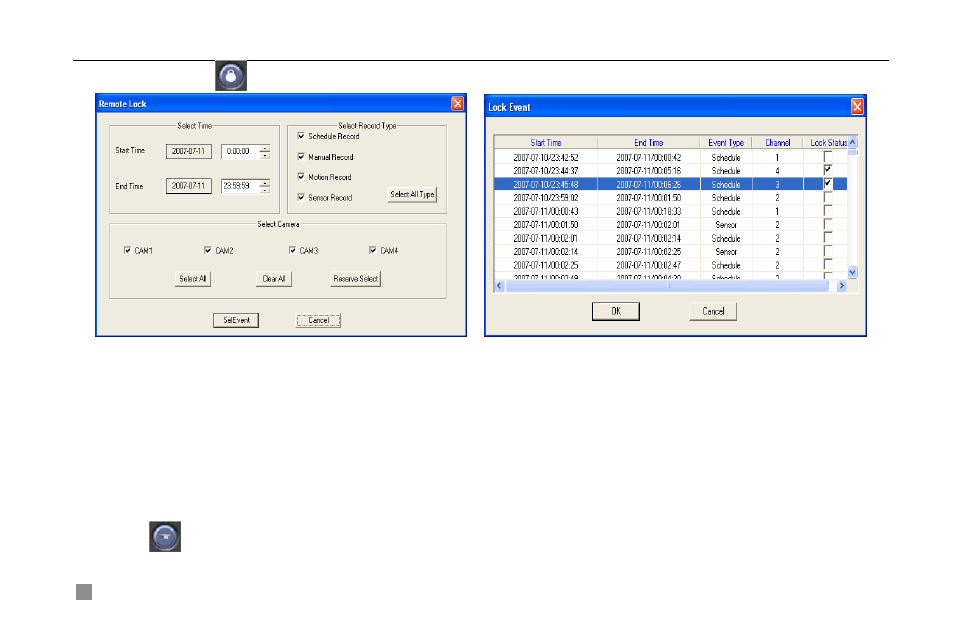

Fig4.8 Remote Lock Fig4.9 Lock Event
