Swann P-6T4 - Manual (Page 16)

Digital Video Recorder User Manual
12
3.2.1 Basic Configuration
Basic Configuration menu is shown as Fig3.4 Basic Configuration.
1. VIDEO FORMAT
After you enter the Basic Configuration menu, you need to set the video format. There are two options to choose: NTSC
and PAL.
STEP1 Press "Up", "Down", "Left" and "Right" buttons to move the cursor manually.
STEP2 Press "Enter" key to change the video format.
2. TIME POSITION
You could set position of displaying time. There are three options to choose:
•
TOP: Time is displayed on top of the screen.
•
BOTTOM: Time is displayed at the bottom of the screen.
•
NO: Do not display time on the screen.
3. DVR NAME
You could set DVR name. Range for inputting the words contents letters from ‘a’ to ‘z’ and numbers from ‘0’ to ‘9’.
STEP1 Press "A" button to switch the inputting mode

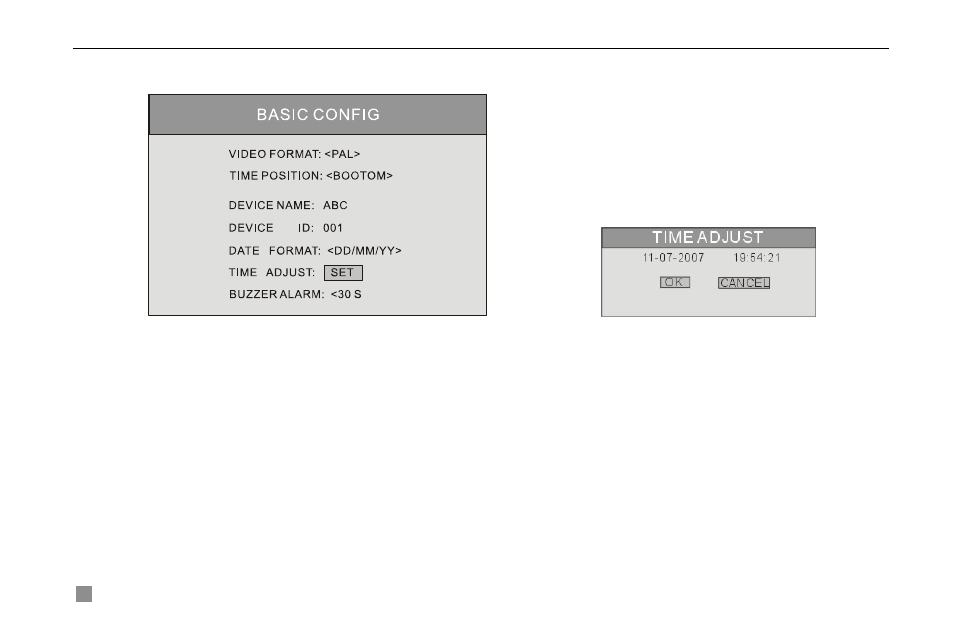

Fig3.4 Basic Configuration Fig3.5 Time Adjust
