3.2.5 PTZ Configuration
PTZ Configuration menu is shown as Fig3.14 PTZ Configuration.
1. CHANNEL
Switch to the channel which connects to the Speed Dome.
2. BAUDRATE
There are five options of baudrate to choose: 1200, 2400, 4800, 9600 and 19200.
3. PROTOCOL
Choose the PTZ protocol. Currently support protocol: PELCO_D, PELCO_P, MINKING, NEON, STAR, VIDO, DSCP,
VISCA and LILIN.
4. ADDR
Set the PTZ address. Press "Enter" key and use the number key, "+" and "-" button to set it.
5. PRESET
STEP1
Press "SET" button to enter the Preset submenu which is shown as Fig3.15 Preset. There are 16 Presetting
Points which could be set in every channel.
STEP2
In the Preset submenu, press "Enter" button to switch the Presetting Point which needs to be reset.
STEP3 Press "ADJUST" button to enter the PTZ mode.
STEP4 On the front panel, press "ZOOM", "FOCUS", "SPEED", "IRIS", "+" (MENU) and "-" (PTZ) buttons to modify
position of the Presetting Point.
STEP5
Press "UP", "DOWN", "RIGHT" and "LEFT" buttons to rotate the Speed Dome.

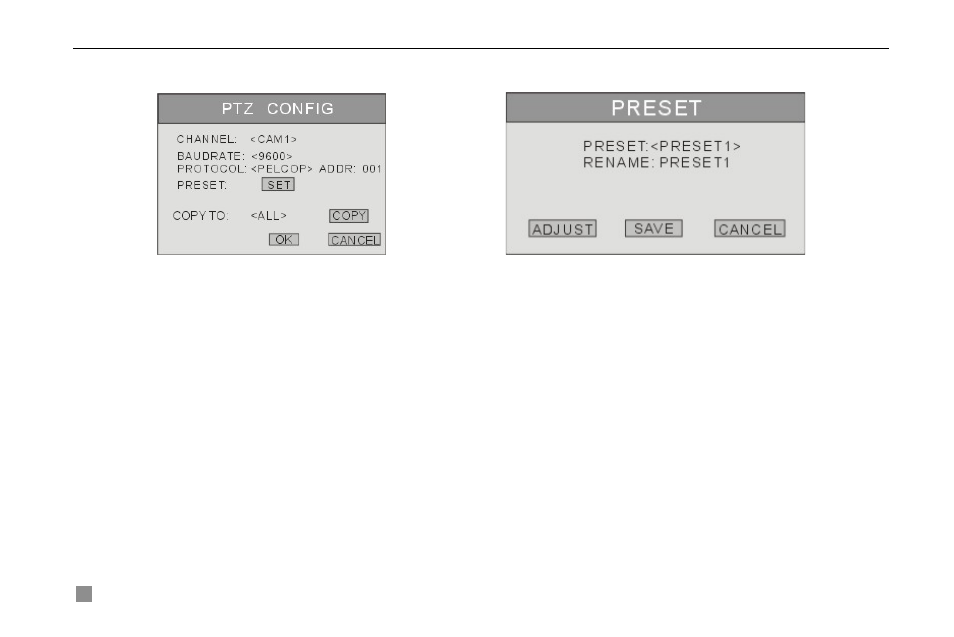

Fig3.14 PTZ Configuration Fig3.15 Preset
