Digital Video Recorder User Manual
25
BASIC CONFIGURATION

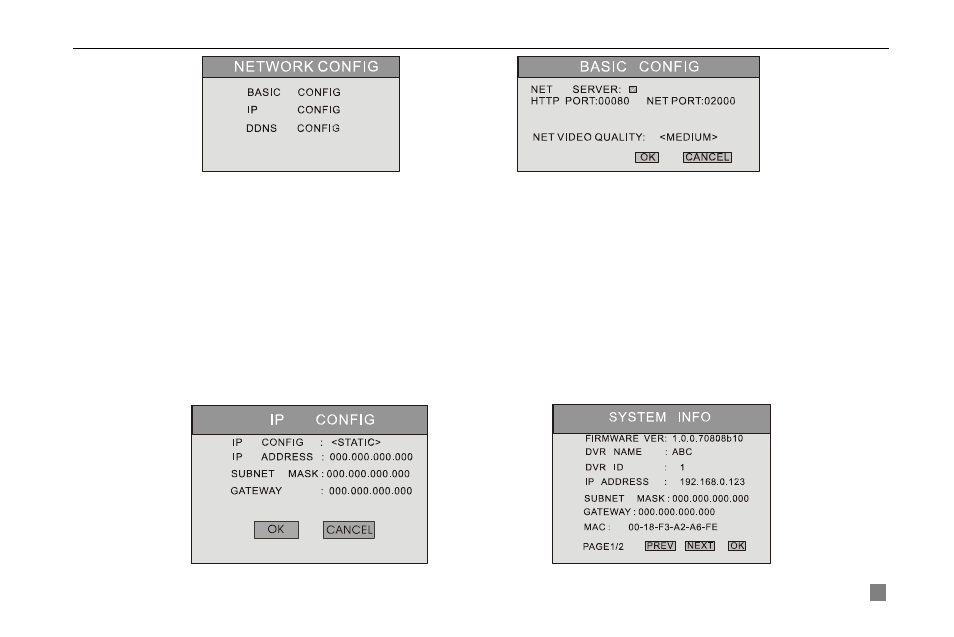

Basic Configuration submenu is shown as below Fig3.19 Basic Configuration.
STEP1
Press "Up", "Down", "Left" and "Right" buttons to move the cursor.
STEP2
Press "Enter" key to enter the Basic Configuration menu.
1. NET
SERVER
If you select the check box and set the port number of the server, you would make the NET SERVER enable.
2.
NET VIDEO QUALITY
It sets picture quality of remote surveillance. There will be three options to choose: low, medium and high. The higher
quality value is, the picture is clearer.
IP CONFIGURATION
IP Configuration submenu is shown as Fig3.20 IP Configuration.
Fig3.20 IP Configuration
Fig3.21 System Information
Fig3.18 Network Configuration
Fig3.19 Basic Configuration
