2-4 Other Settings Using the "VN-C625U Setup Tool" (6. Motor Limit Setting)
1.

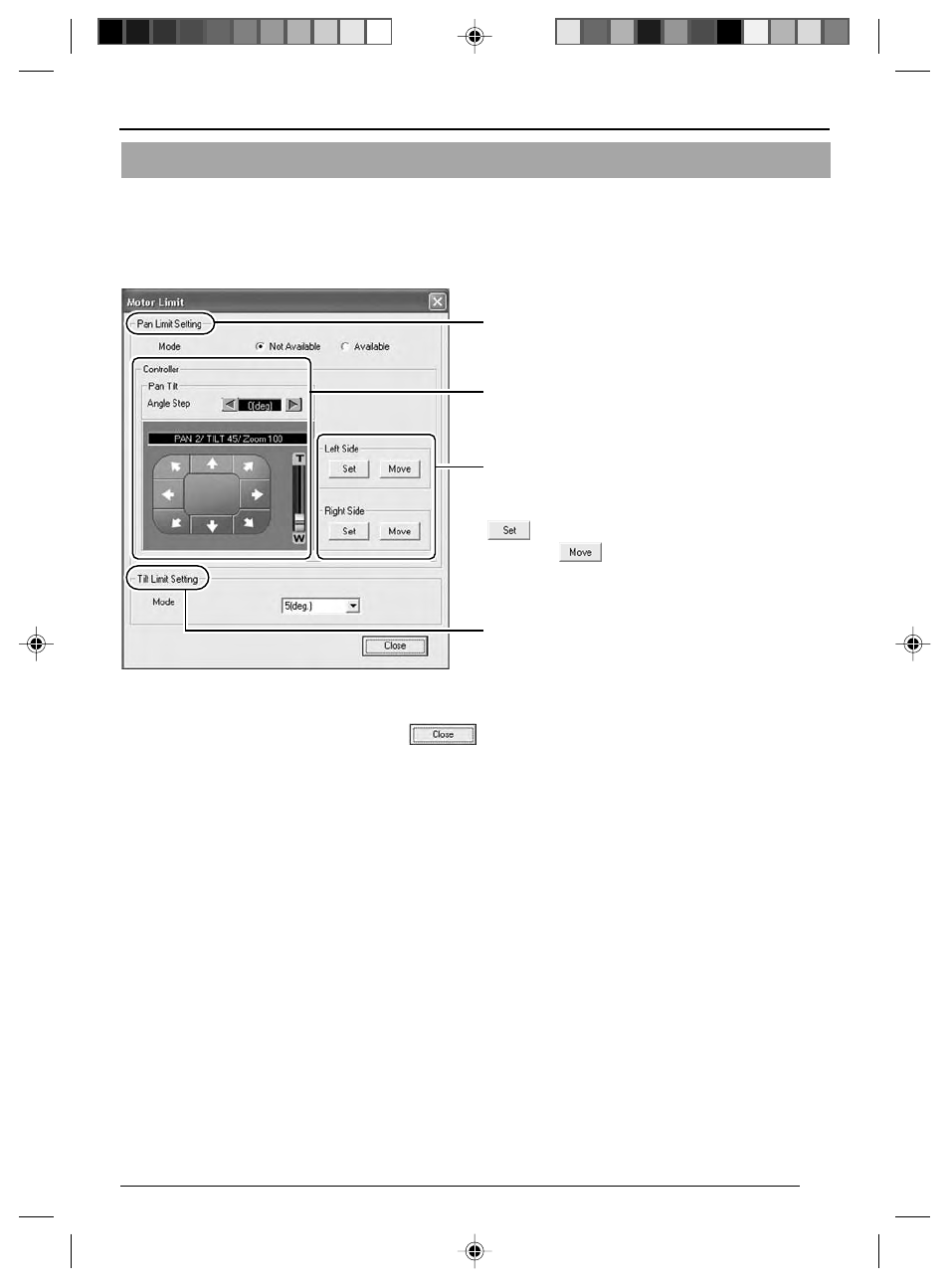

Start up the "VN-C625U Setup Tool" and select [Motor Limit].
When areas that are not required are included during shooting due to the installation
position of the camera, make use of the Motor Limit function to set the shooting range.
2.
When setting is complete, click .
When [Mode] is set to "Available", the Pan Limit
function will be enabled and panning (horizontal)
actions can be controlled.
Controller
Left Side / Right Side
Use the controller to set positions for the left and
right limits, followed by clicking the respective
buttons.
Clicking moves the positions to the
currently set limit positions.
For controlling the tilting (vertical) actions.
When this is set to 10˚, the vertical operating
range of the camera will be between 10˚ to 90˚.
Set values: Off, 1˚ to 10˚
