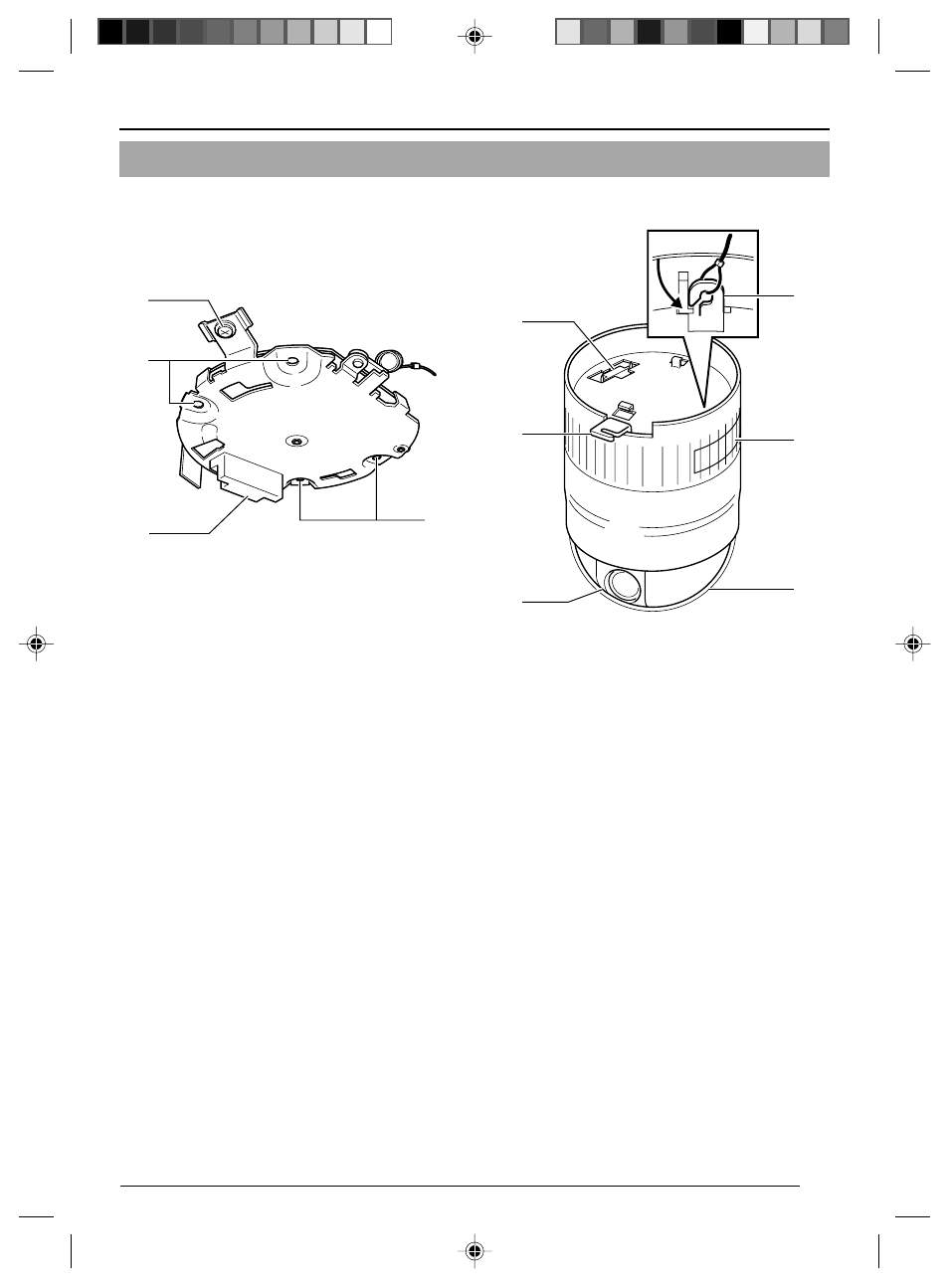

Ceiling Mount (Camera Terminal Side)
Ⅵ
Camera
0 Clamping Holes (x 4)
Use this hole to attach the camera to the ceil-
ing or ceiling embedding bracket (WB-S625:
sold separately).
! Camera Connection Terminal (Female)
Connect this to the connection terminal (male)
@ on the camera.
@ Connection Terminal (Male)
Connect this to the camera connection termi-
nal (female)
! on the ceiling mount.
# Camera Clamping Bracket
Insert the locking screw 6 into this bracket
and tighten to fasten the camera and the ceil-
ing mount.
$ Lens
The lens is not a replaceable item.
% Dome Cover
The dome cover is fragile. Take care when
handling it.
^ CF (Compact Flash) Cover
Open the cover and insert the CF card.
(
☞
Page 22)
& Fastening Hook for Safety Wire
Hook this to the safety wire 1 (to prevent cam-
era from falling down) on the ceiling mount.
