Preparation (Step 1 Connection/Installation)
Connecting a 5C-2V or 3C-2V coaxial cable

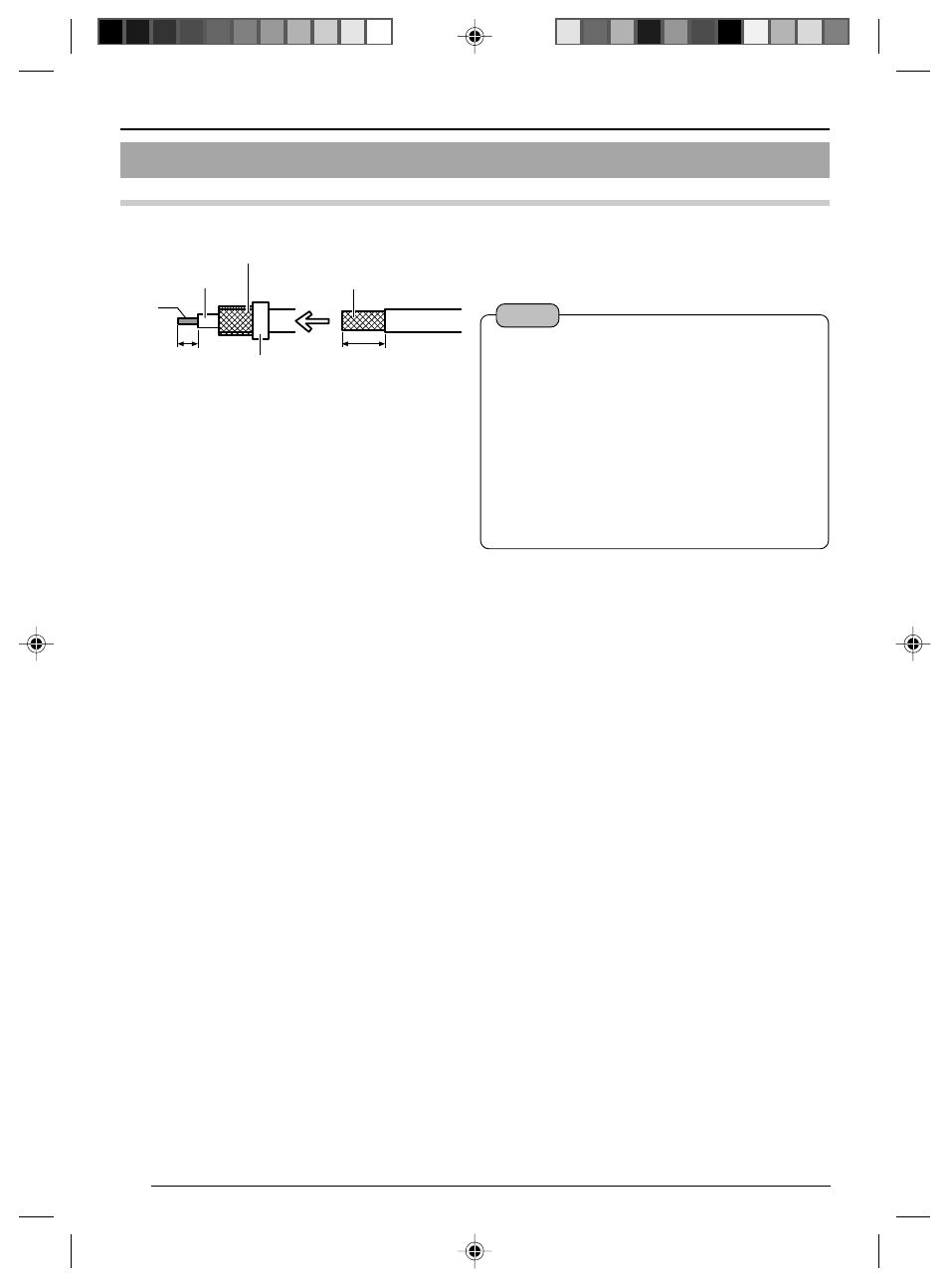

Strip the coaxial cable according to the
diagram on the left. (Unit: mm)
1-1 Connecting Cables (Continued)
4. Connection of Coaxial Cables
7
*
17
Polyethylene
Mesh
Wires
Insulation Tape
Core Wire
Notes
• 7C-2V coaxial cables cannot be connected
directly to the terminal block. In this case,
make use of the 5C-2V cable as a junction
cable by connecting it to this camera.
* Fold back the mesh wires and secure
using an insulation tape to prevent them
from becoming loose and causing a
short circuit.
• Video output signal of the VIDEO OUT
terminal is restricted to NTSC signals.
