7

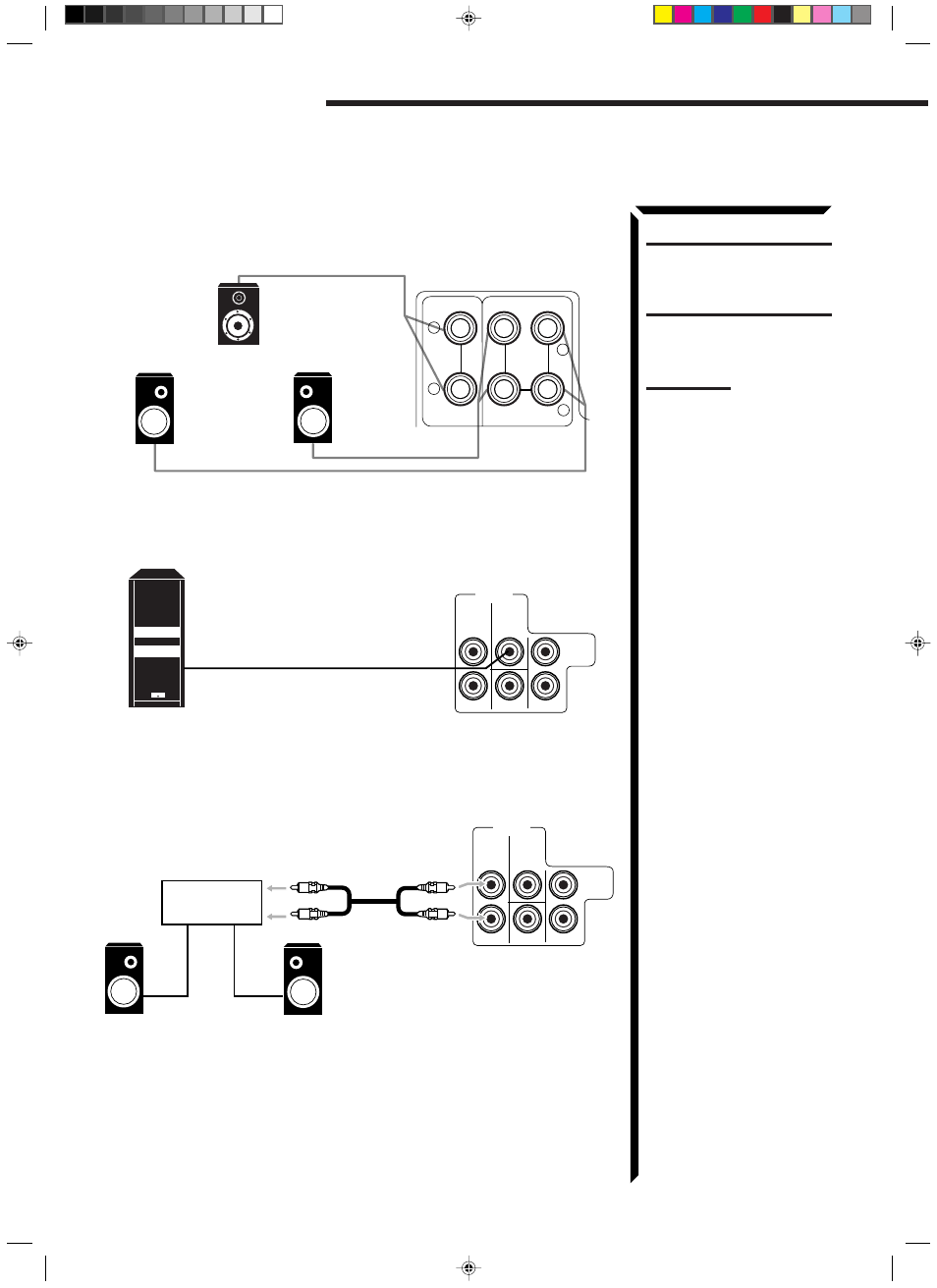

Connecting the rear and center speakers
Connect the rear speakers to the REAR SPEAKERS terminals and a center speaker to
the CENTER SPEAKER terminals.
Connecting the subwoofer speaker
Connect the input jack of a powered subwoofer to the SUBWOOFER jack on the rear
panel, using a cable with RCA pin plugs.
To enhance your audio system
You can use this receiver as the pre-amplifier (control amplifier) when you connect
power amplifiers to the PRE OUT jacks on the rear panel, using cables with RCA pin
plugs.
Getting Started
CAUTION:
Use speakers with the
SPEAKER IMPEDANCE
indicated by the speaker
terminals.
Note:
To obtain the best possible
output power from the receiver,
and to prevent the receiver from
being overheated, the receiver
has the SPEAKER LOAD
SELECTOR which has to be set
as follows:
• Set it to the HIGH position
when the impedance of the
speakers connected is within
the range of 8 ohms to 16
ohms.
• Set it to the LOW position
when the impedance of the
speakers connected is within
the range of 4 ohms to 6
ohms.
• Set it to the LOW position
when the impedance of the
any speaker connected is 6
ohms or less.
+
–
+
–
RIGHT LEFT
CENTER
SPEAKER
REAR
SPEAKERS
Center speaker
Left rear speaker Right rear speaker
PRE OUT
REAR
SUB
WOOFER
FRONT
CENTER RIGHT RIGHT
LEFT
LEFT
Powered subwoofer
PRE OUT
REAR
SUB
WOOFER
FRONT
CENTER RIGHT RIGHT
LEFT
LEFT
Power amplifier
Example: When using a stereo power amplifier
for connecting the rear speakers
Left rear speaker Right rear speaker
