Page 8: Reconnect battery, Connect wires, Wiring diagram / color codes
MP8610BT
8
1
2
3
4
White/Black (-)
Blanco/Negro (-)
Blanc/Noir (-)
White / Blanco / Blanc (+)
Gray/Black (-)
Gris / Negro (-)
Gris / Noir (-)
Gray / Gris / Gris (+)
Violet / Violeta / Violet (+)
5
7
6
8
Green / Verde / Vert (+)
Green/Black (-)
Verde/Negro (-)
Vert/Noir (-)
Violet/Black (-)
Violeta/Negro (-)
Violet/Noir (-)
9
10
11
12
13
AMP
RED/ROJO/ROUGE
BLUE/AZUL/BLEU
BLACK/BEGRO/NOIR
YELLOW/AMARILLO/JAUNE
20-PIN AUDIO/POWER HARNESS
Pin View
6
5
3
4
1
2
14
13
11
12
15
16
7
9
8
10
20
18
17
19
L-CH
GREY/GRIS/GRIS
BLACK/NEGRO/NOIR
FRONT/FRENT/AVANTE
REAR/POSTERIOR/ARRIÈRE
L-CH
R-CH
R-CH
L-CH
R-CH
RCA-TO-RCA CABLES
(not supplied)
RCA-TO-RCA CABLES
(not supplied)
FUSE
FUSIBLE
FUSIBLE
BLUE/AZUL/BLEU
WHITE/BLANCO/BLANC
RED/ROJO/ROUGE
YELLOW/AMARILLO/JAUNE
WHITE/BLANCO/BLANC
SUB
WOOFER
WHITE
BLANCO
BLANC
RED
ROJO
ROUGE
WHITE
BLANCO
BLANC
RED
ROJO
ROUGE
Wiring / Cableado / Câblage
Wiring
Wiring with a Wiring Adapter (Purchased Separately)
Connect Wires
You can make all these connections without even being in the car.
1.
Splice or crimp wires.
2.
Attach wiring adapter to car wiring harness.

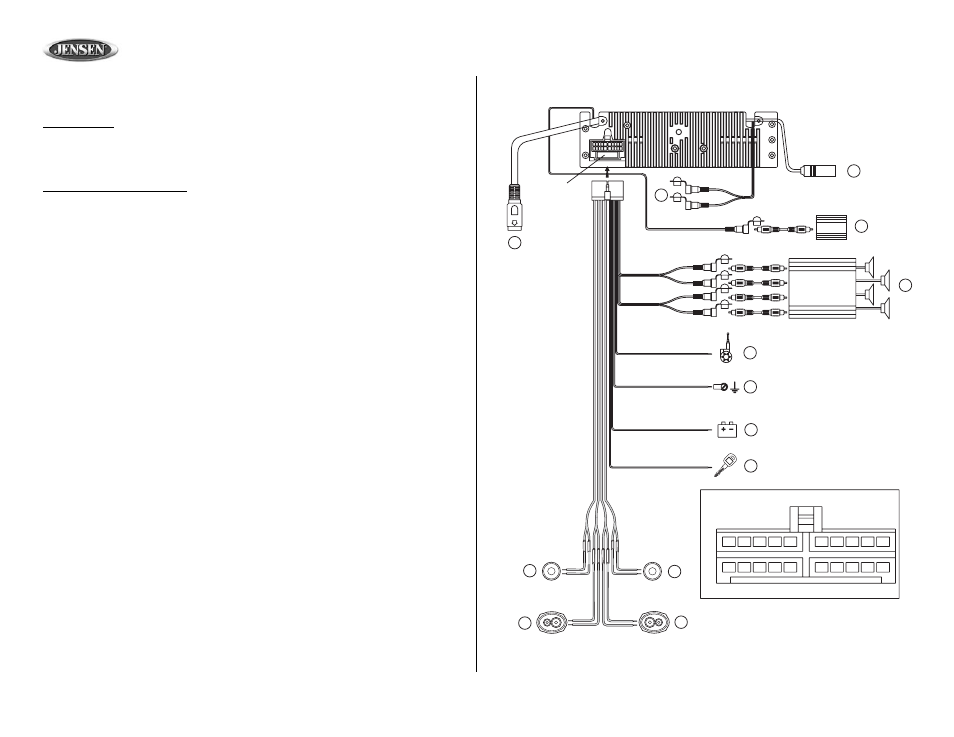

Wiring Diagram / Color Codes
1.
Power Antenna (dark blue wire) – Connect to power antenna or amplifier. If not used, tape
bare end of wire.
2.
Ground (black wire) – Connect to ground terminal or clean, unpainted part of chassis.
3.
Memory/Battery (yellow wire) – Connect to battery or 12 volt power source that is always
alive. The radio will not work if this wire is not connected.
4.
Accessory/Ignition (red wire) – Connect to existing radio wire or radio fuse.
5.
Left Front Speaker
6.
Right Front Speaker
7.
Left Rear Spearker
8.
Right Rear Speaker
9.
RCA Outputs to Amplifier
10. Auxiliary Input Cable (yellow)
11. Antenna
12. CD Changer
13. Subwoofer Output
Fuses
When replacing a fuse, make sure the new fuse is the correct type and amperage. Using an
incorrect fuse could damage radio. The MP8610BT uses one 15 ampfast blow ATO fuse
located below the wiring connector.
Reconnect Battery
When wiring is complete, reconnect the battery negative terminal.
