MP8610BT
6
MP8610 BT
PHONE
AS/PS
MP3/W MA RECEIV ER
/
PTM
MOS FET 72 WATTS

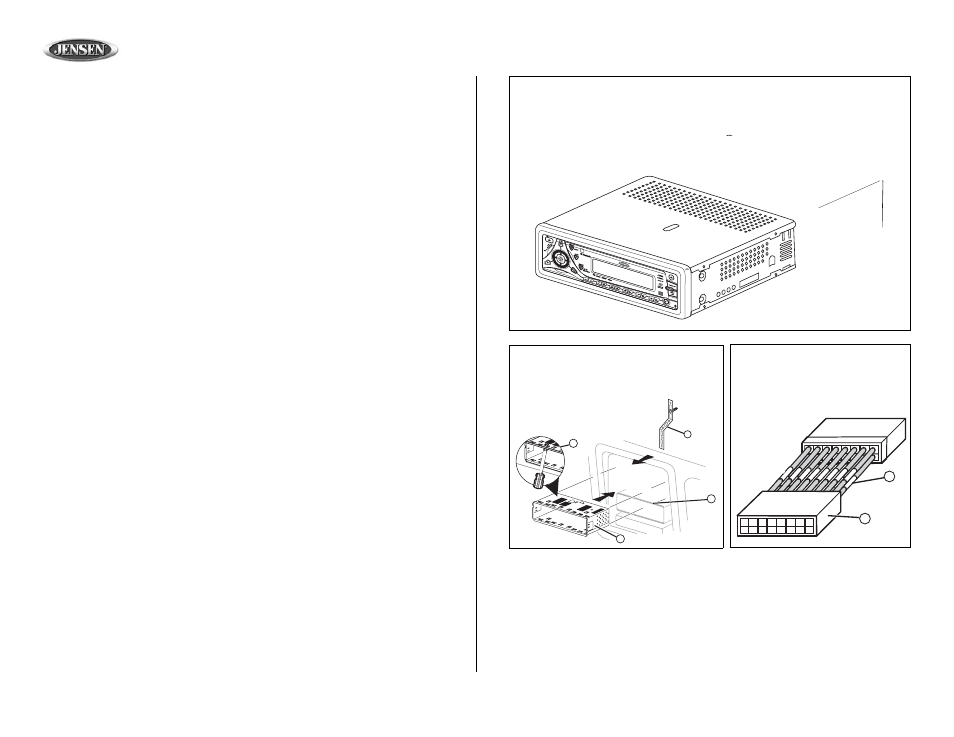

Remove Radio from Sleeve
Remueva el Radio de la Manga
Enlever la radio du manchon
Preparation
Getting Started
It’s a good idea to read all of the instructions before beginning the installation.
Tools and Supplies
The following tools and supplies are needed to install the radio.
• Torx type, flat-head and Philips screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screwdriver, socket wrench set or other tools)
• Electrical tape
• Crimping tool
• Volt meter/test light
• Crimp connections
• 18 gauge wire for power connections
• 16–18 gauge speaker wire
NOTE: Only connect speakers rated in the load impedance of 4 ohms. Speakers with a
load impedance less than 4 ohms could damage the unit.
Disconnect Battery
Before you begin, always disconnect the battery negative terminal.
Remove Radio from Sleeve
Lift latches on both sides of sleeve to remove half-sleeve from radio.
Install Half-Sleeve
1. Install adapter and dash kit if necessary (optional).
2. Install half-sleeve into adapter or dashboard.
3. Push tabs out to secure half-sleeve in the radio opening.
4. Install support strap to stabilize unit.
Jensen Connector
1
2
Install Half-Sleeve
Instalación de la Camisa
Installation du demi-manchon
Connect Wires
Conecte los cables
Raccordement des fils
4
1
2
3
