70
SYSTEM CONNECTIONS
Connect the satellite receiver to the [L-2 INPUT/DECODER]
connector, then connect the [L-1 INPUT/OUTPUT] connector to
the TV’s connector.
NOTES:
● Set AL-2 SELECTB to AVIDEO/RGBB or AS-VIDEO/RGBB.
(A pg. 69)
● You can use the Automatic Satellite Programme Recording
function with this connection. (A pg. 53)
● To record a programme via the satellite receiver, select L-2 mode
by pressing PR +/– so that
AL-2B appears on the front display
panel.
● For details, refer to the instruction manual of the satellite receiver.
Remote Control 1/2/3/4 Code Switching
The remote control is capable of controlling four JVC video units
independently. Each of the units can respond to one of the four
codes (1, 2, 3 or 4). The remote control is preset to send code 3
signals because your unit is initially set to respond to code 3
signals. You can easily modify your unit to respond to code 1, 2 or
4 signals.
● Keep pressing SET UP down during step 1.
1
Press the number key A1B for 1, A2B for 2, A3B for 3 or A4B for 4 to
change the remote control code, then press ENTER.
2
Press A on the unit to turn off the unit.
3
Press I on the unit for over 5 seconds while the unit is turned
off. The code currently set appears on the front display panel.
4
Press o on the remote control to change the unit’s code. The
code currently set on the remote control blinks on the front
display panel for approximately 5 seconds, and is applied to the
unit.

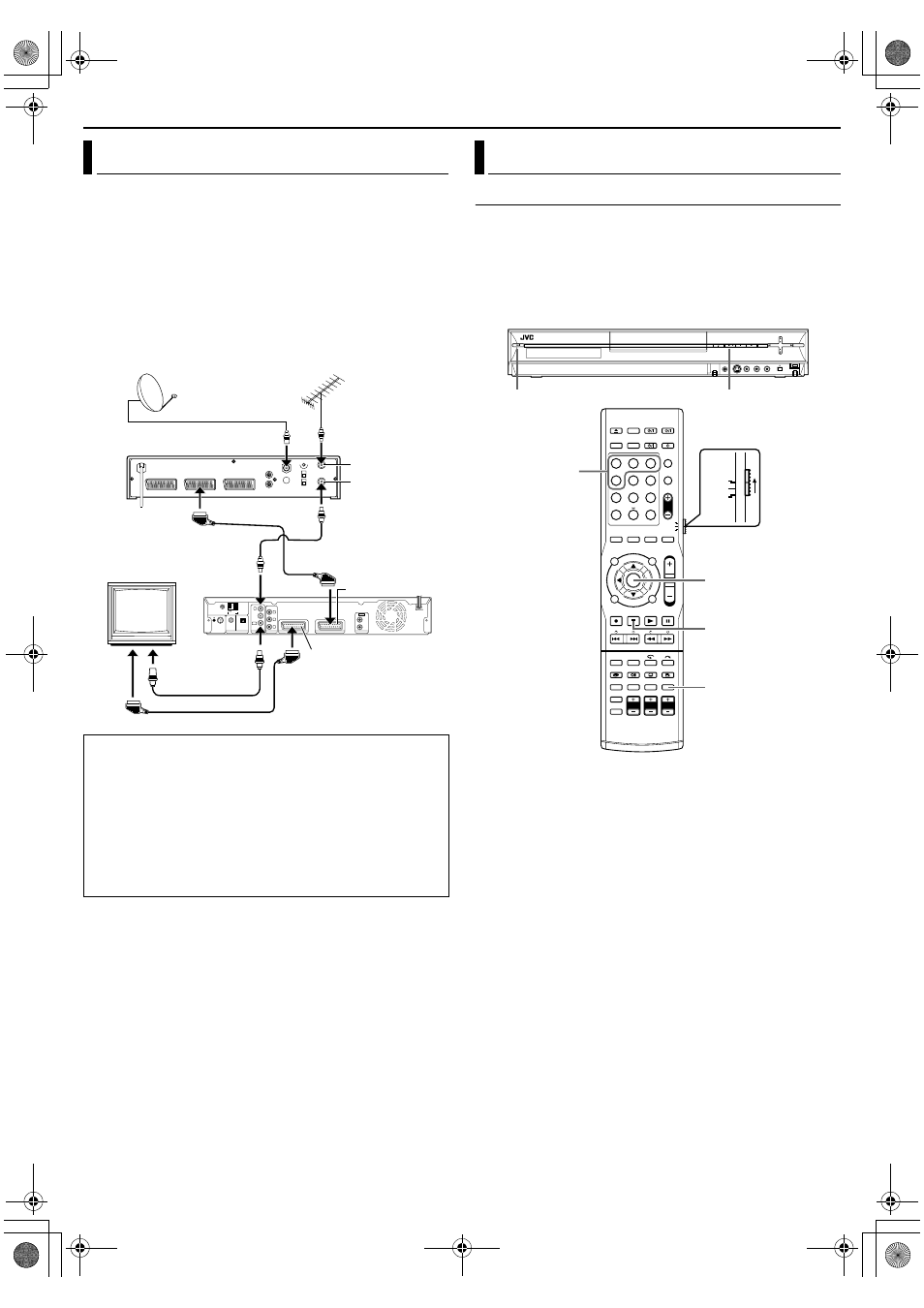

Connecting To A Satellite Receiver
IMPORTANT
When you set
AL-2 SELECTB to ASAT VIDEO/RGBB or ASAT S-
VIDEO/RGB B (A pg. 69), it is possible to view a satellite
broadcast with the TV set to an input mode such as EXT1 even if
the unit is turned off. When the unit is in Stop mode or recording,
press TV/VIDEO on the remote control to turn off the Video
indicator on the front display panel.
● If you turn on the unit when the satellite receiver’s power is off,
nothing appears on the TV screen. In this case, turn on the
satellite receiver, or set the TV to its TV mode, or press TV/
VIDEO on the remote control to set the unit to the AV mode.
Outdoor unit
Satellite cable
Satellite receiver
Aerial
TV aerial cable
ANTENNA OUT
ANTENNA IN
TV
Rear of unit
[L-1 INPUT/OUTPUT]
[L-2 INPUT/
DECODER]
Remote Control Functions
1 2 3
4 5 6
7 8 9
0
VOL
SAT
TV
AUDIO
(FGDE)
ENTER
o
SET UP
1-4
Selection Keys
I B/C
