INSTALLING YOUR NEW UNIT
Page 14Friday, 8 April 2005 16:00
Filename [TH-R1R3EK_05Name.fm]
Masterpage:Left+
14

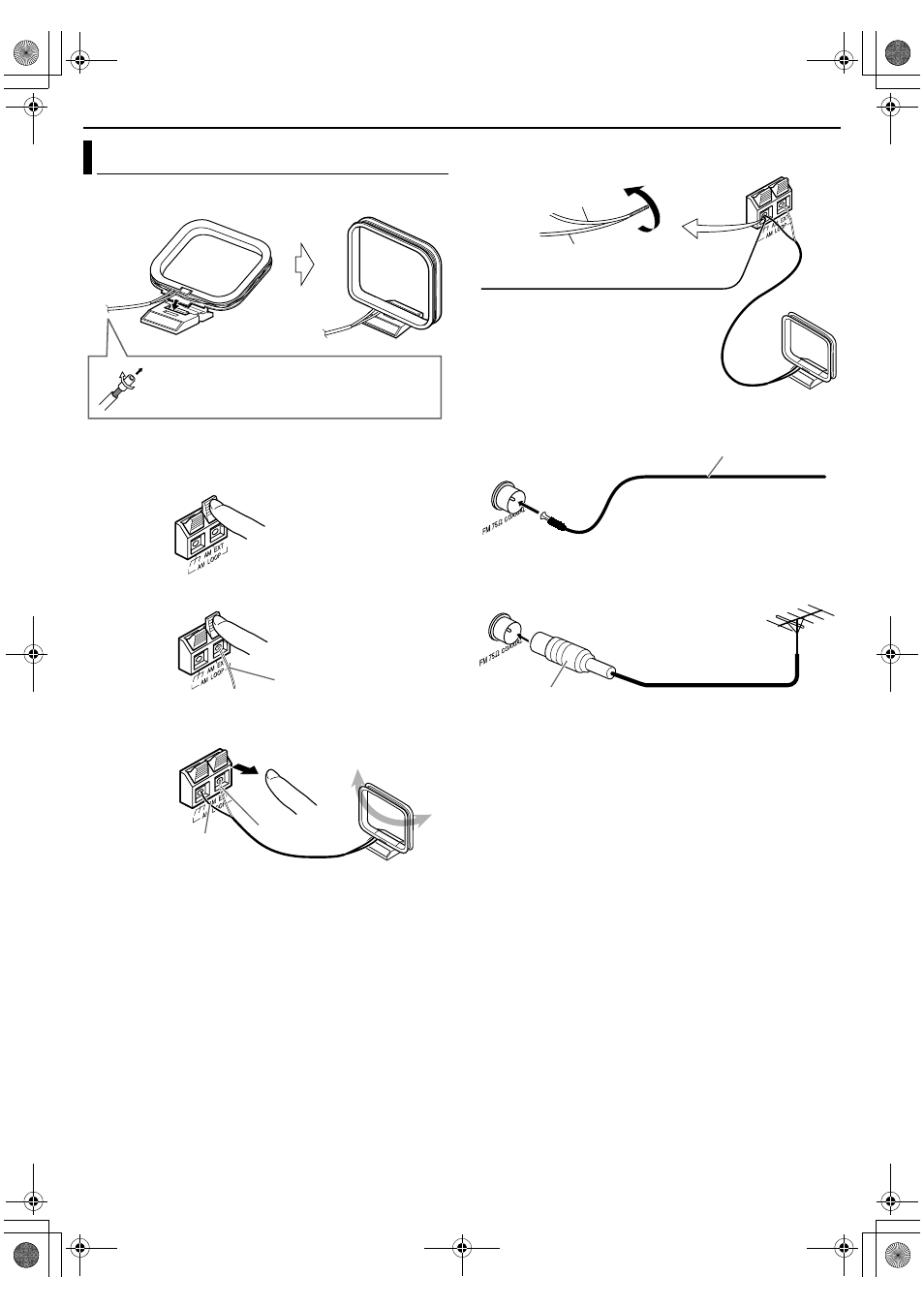

8 AM loop antenna
Setting up supplied AM loop antenna
Connecting AM loop antenna
1
2
3
● Turn the loop antenna until you have the best reception during
AM reception.
NOTE:
Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cords. This could cause
poor reception.
If reception is poor
8 FM antenna
If reception is poor
NOTE:
We recommend that you use coaxial cable for the FM antenna as it
is well-shielded against interference.
Connecting The FM And AM Antennas
If the antenna cord is covered with the insulation
coat, twist and pull off the insulation coat to remove.
Center unit
Antenna cord
White
Black
Center unit
AM loop antenna
Outdoor single vinyl-covered wire antenna
(not supplied)
FM antenna (supplied)
Extend the supplied FM antenna
horizontally.
Center unit
Center unit
Outdoor FM antenna
(not supplied)
Standard type (75 K coaxial) connector
