7
Connecting Other Components
When you connect and use other components, refer also to
the manuals supplied with them.
• DO NOT connect other components while
the power is on.
• DO NOT plug in any component until all
connections are complete.

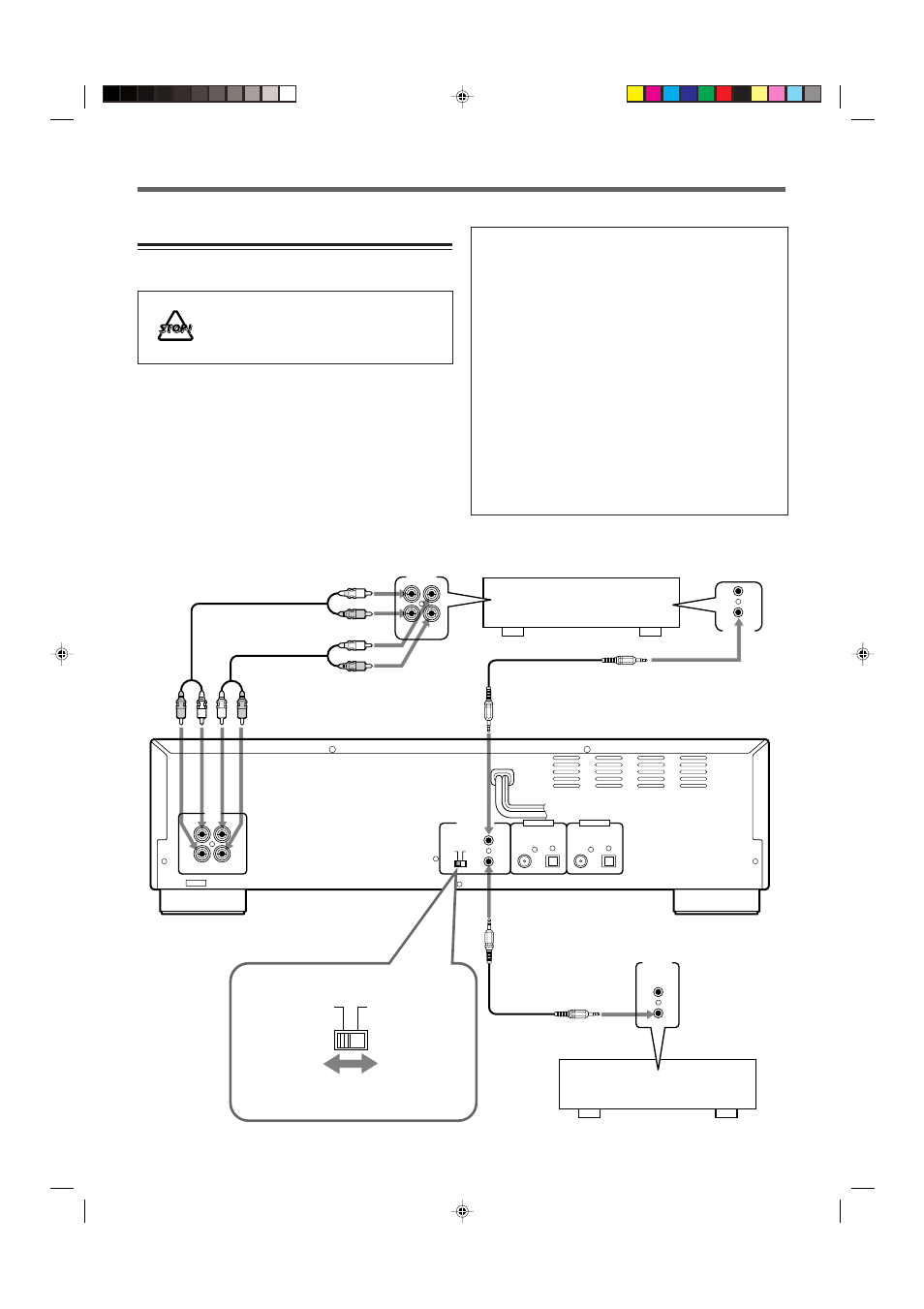

To connect an analog component
White plugs and jacks are for left audio signals, and red
ones for right audio signals.
You can enjoy playback and recording on the connected
component.
By using audio cords with RCA pin plugs (supplied),
connect:
• Between the audio input jacks on the other component and
the LINE OUT (PLAY) jacks.
• Between the audio output jacks on the other component
and the LINE IN (REC) jacks.
When connecting a JVC audio component equipped with
the COMPU LINK remote control system
You can use COMPU LINK remote control system (see
page 40) by connecting this unit and a JVC audio
component through the COMPU LINK-4 (SYNCHRO) jacks
using cables with monaural mini-pugs in addition to the
audio cord connection.
When using COMPU LINK remote control system for
operating a receiver equipped with TAPE and/or CDR
jacks, set the MODE selector to the appropriate position
(see below).
• Set the MODE selector to “CDR” when connecting to
the CDR input/output jacks on the receiver.
The connected receiver (or amplifier) recognizes this
unit as a CD recorder.
• Set the MODE selector to “TD” when connecting to
the TAPE/MD or TAPE input/output jacks on the receiver.
The connected receiver (or amplifier) recognizes this
unit as a cassette deck.
JVC’s receiver
(or amplifier)
JVC’s audio component
Ex.: MD recorder
Audio cords with RCA
pin plugs (supplied)
Cable with monaural mini-plugs
(supplied one cable)
RIGHT
LEFT
RIGHT
LEFT
IN (REC) OUT (PLAY)
LINE
CDR TD
MODE
COMPU LINK-4
(SYNCHRO)
COMPU LINK-4
SYNCHRO
DIGITAL IN
COAXIAL OPTICAL
DIGITAL OUT
COAXIAL OPTICAL
CDR TD
MODE
R
L
OUT
(REC)
IN
(PLAY)
R
L
TAPE/CDR
COMPU LINK-3
SYNCHRO
Turn off the unit and unplug the AC power
cord before setting the MODE selector.
Cable with monaural
mini-plugs (supplied
one cable)
