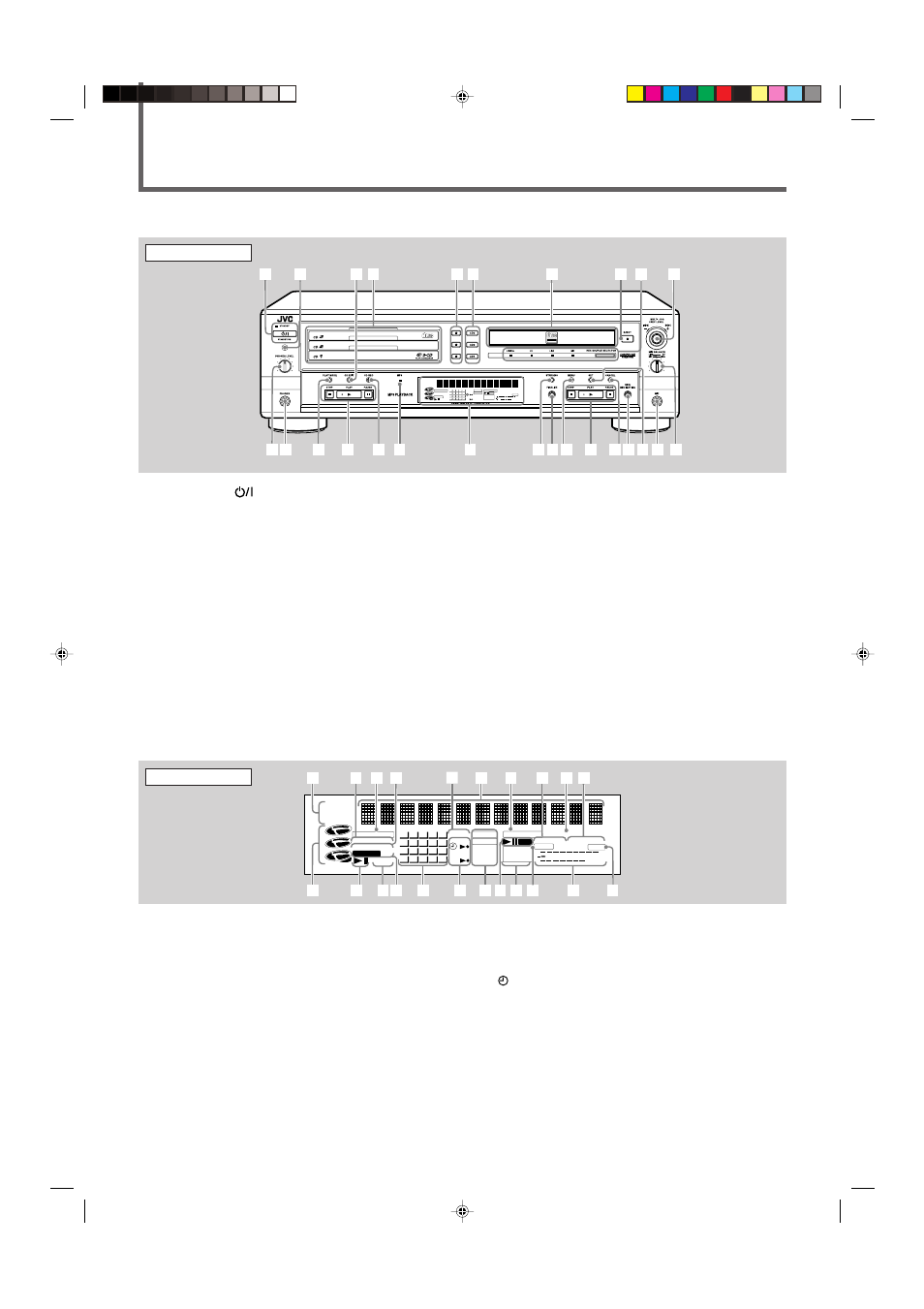

Parts Identification
See pages in the parentheses for details.
Main Unit
1 STANDBY/ON
button and STANDBY lamp (9, 38)
2 Remote sensor
3 CD EDIT button (29, 30)
4 3-CD Changer disc trays (CD1, CD2, CD3) (10, 19)
5 3-CD Changer disc eject
0 buttons
(
0 CD1, 0 CD2, 0 CD3) (10, 15)
6 3-CD Changer disc number buttons (CD1, CD2, CD3)
(9, 10, 19)
7 CD Recorder disc tray (16)
8 CD Recorder EJECT
0 button
9 REC SOURCE SELECTOR button and recording source
lamps (DIGITAL, CD, LINE, MIC) (22, 31, 32)
p MULTI JOG
¢ / 4 (11, 17, 20)
REC LEVEL
+/− control (23, 32)
q PHONES LEVEL control (9)
w PHONES jack (9)
e PLAY MODE button (12, 14)
r 3-CD Changer operating buttons
STOP
7 button
PLAY
3 button
PAUSE
8 button
t CD REC
¶ button (26, 28)
y MP3 lamp (19)
u Display window (See below.)
i SYNCHRO button (31)
o FINALIZE button (33)
; MENU button
a CD Rocorder operating buttons
STOP
7 button
PLAY
3 button
PAUSE
8 button
s CANCEL button
d
¶ REC/REC MUTING button (22, 24, 30, 32)
f SET button
g MIC jack (21)
h MIX BALANCE control (32)
1 Disc play mode indicators (12, 14, 15, 17, 20)
• PROGRAM, RANDOM, REPEAT (ALL/1CD/1) indicators
2 LISTENING EDIT indicator (29)
3 CD PLAYER indicator (10)
4 PROGRAM EDIT indicator (30)
5 SKIP ON indicator (35)
6 Display
7 CD RECORDER indicator (16)
8 HIGH SPEED indicator (25)
9 SYNCHRO indicator (26, 28, 31)
p AUTO TRACK indicator (34)
q Disc indicators (11)
w 3-CD Changer operating indicators
•
3 (play), 8 (pause) indicators
e PITCH
+/− indicators (15)
Display Window
r Direct recording indicators (26, 28)
• CD REC 1CD, CD REC 1 indicators
t Track number indicators
y Timer indicators (38, 39)
•
(timer), DAILY
3 (playing) and ¶ (recording),
ONCE
3 (playing) and ¶ (recording)
u Signal indicators
• ANALOG, DIGITAL, 32 kHz, 44.1 kHz, 48 kHz indicators
i CD Recorder operating indicators
•
3 (play), 8 (pause), REC (recording) indicators
o CD Recorder disc type indicators (16)
• CD, CD-R, CD-RW, FINALIZED indicators
; FADER indicator (24)
a Level meter
s OVER indicator (23)
COMPACT
DIGITAL AUDIO
Recordable
ReWritable
20
15
10
5
19
14
9
4
18
13
8
3
17
12
7
2
16
11
6
1
44.1kHz
HIGH SPEED AUTO TRACK
PROGRAM EDIT
1
2
3
1 CD
CD-RW
L
0
R
3
dB
6
10
15
20
30
40
MIN
MAX
ANALOG
DIGITAL
32kHz
48kHz
REC
CD RECORDER SYNCHRO
CD CD-R
FINALIZED
OVER
SKIP ON
DAlLY
ONCE
LISTENING EDIT
CD PLAYER
CD REC
–PITCH+
PROGRAM
RANDOM
REPEAT
ALL
1CD
COMPACT
DIGITAL AUDIO
XL – R5020 CD/CDR MULTIPLE COMPACT DISC RECORDER
1
5
7
8
2
9
p
3
qw
u
y
a
g h
4
6
e
t
i o ;
s d f
r
20
15
10
5
19
14
9
4
18
13
8
3
17
12
7
2
16
11
6
1
44.1kHz
PROGRAM
1
2
3
1 CD
CD-RW
L
0
R
3
dB
6
10
15
20
30
40
ANALOG
DIGITAL
32kHz
48kHz
CD RECORDER
CD CD-R
FINALIZED
OVER
SKIP ON
DAlLY
ONCE
EDIT
CD PLAYER
CD REC
PROGRAM
RANDOM
REPEAT
ALL
1CD
SYNCHRO
LISTENING
EDIT
HIGH SPEED AUTO TRACK
REC
–PITCH+
1
2 3 4
5
6
7
8
9 p
q
w
er
t
y
u i o ;
a
FADER
s
