Load a recordable CD-R or CD-RW onto the CD
Recorder disc tray.
2
Press REC SOURCE SELECTOR on the unit or
REC SOURCE on the remote control to select a
source to record from.
Selected recording source lamp on the unit lights up.
• Each time you press the button, the following recording
sources appear:
OPTICAL IN :Records through the DIGITAL IN/
OPTICAL terminal (digital recording).
The DIGITAL lamp lights up.
COAXIAL IN :Records through the DIGITAL IN/
COAXIAL terminal (digital recording).
The DIGITAL lamp lights up.
CD DIGITAL :Records from 3-CD Changer (digital
recording). The CD lamp lights up.
Prepare discs on the 3-CD Changer
disc trays.
CD ANALOG :Records from 3-CD Changer (analog
recording). The CD lamp lights up.
Prepare discs on the 3-CD Changer
disc trays.
LINE IN :Records through the LINE IN (REC)
jacks (analog recording). The LINE
lamp lights up.
MIC IN :Records through the MIC jack (analog
recording). The MIC lamp lights up.
CD+LINE MIX :See page 32.
CD+MIC MIX
:See page 32.
LINE+MIC MIX :See page 32.
3
Press ¶ REC/REC MUTING.
The unit enters recording pause. The remaining time of
CD-R or CD-RW is shown on the display. The
8 and REC
indicators light up on the display.
• If OPC (see page 42) is being performed, “UPDATE
OPC” flashes on the display.
On the unit: Remote control:
Recording Manually—Standard Recording
You can use this method to record any sources and to record any combination of two sources.
IMPORTANT
When using operating buttons ( 3, 7, 8) on the remote control, check which indicator lights up on the display—CD PLAYER (3-CD
Changer) or CD RECORDER. If the incorrect indicator is lit, press CONTROL CD or CONTROL CDR to select the correct target source.
4
Adjust the recording level when recording from
an external component connected to the LINE IN
and MIC jacks (see page 23 for details).
• Recording level adjustment is stored until you change
the recording source.
5
Start recording.
When recording from 3-CD Changer:
1) Press PLAY 3 for CD Recorder on the unit or
3 on the remote control.
Recording starts. The 3 and REC indicators light up
on the display.
• Pressing
¶ REC/REC MUTING also starts recording.
2) Press one of the disc number buttons (CD1,
CD2, CD3) you want.
When recording from another source:
1) Press PLAY 3 for CD Recorder on the unit or
3 on the remote control.
Recording starts. The 3 and REC indicators light up
on the display.
• Pressing
¶ REC/REC MUTING also starts recording.
2) Start playback of the external components.
COMPACT
DIGITAL AUDIO Recordable ReWritable
MIN MAX
COMPACT
DIGITAL AUDIO
CA NC EL
R EC
SO
UR CE
DI SP LA Y ME NU
1
CD1 CD2 CD3
STANDBY/ON
PLAY
CD REC CD EDIT SYNCHRO FADE
REC PITCH 0
PITCH
FINALIZE
REC MUTING
MODE
SET
GROUP
REPEAT CD CDR
4
7
10
2
5
8
3
6
9
10 GROUP
CONTROL
GROUP
EJECT 0
STOP 7
¶ REC/REC
MUTING
¶ REC/REC
MUTING
7
3
15
10
5
14
9
4
13
8
3
17
12
7
2
16
11
6
1
44.1kHz
AUTO TRACK
L 0 R 3 dB 6 10 15 20 30 40
ANALOG
CD-R
CD PLAYER
REC
1
2
3
Signal type
(analog or digital)
Paying time
of 1st track
All track numbers of the selected disc
CD-R or CD-RW
remaining time

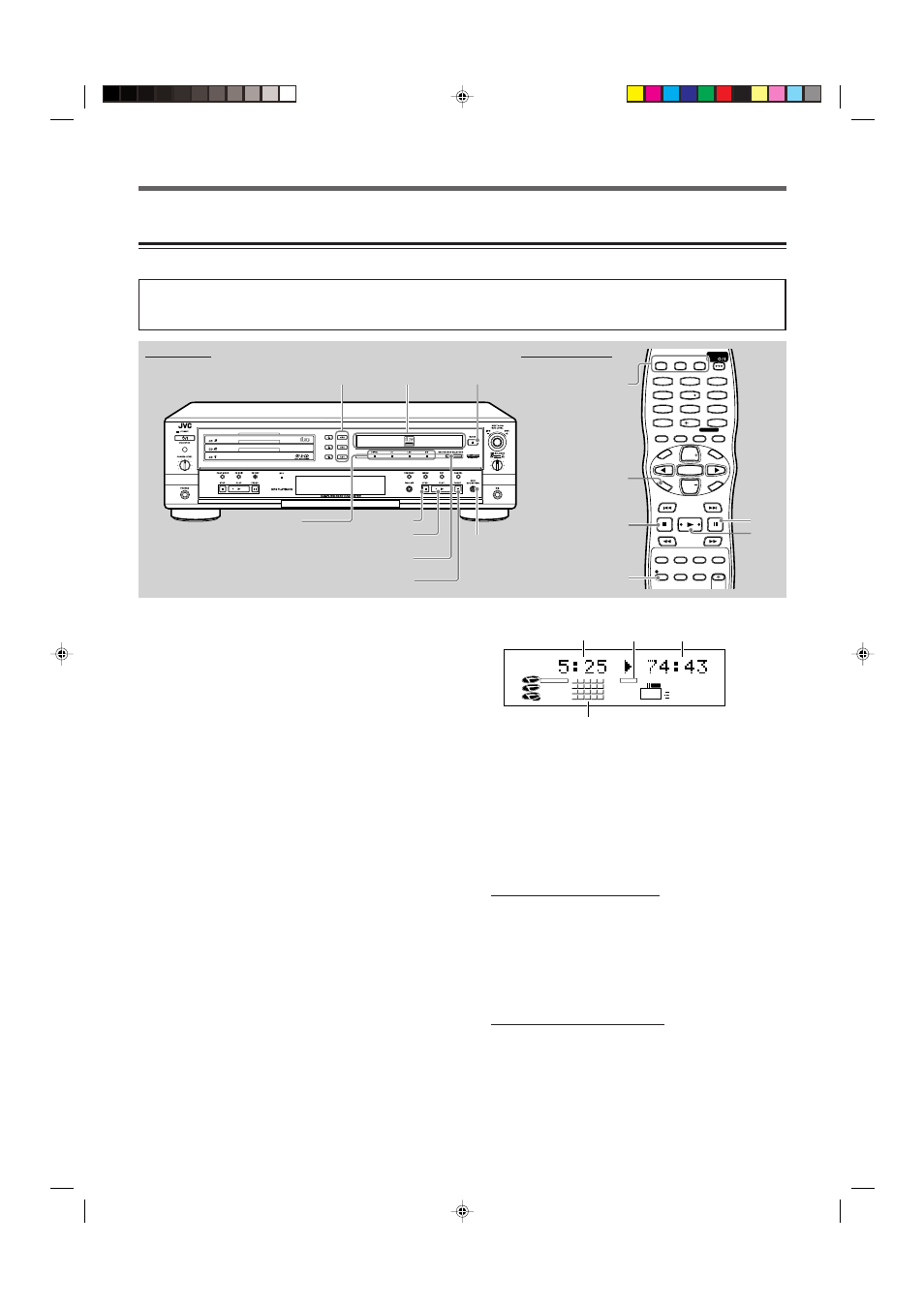

EX.: When selecting “CD ANALOG” as a recording
