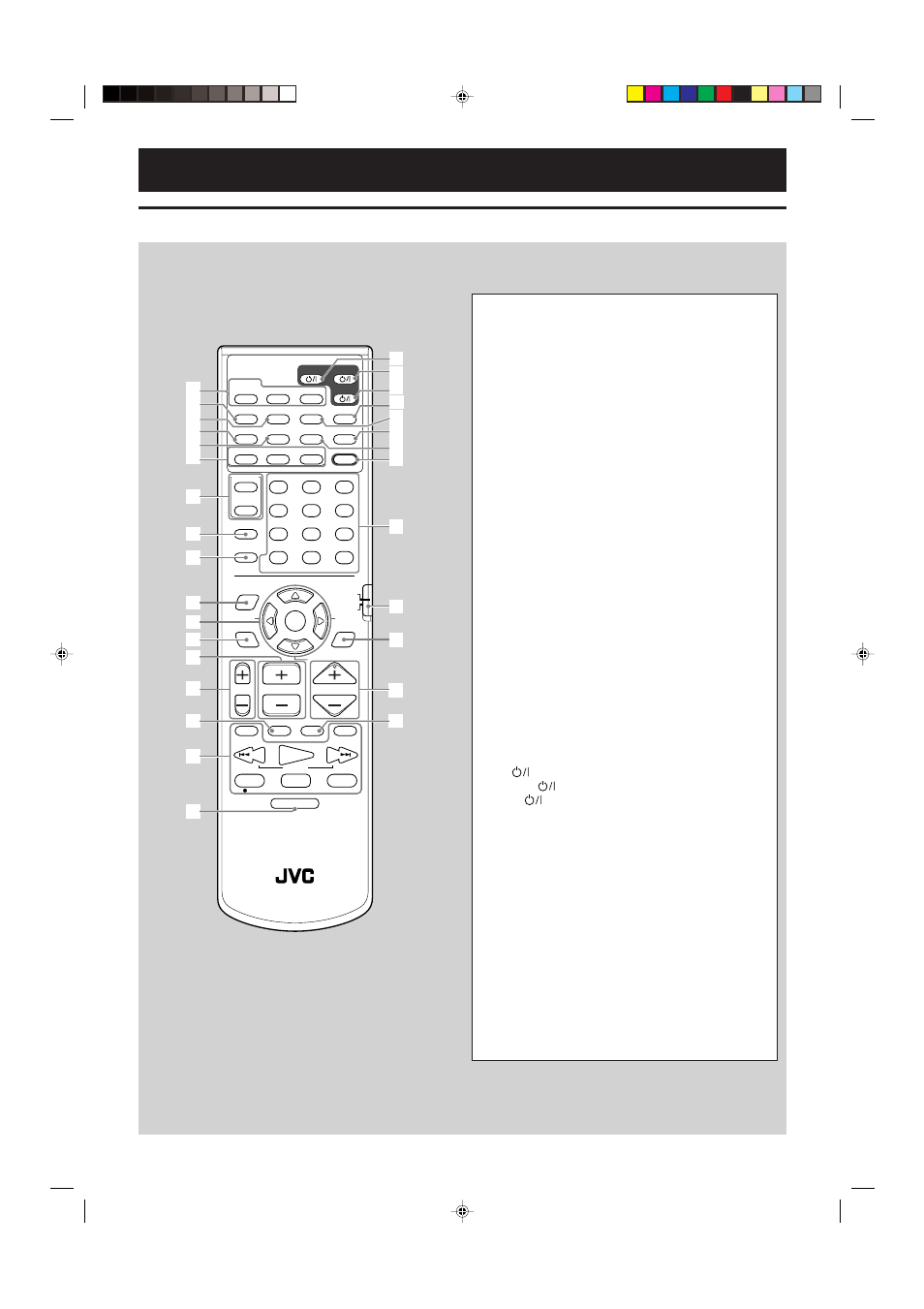

Remote control
RM–STHA75R
DVD CINEMA SYSTEM
CHANNEL/ZOOM
VOLUME
TV VOL
TUNING
STOP
DIMMER
PAUSE
FF/
/REW
TV/VIDEO
1
MUTING
¡
REC
PLAY
DOWN
UP
MEMORY
STROBE
DVD
VCR 1
AUDIO
VIDEO/
TV SOUND
ANGLE
FM/AM
SUBTITLE
DECODE
RETURN
DIGEST
VFP
TOP MENU
MENU
CONTROL
EFFECT
S.WFR
TEST
SLEEP
TV
VCR
SETTING
TV RETURN
ENTER
ON
SCREEN
CHOICE
FM MODE
1
2
3
4
5
6
7
8
9
10
0
+10
100+
TV
AUDIO
VCR
SOUND
PTY SEARCH
DVD
RDS
TA/NEWS/INFO
PTY
(
PTY
9
RDS DISPLAY
SURROUND
OFF
DSP
CENTER
–
+
–
+
–
+
–
+
SURR-L
SURR-R
S-BACK
–
+
ADJUST
O.T.
REPLAY
7
1
2
3
4
6
5
8
9
p
q
w
e
r
y
u
i
o
;
a
g
h
j
k
l
f
d
t
/
s
1 Source selecting buttons (17)
VIDEO/TV SOUND, FM/AM, DVD
2 AUDIO button (41, 42)
3 ANGLE button (40)
4 TOP MENU button (39)
5 MENU button (39, 53)
6 Surround and DSP operation buttons
SURROUND (20, 35), DSP (20, 35), OFF (35)
7 CONTROL buttons
VCR (64), TV (16)
8 SLEEP button (19)
9 • SETTING button (28)
• ADJUST button (30)
p ON SCREEN button (37, 38)
q • ENTER button (38, 51, 53)
• Cursor
3/2/∞/5 buttons (28, 30, 38, 50 – 53)
• RDS operation buttons (25, 26)
PTY
9, PTY (, TA/NEWS/INFO, PTY SEARCH
• Choice menu operation buttons (54, 61, 62)
w • CHOICE button (54, 61, 62)
• RDS DISPLAY button (24)
e • CHANNEL +/– buttons (16, 64)
• ZOOM +/– buttons (46, 53)
r TV VOL (volume) +/– buttons (16)
t TV/VIDEO button (16)
y • Disc Operation buttons (20, 39, 44, 45, 46, 50, 52, 53, 64)
1, ¡, 4/REW, PLAY, FF/¢,
O.T. (one touch) REPLAY, STOP, PAUSE
• TUNING UP/DOWN buttons (22)
•
÷ REC button (64)
• MEMORY button (22, 23)
• STROBE button (45)
u DIMMER button (18)
i TV
button (16)
o AUDIO
button (17)
; VCR
button (64)
a DECODE button (19)
s SUBTITLE button (41)
d DIGEST button (44)
f RETURN button (39)
g SOUND button (18, 36)
h • Number buttons (16, 21, 23, 39, 43, 48, 61, 62, 64)
• Sound setting buttons (18, 36)
S.WFR +/–, CENTER +/–, SURR-L +/–,
S-BACK +/–, SURR-R +/–
• EFFECT button (36)
• TEST button (36)
• TV RETURN button (16)
• FM MODE button (23)
j Remote control mode selector (17, 24)
k VFP button (47)
l VOLUME +/– buttons (18)
/ MUTING button (18)
