7
Getting started
Connections
• Do not connect the AC power cord until all other connections have been made.
• Since different components often have different terminal names, carefully read the instructions supplied with the component
you are going to connect.

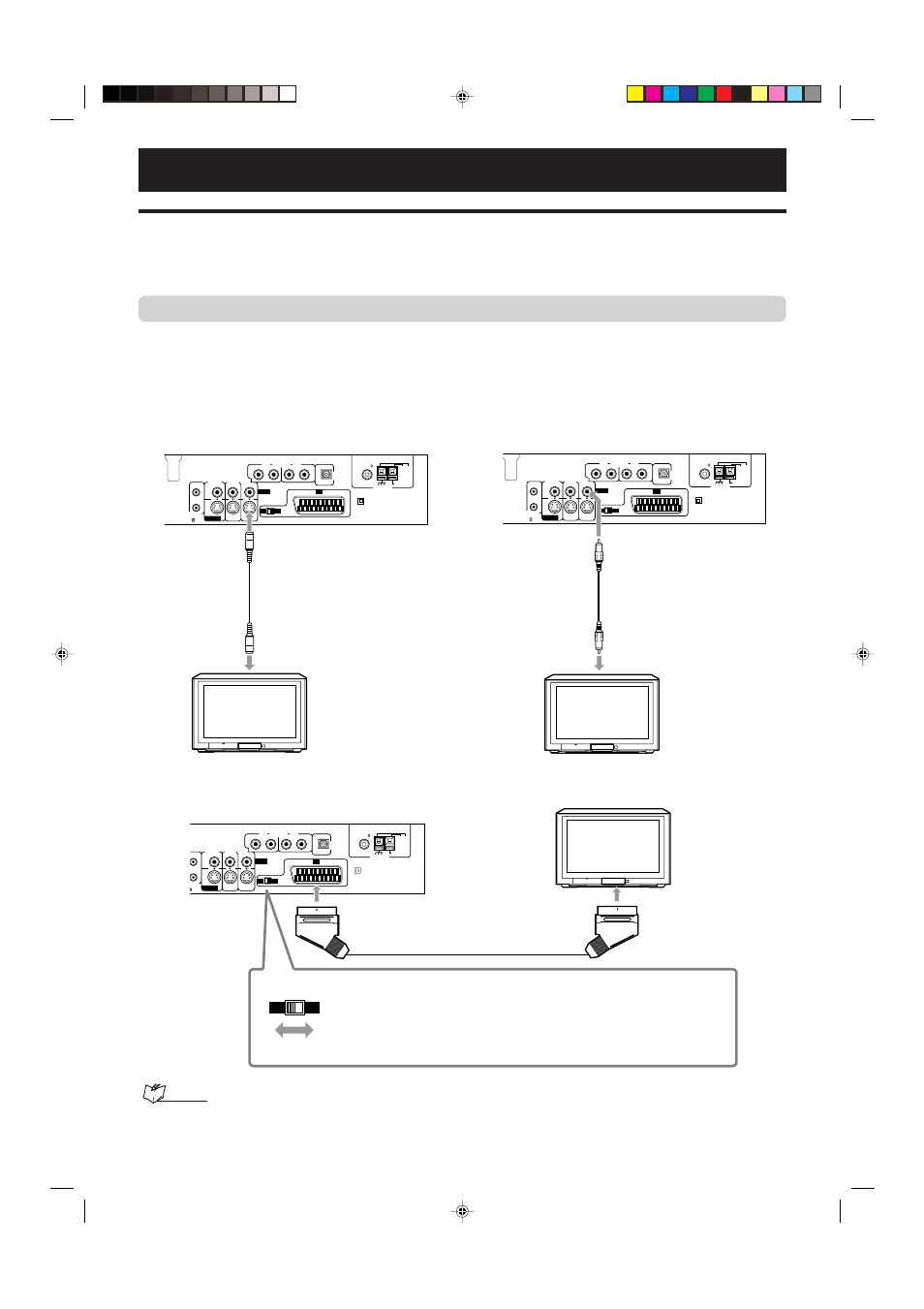

Connecting a TV
To view pictures and on-screen displays, connect a TV to the center unit.
• Distortion of picture may occur when connecting to a TV through a VCR, or to a TV with a built-in VCR.
• You need to set “MONITOR TYPE” on the PICTURE menu correctly according to the aspect ratio of your TV. See page 57.
7 To connect a TV without using the AV (SCART) connector
Connect a TV using one of the following.
• Connecting through the S-video jacks will produce a better picture quality.
• Through the S- video jacks • Through the composite video jacks
7 To connect a TV through the AV (SCART) connectors
VCR
RGB Y/C
STB
COAXIAL
AM LOOP
(STB)
VCR IN
AV COMPU
LINK- S-VIDEO
AV
DIGITAL IN
ANTENNA
STB IN OUT
AUDIO IN
VIDEO
R L R L
FM 75
AM EXT
Match the ∞ mark on the
plug to the one on the
center unit.
S-video cord (not supplied)
To S-video input TV
RGB
VCR
Y/C
STB
COAXIAL
AM LOOP
(STB)
VCR IN
AV COMPU
LINK- S-VIDEO
AV
DIGITAL IN
ANTENNA
STB IN OUT
AUDIO IN
VIDEO
R L R L
FM 75
AM EXT
Composite video cord (supplied)
To composite video input TV
VCR
RGB Y/C
STB
COAXIAL
AM LOOP
(STB)
VCR IN
OMPU S-VIDEO
AV
DIGITAL IN
ANTENNA
STB IN OUT
AUDIO IN
VIDEO
R L R L
FM 75
AM EXT
RGB Y/C
TV
SCART cable (not supplied)
To SCART connector*
Set the RGB-Y/C selector correctly according to your TV.
– If the TV accommodates the RGB video signal, set the RGB-Y/C selector to
“RGB” so that you can enjoy better-quality pictures. The RGB lamp on the
center unit lights up.
– If the TV accommodates the S-video signal, set the RGB-Y/C selector to
“Y/C.”
NOTES:
• When the RGB-Y/C selector is set to “RGB,” correct video signal does not come out from the S-VIDEO OUT jack on the rear panel.
• Whether the RGB-Y/C selector is set to “RGB” or “Y/C,” the composite video signal always comes out from the VIDEO OUT jack.
* Some SCART connectors don’t output audio signal. Use a SCART connector outputting audio signal when you enjoy the TV sound through
this system.
