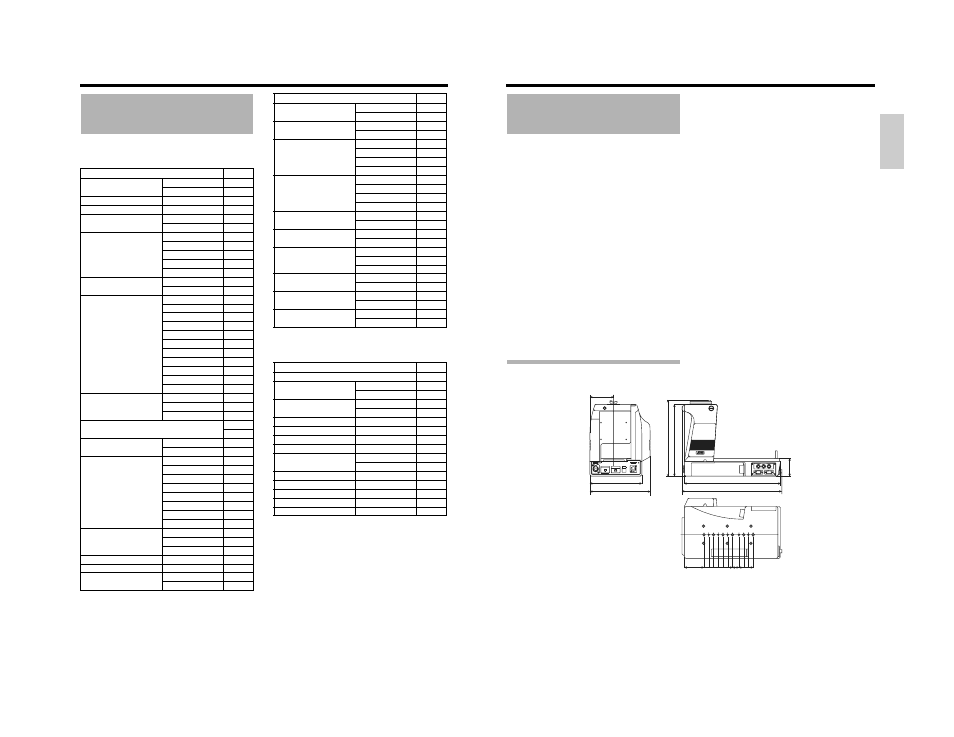

PREPARATIONS
14
Notes on Operating RM-
P210
Some actions are not compatible when setting the GY-
HD250 with RM-P210 menu operations.
( G: Action available ×: No action)
*1 When frame rate is 60p, 60i, 30p, or 24p
*2 When frame rate is 50p, 50i, or 25p
Level command
*3 The range in which the RM-P210 H.PHASE item can
actually be adjusted is 96 to 215. The value is adjusted to
96 if you set a value from 0 to 95 and the value is
adjusted to 215 if you set a value from 216 to 255.
Function Action
BAR OFF G
ON G
DETAIL OFF G
(CONTOUR) ON G
IRIS MANU G
AUTO G
WHITE BAL MANU G
PRE G
AUTO1 G
AUTO2 G
FAW G
AUTO SET ×
WHITE G
GAIN 0dB G
+3dB G
+6dB G
+9dB G
+12dB G
+18dB G
+24dB ×
–3dB ×
ALC+EEl G
VARIABLE GAIN2 ×
VARIABLE GAIN ×
TALLY OFF G
ON G
PREVIEW G
VOLTAGE
CHK. (RM
r CAM)
G
G
VOLTAGE
CHK. (CAM
r RM)
HIGH G
LOW G
SHUTTER OFF G
1/100 G *1
1/120 G *2
1/250 G
1/500 G
1/1000 G
1/2000 G
V.SCAN ×
BLACK NORMAL G
STRETCH G
COMPRESS G
NORMAL (OFF) ×
(HI-RESO) V.MAX (ON) ×
AUTO KNEE OFF G
ON G
GAMMA OFF ×
ON ×
DNR OFF G
ON G
DNR LEVEL LOW ×
MIDDLE ×
HIGH ×
AUTO ×
DTL FRQ LOW G
MIDDLE G
HIGH G
AUTO ×
SKIN DTL OFF G
ON G
COLOR MATRIX OFF ×
ON ×
ASPECT RATIO 4:3 Ч
16:9 Ч
LETTER ×
FULL AUTO SHOOTING OFF G
ON G
LOLUX OFF ×
ON ×
SMOOTH TRANS OFF G
ON G
Function Action
IRIS G
MANUAL WHITE BALANCE R G
B G
BLACK PAINT R ×
B ×
MASTER BLACK G
H.PHASE G *3
DETAIL MASTER G
DETAIL BAL H/V G
WHITE PAINT R G
B G
KNEE MASTER G
GAMMA MASTER ×
IRIS LEVEL (AL) G
VARIABLE SHUTTER ×
VARIABLE GAIN2 ×
Function Action
15
Eng
lis
h
OTHERS
Specifications
RM Multi-pin connector:
Composite video signal output
(Either Y/P
B /P R , RGB or YC separate output signal can be
selected)
PROMPTER output:
PROMPTER video signal output (composite signal)
Operating temperature range:
• –5°C to 40°C (Humidity below 80%)
Allowable storage temperature:
• –20°C to 60°C
Power supply voltage:
DC12 V
Power consumption:
Max. 38W (GY-HD250, VF-P400)
Mass:
Approx. 5.2
d
Accessories:
Instructions ........................................................................× 1
Dimensions
Specifications and appearance of this device are subject to change for further improvement without prior notice.
(Unit: mm)
VF OUTPUT
R/PR TALLY OUTPUT G/Y B/PB TALLY INPUT
INTERCOM
INTERCOM MIC INTERCOM LEVEL CALL
DC INPUT
ON OFF MIN MAX
80
176
204
256
243
325
337.5
22
67
60
96(=6×P16) 48(=3×P16)
PUSH
