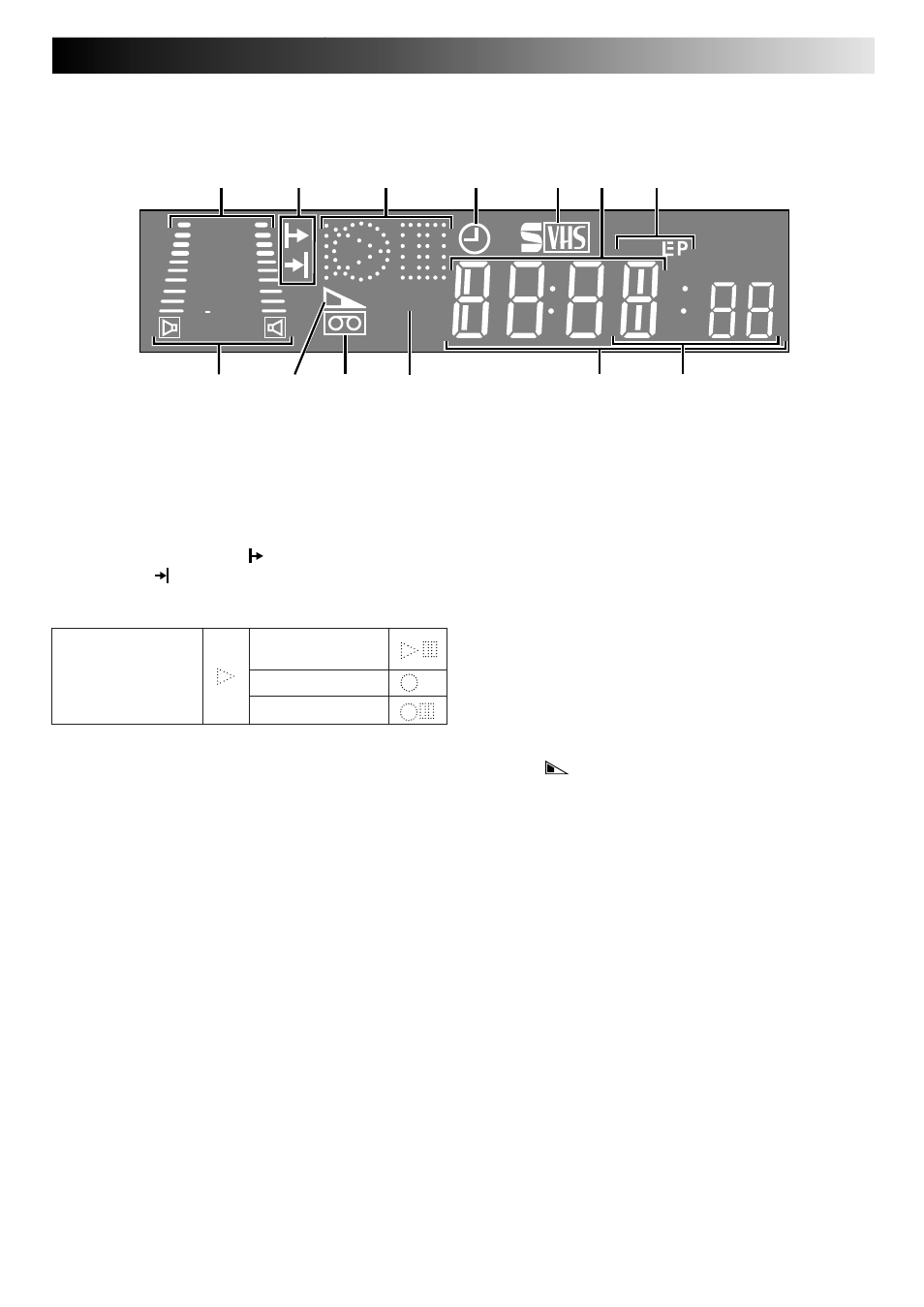

DISPLAY PANEL
1 B.E.S.T. Picture System Display lights from
bottom to top while B.E.S.T. is active.
੬
pg. 34
Audio Level Indicator displays audio input and
output levels.
2 Programme Time Indicators show the
programme start time ( ) and the programme
stop time ( ) for timer-recording.
੬
pg. 20
3 Symbolic Mode Indicators
4 "Timer" Indicator lights when ‰ TIMER (or ‰
on remote control) has been pressed to engage
Timer mode.
੬
pg. 19, 21
5 S-VHS Indicator lights when a cassette marked
S-VHS is inserted with S-VHS mode set to
"AUTO", and when an S-VHS-recorded tape is
played back.
੬
pg. 32, 33
6 Channel Display shows preset position where
the station currently being received is stored.
Clock Display shows current time.
੬
pg. 10
7 Tape Speed Indicators display mode of record-
ing; light during Record or Play mode. (in the
S-VHS or VHS mode)
੬
pg. 14
* EP is only for NTSC playback.
SP
VPS/PDC
+8
4
0
6
15dB
NORM
! 0 9 # $ 8
1 5 6 7 3 4 2
STILL:
SLOW:
RECORD:
RECORD PAUSE:
PLAY:
FF/REW VARIABLE
SEARCH:
8 Audio Mode Indicator displays audio output
mode currently selected.
੬
pg. 38, 39
9 Tape Remaining Time Indicator displays time
remaining on tape when certain buttons are
pressed.
੬
pg. 17
0 "Cassette Loaded" Mark lights once a cassette is
inserted; remains lit until cassette ejected.
! PDC Indicator lights when PDC has been
engaged for timer recording.
੬
pg. 19, 21
* VPS (Video Programme System) recording is not currently
available in the U.K. and not possible with this recorder.
@ VCR Indicator lights when the video recorder is
in the video mode. At this point, the TV auto-
matically enters AV mode.
੬
pg. 12
# Counter shows time elapsed since playback or
recording began.*
With
displayed, shows time remaining from
current tape position to end of tape (
੬
pg. 17).
Counter, Preset Position**, Clock and Tape
Remaining Time Display appear alternately
when DISPLAY (or – –:– – on remote control) is
pressed.
* If the counter exceeds –20 hours ("–20:00:00"), the display
does not show the "–2" of "–20:00:00". In this case,
confirm the counter on the TV screen.
** Preset Position is not displayed during playback.
$ Mode shows external input mode selected (I-1,
L-1, L-2, F-1, S-1 or S-2).
