49

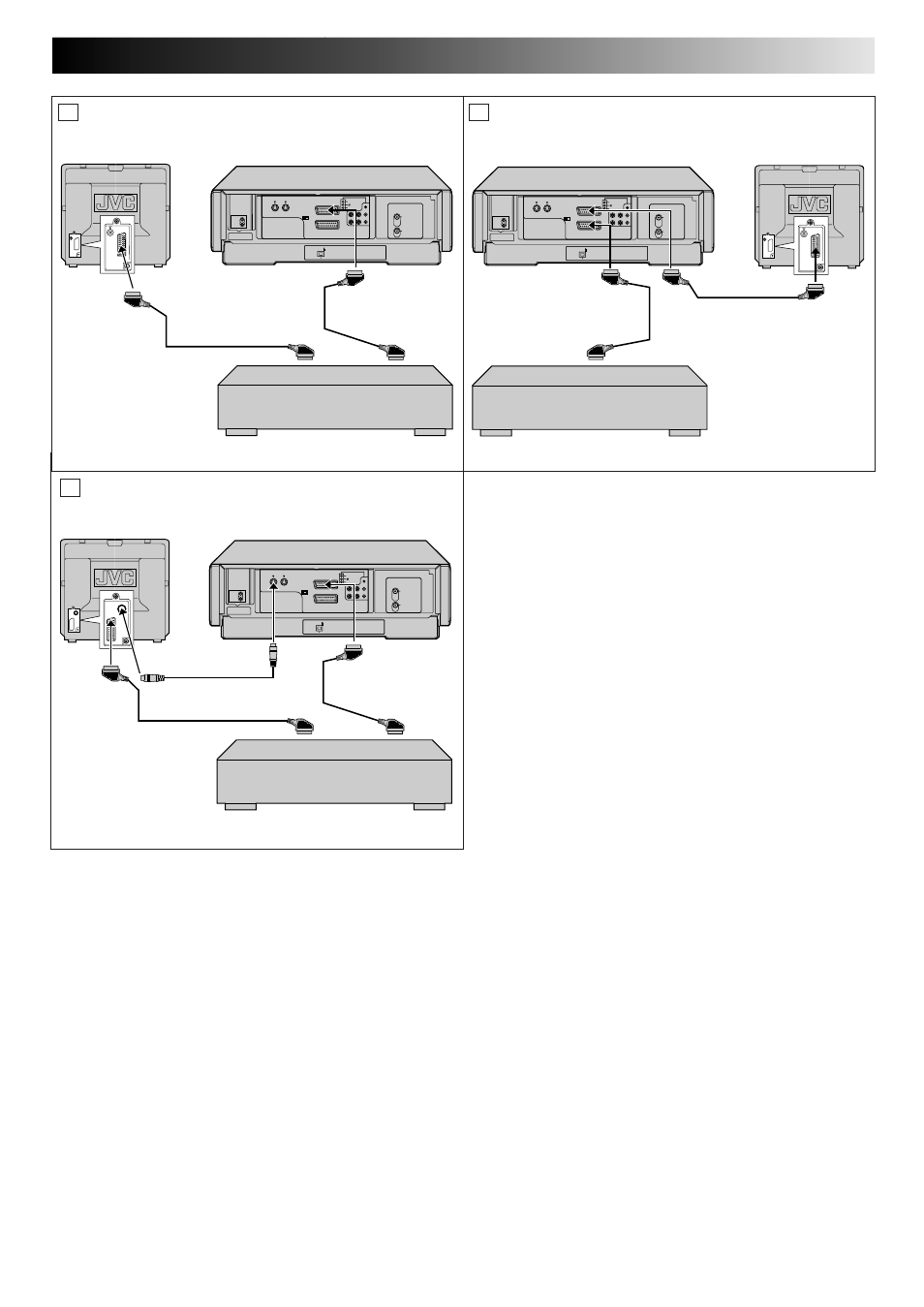

21-pin SCART Cable
(not provided)
Player
Your recorder Recorder Your recorder
TV Receiver
(AV mode) TV Receiver
(AV mode)
21-pin SCART Cable
(provided)
21-pin SCART Cable
(not provided)
Another recorder Another recorder
Recorder Player
A B
NOTES:
● All necessary cables can be obtained from your dealer.
● For Y/C signal input/output, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.
● When you select EDIT to dub tapes in step 4, be sure to select AUTO (or NORM when B.E.S.T. is set to OFF) after you finish
dubbing the tapes.
● When you use this recorder as the player for editing, be sure to set "O.S.D." to "OFF" before starting (
੬
pg. 47).
● If you are using another recorder with S-Video and Audio input/output connectors, you can connect those connectors to this
recorder's S-VIDEO IN/S OUT and AUDIO IN/OUT connectors.
When Using Your Video Recorder As The Source Player ...
... connect its rear panel S OUT and AUDIO OUT connectors to the recording deck's S-Video and Audio input connectors.
When Using Your Video Recorder As The Recording Deck ...
... connect its rear panel S-VIDEO and AUDIO input connectors to the source player's S-Video and Audio output connectors.
Then, set the recorder's input mode to "S-1".
Another recorder
Recorder
Player
Your recorder
TV Receiver
(AV mode)
21-pin SCART Cable
(not provided)
S-Video Cable
(provided)
C
21-pin SCART
Cable (provided)
21-pin SCART
Cable (provided)
