74
SUBSIDIARY INFORMATION (cont.)
1 Mains Power Inlet enables connection to a
mains outlet using the provided Mains Power
Cord.
੬
␣ pg.␣ 6, 7
2 S OUT Connector enables S-VIDEO connection
to TV or second recorder.
੬
pg. 7, 48
3 S IN Connector enables S-VIDEO connection to
camcorder or second recorder; input recordable
when "S-1" selected.
੬
pg. 49
4 AV1 OUT Switch selects the type of signal
output via the 21-pin AV1 IN/OUT connector.
੬
pg. 6, 40
5 AV1 IN/OUT Connector enables AV connec-
tion to TV or second recorder; input recordable
when "L-1" selected.
੬
pg. 6, 48
6 SYNCHRO EDIT Connector enables
connection to camcoder equipped with LANC
connector, for easy editing.
੬
pg. 51
7 J Terminal [JLIP (Joint Level Interface Protocol)
Connector] enables connection of a personal
computer or similar device to allow computer-
ized control of the recorder during editing and
certain other operations.
੬
pg. 52
8 ANT. IN Connector enables connection of
aerial.
੬
pg. 6, 7

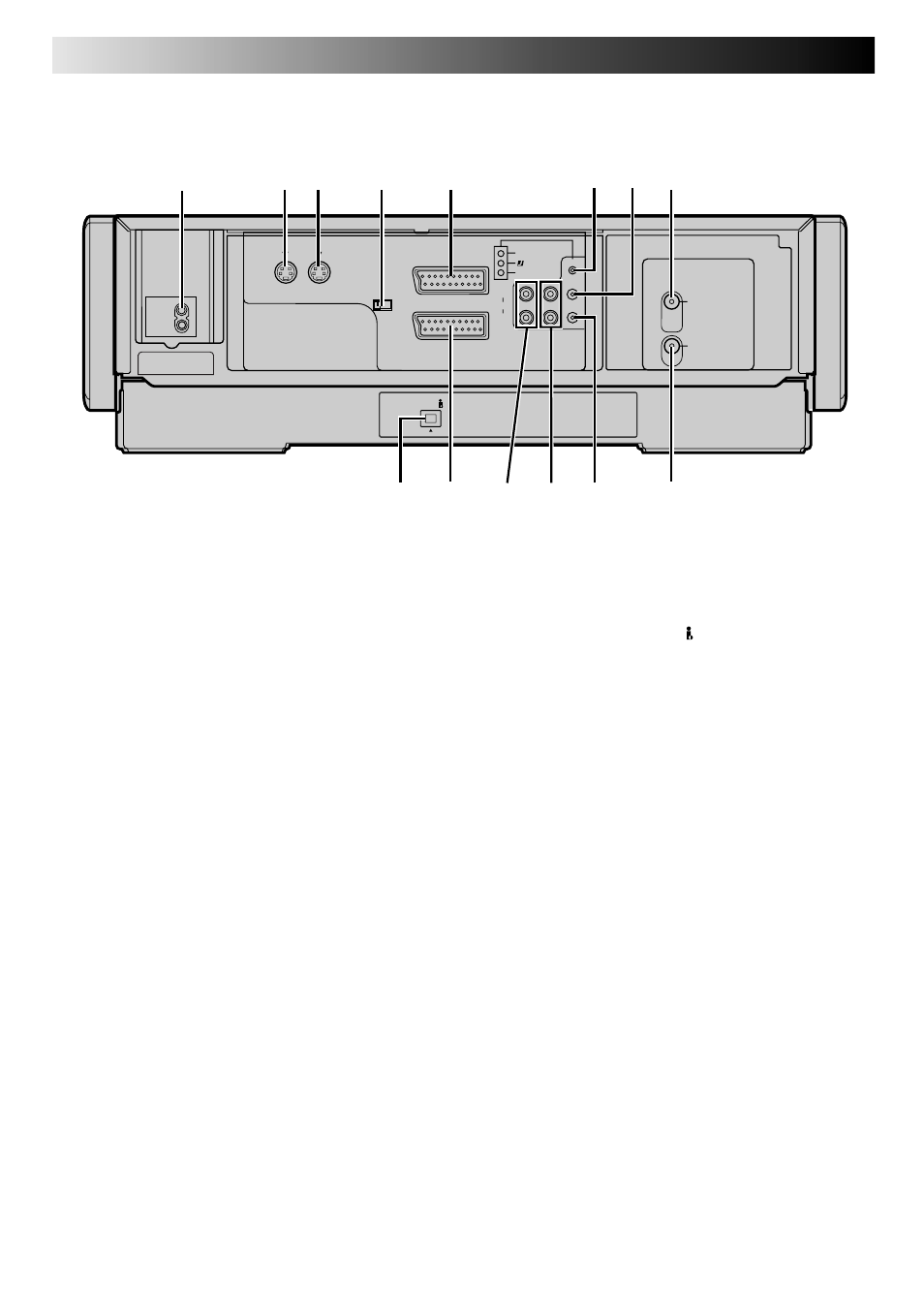

REAR VIEW
9 DV IN Connector (i.Link*) enables connection
to digital video devices; input recordable when
"I-1" selected.
੬ pg. 47
* i.Link refers to the IEEE1394-1995 industry specification
and extensions thereof. The logo is used for products
compliant with the i.Link standard.
0 AV2 IN/DECODER Connector enables connec-
tion of satellite receiver, decoder or second
recorder; input recordable when "L-2" selected.
੬
pg. 40, 48
! AUDIO OUT (L/R) Connectors enable
connection of audio cassette recorder, TV or
second video recorder for dubbing.
੬
pg. 57
@ AUDIO IN (L/R) Connectors enable easy
connection of audio output [mono (L) or Hi-Fi
(R)] from another recorder, camcorder or other
source for editing.
੬
pg. 46
# Remote PAUSE Connector enables connection
to JVC camcorder equipped with Master Edit
Control, for easy editing.
੬
pg. 46
$ ANT. OUT Connector enables connection to
aerial terminal of TV receiver.
੬
pg. 6, 7
AV1 IN/OUT (L-1)
AV2 IN/DECODER (L-2)
DV IN
AV1 OUT
COMP. Y/C
S IN
(S-1)
S OUT
R.PAUSE
ANT. IN
ANT. OUT
R
L
AUDIO
OUT IN (S-1)
SYNCHRO EDIT
JLIP
1
$ 0 !
4 2 8
9
3 5
@ #
6 7
