Tempstar/HH GPX Series Technical Manual 7610-002-57-32
Issued: 07-24-2006 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION

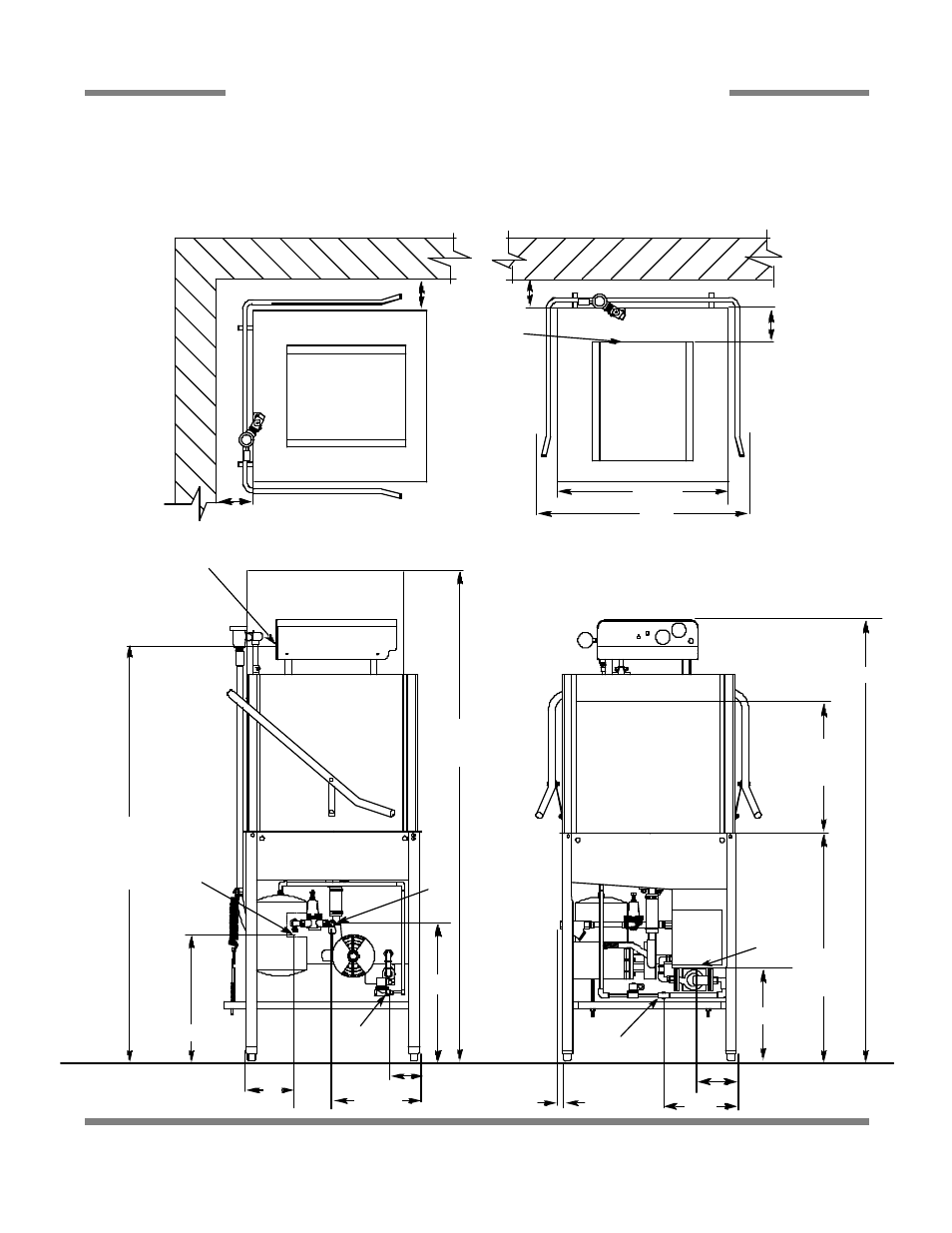

DIMENSIONS FOR TEMPSTAR GPX
A - DRAIN 1 1/2” NPT
B - WATER INLET 1/2” NPT
C
- ELECTRICAL CONNECTION
D - STANDARD WALL CLEARANCE WITH DISHTABLE 4”
E - OUTLET TO BOOSTER HEATER 3/4” NPT
F
- INLET FROM BOOSTER HEATER 3/4” NPT
LEGEND
1”
14"
14"
34”
TABLE
HEIGHT
17”
MACHINE
OPENING
64 3/8”
76”
W/ DOOR
OPEN
21”
11”
60 5/8”
ELECTRICAL
CONNECTION
TO THE
FLOOR
18 1/4”
5”
13 1/4”
4 1/4”
4 7/8”
32”
25 1/4”
A
B
F
F
E
C
D
D D
C
ALL DIMENSIONS ARE +/- 1/2”
DUE TO ADJUSTABLE FEET.
4
