Jackson Door-type Dishmachine TEMPSTAR GPX - Manual (Page 52)

Tempstar/HH GPX Series Technical Manual 7610-002-57-32
Issued: 07-24-2006 Revised: N/A
SECTION 6: PARTS SECTION
WASH & RINSE ARM/MANIFOLD ASSEMBLIES (TEMPSTAR HH GPX) (CONTINUED)
47
ITEM QTY DESCRIPTION Mfg. No.
1 1 Upper Manifold 05700-031-34-82
2 4 Nut, 3/8"-16 S/S Hex 05310-276-01-00
3 4 Lockwasher, 3/8 05311-276-01-00
4 2 Bolt, Hex 3/8”-16 x 7/8" Long 05306-011-36-95
5 2 O Ring 05330-111-35-15
6 1 Positioning Bracket, Manifold Tube 05700-011-34-63
7 1 Tube, Wash Manifold 05700-031-92-58
8 2 Gasket, Manifold 05700-111-35-03
* 1 Wash Arm Assembly 05700-021-35-39
9 1 Wash Arm Weldment 05700-021-35-93
10 1 Bearing Assembly 05700-021-35-97
* 1 O-ring 05330-002-60-69
* 2 Rinse Arm Assembly 05700-002-58-09
11 2 Clip, Retaining, Rinse Head Bushing 05340-112-01-11
12 4 Washer 05330-011-42-10
13 2 Bushing, Rinse Head 05700-021-33-84
14 2 Rinse Arm 05700-031-49-58
15 4 Plug 04730-609-04-00
16 2 Bearing 03120-002-72-24
17 1 Lower Wash Manifold Weldment 05700-002-21-70
18 5 Locknut, 1/4"-20 S/S Hex with Nylon Insert 05310-374-01-00
19 1 Rinse Manifold Weldment 05700-002-01-19
20 2 Bolt, Hex 3/8”-16 x 1 1/4" Long 05305-276-10-00
21 1 Wash Arm, Double Assembly 05700-031-92-49

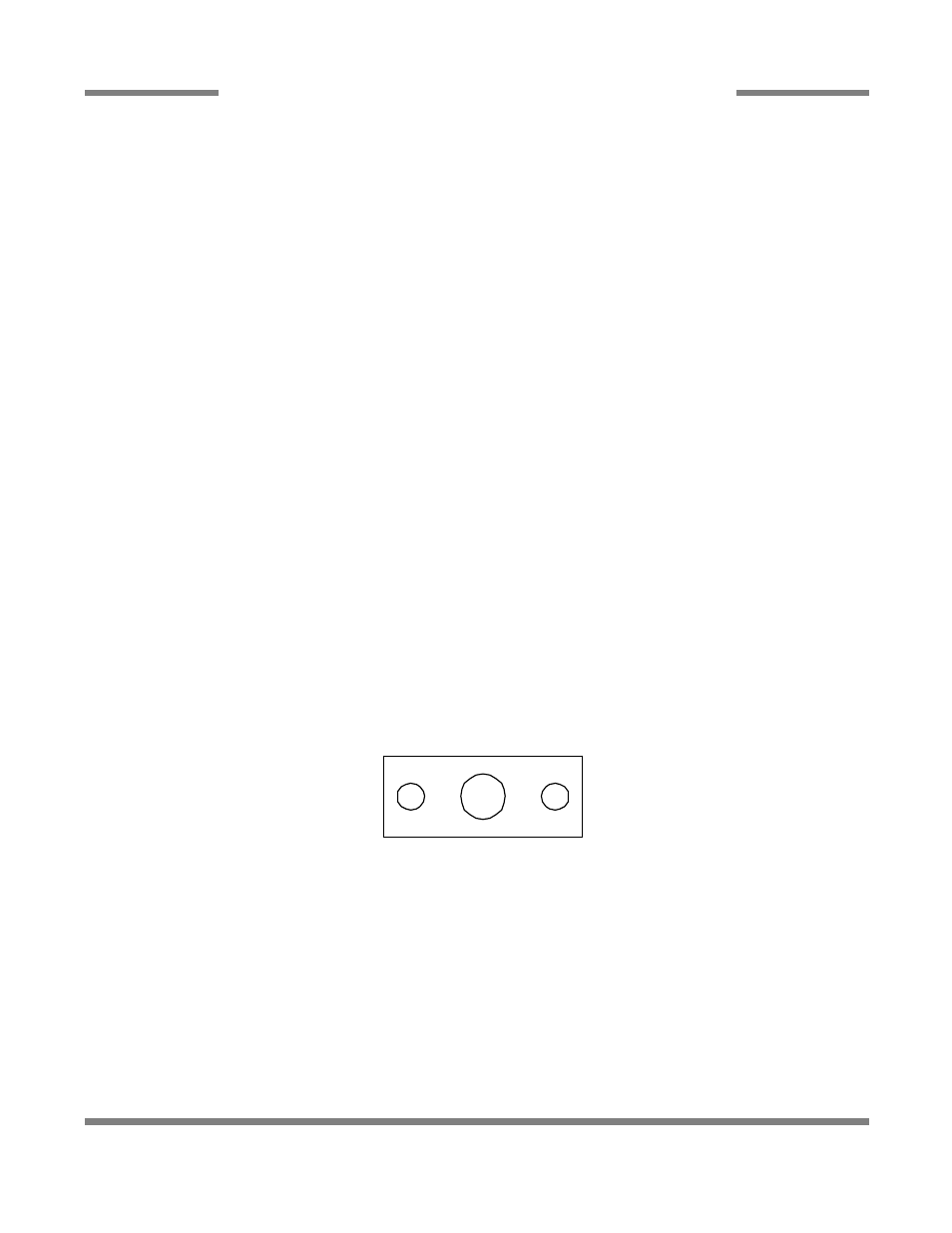

Rinse Injector Gasket
2 per machine
05330-111-42-81
