Tempstar/HH GPX Series Technical Manual 7610-002-57-32
Issued: 07-24-2006 Revised: N/A
SECTION 6: PARTS SECTION

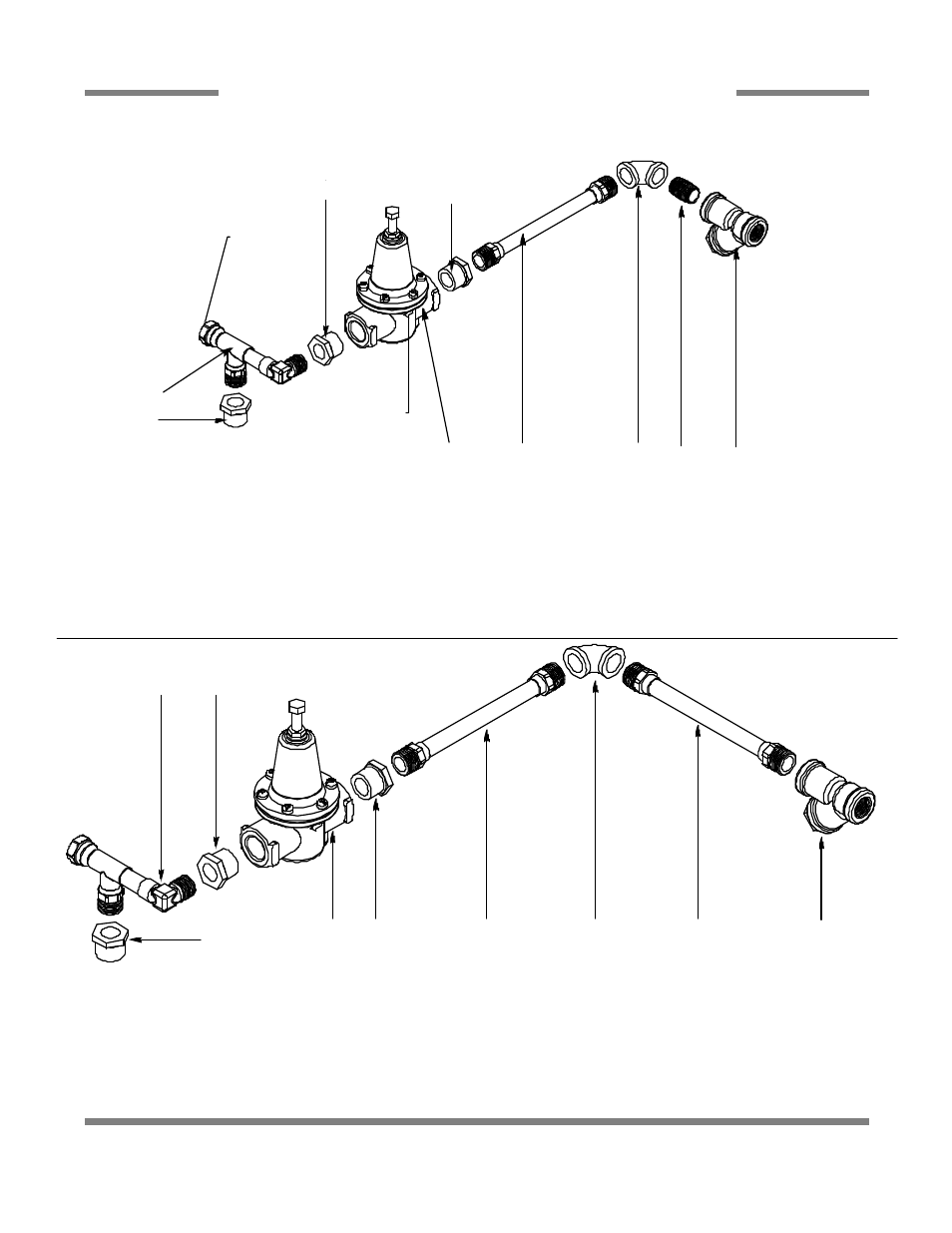

INLET PLUMBING ASSEMBLIES
NOTE: ENSURE DIRECTION
OF FLOW THROUGH THE
PRESSURE REGULATING
VALVE IS IN THE CURRECT
DIRECTION.
CONNECTS TO THE WASH
TANK HEATING COIL OUTLET
ITEM QTY DESCRIPTION Mfg. No.
* 1 Plumbing, Inlet, Tempstar HH GPX 05700-002-63-16
1 3 Bushing, Hex 3/4” M to 1/2” F, Brass 04730-002-56-27
2 1 Outlet, Heating Coil Assembly 05700-002-56-70
3 1 Valve, Pressure Reducing, 3/4” 04820-002-51-53
4 2 Tubing, Inlet Plumbing Assembly 05700-002-56-71
5 1 Elbow, 90° 1/2” 04730-406-32-01
6 1 Y-Strainer, 1/2” 04730-217-01-10
2
1
7
1
3 4
1
6 5
ITEM QTY DESCRIPTION Mfg. No.
* 1 Plumbing, Inlet, Tempstar GPX 05700-002-56-69
1 3 Bushing, Hex 3/4” M to 1/2” F, Brass 04730-002-56-27
2 1 Outlet, Heating Coil Assembly 05700-002-56-70
3 1 Valve, Pressure Reducing, 3/4” 04820-002-51-53
4 1 Elbow, 90° 1/2” Street Brass 04730-206-08-00
5 1 Nipple, 1/2” Close Brass 04730-207-15-00
6 1 Y-Strainer, 1/2” 04730-217-01-10
7 1 Tubing, Inlet Plumbing Assembly 05700-002-56-71
2 1
3 1 4 5 4 6
1
TEMPSTAR GPX
TEMPSTAR HH GPX
40
