Replace Packet Forwarding Engine Components

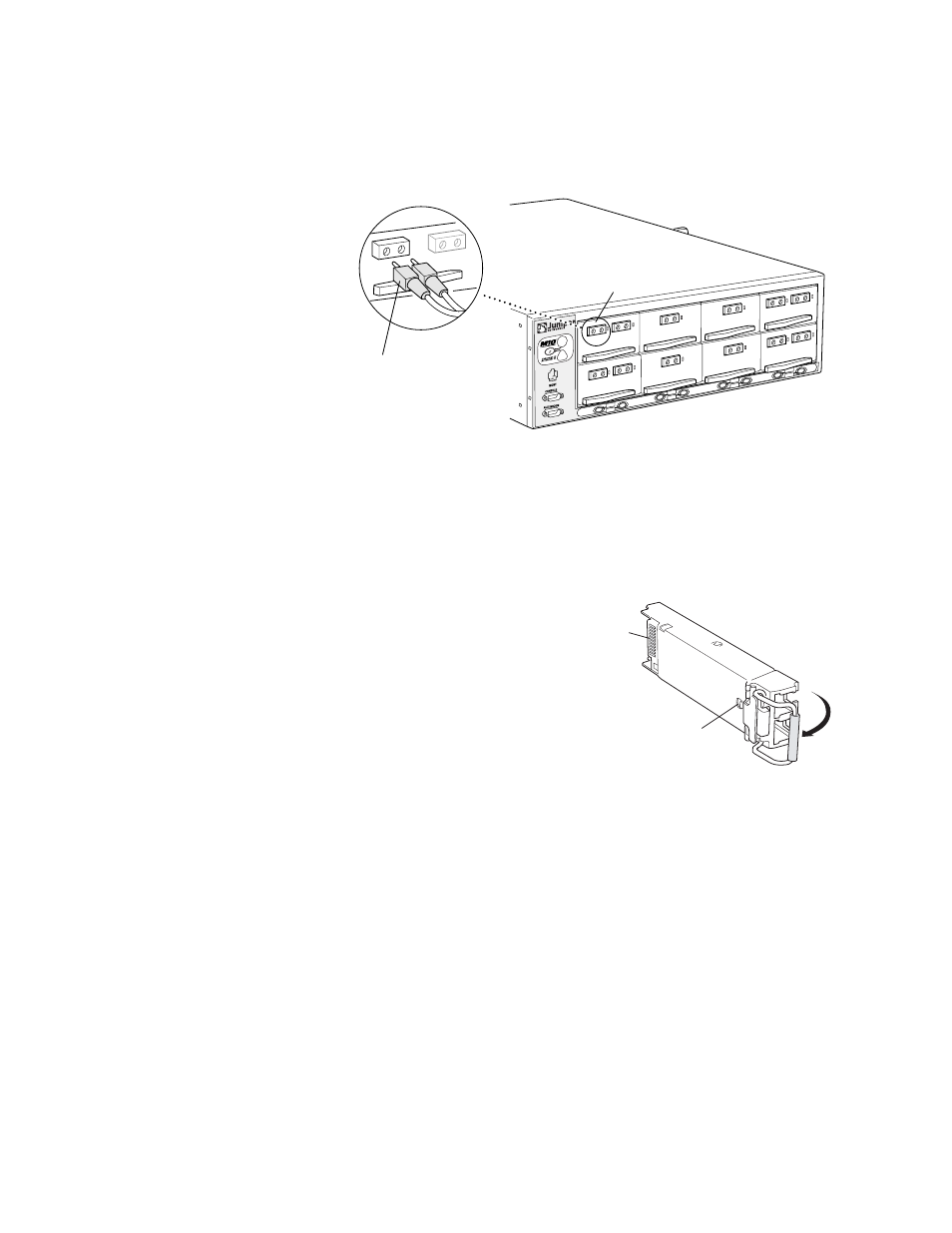

Figure 32: Connect Fiber-Optic Cable to a PIC
1334
PIC
PIC cable
Replace an SFP
Small form factor pluggables (SFPs) are optical transceivers that can be removed from a PIC
(for more information, see “Physical Interface Cards (PICs)” on page 9).
Figure 33: Small Form Factor Pluggable (SFP)
1855
Locking pin
Connector
SFPs are hot-insertable and hot-removable. Removing an SFP does not interrupt PIC
functioning, but the removed SFP no longer receives or transmits data. To replace an SFP,
perform the following procedures:
•
Remove an SFP on page 95
•
Install an SFP on page 96
Remove an SFP
To remove an SFP, follow this procedure (see Figure 33):
1. Place an electrostatic bag or antistatic mat on a flat, stable surface to receive the SFP.
Have ready a rubber safety cap for the SFP transceiver and the cable.
Replace Hardware Components 95
