AutoTrac Controller—Raven
BA31779,0000223 -19-04AUG11-9/21
BA31779,0000223 -19-04AUG11-10/21
Continued on next page
BA31779,0000223 -19-04AUG11-11/21

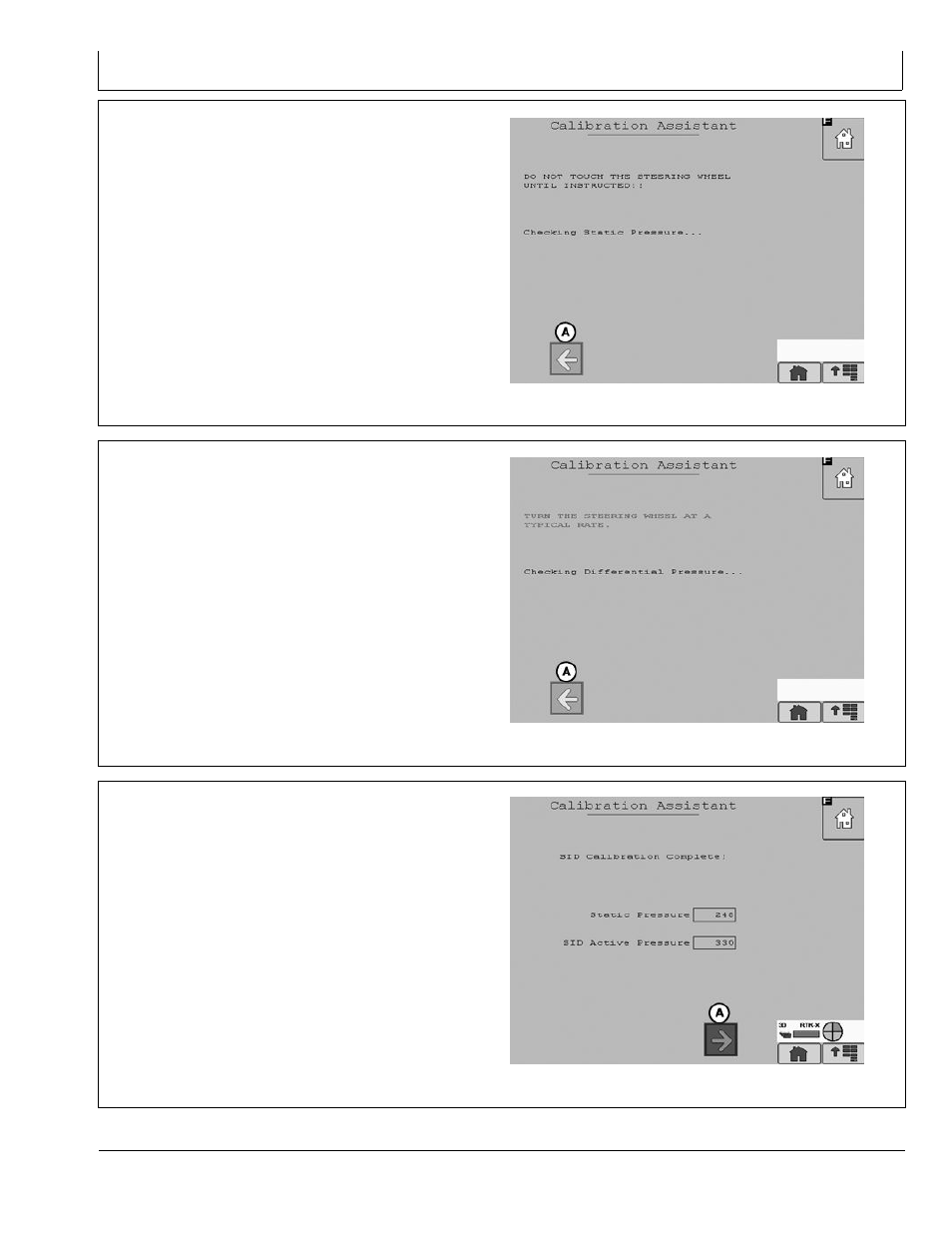

SID will start calibration. Do not touch the steering wheel
until instructed. AutoTrac will perform a static pressure
test .
A—Previous
PC13391
—UN—20APR1
1
SID Calibration
When instructed turn the steering wheel at a normal rate.
AutoTrac will perform a Active Pressure test.
NOTE: Turning the steering wheel too fast or too slow
will cause an inaccurate calibration and may cause
undesired AutoTrac performance.
PC13394
—UN—20APR1
1
Differential Pressure Test
When the Active pressure test is complete the SID
Calibration Complete screen will appear. Select Next (A)
to proceed to the Resume Switch Status screen.
A—Next
PC13395
—UN—20APR1
1
SID Calibration Complete
25-4
090811
PN=17
