8
2.2 Clear CMOS Setup
If the user wants to clear the CMOS Setup data (for example, the user forgot the
password and needed to clear the setup data then set the password again), the
user should close the JP2 (set the jumper to 2-3) about 3 seconds, then open it
again. For normal operation, set the jumper to 1-2 or open JP2.
• JP2: Clear CMOS Setup
JP2 Description
1-2 Keep CMOS Setup
(Normal Operation)
2-3 Clear CMOS Setup
2.3 Keyboard Power Selection
This board can support keyboard wakeup. If the user wants to use this function,
the keyboard has to be supplied with standby 5V by setting the jumper to 2-3.
• JP4: Keyboard Power Selection
JP4 Description
1-2 VCC
2-3 5VSB
2.4 Compact Flash Card Master/Slave Mode Setting
• JP3: Master/Slave Mode Setting
JP3 Description
OPEN SLAVE
SHORT MASTER

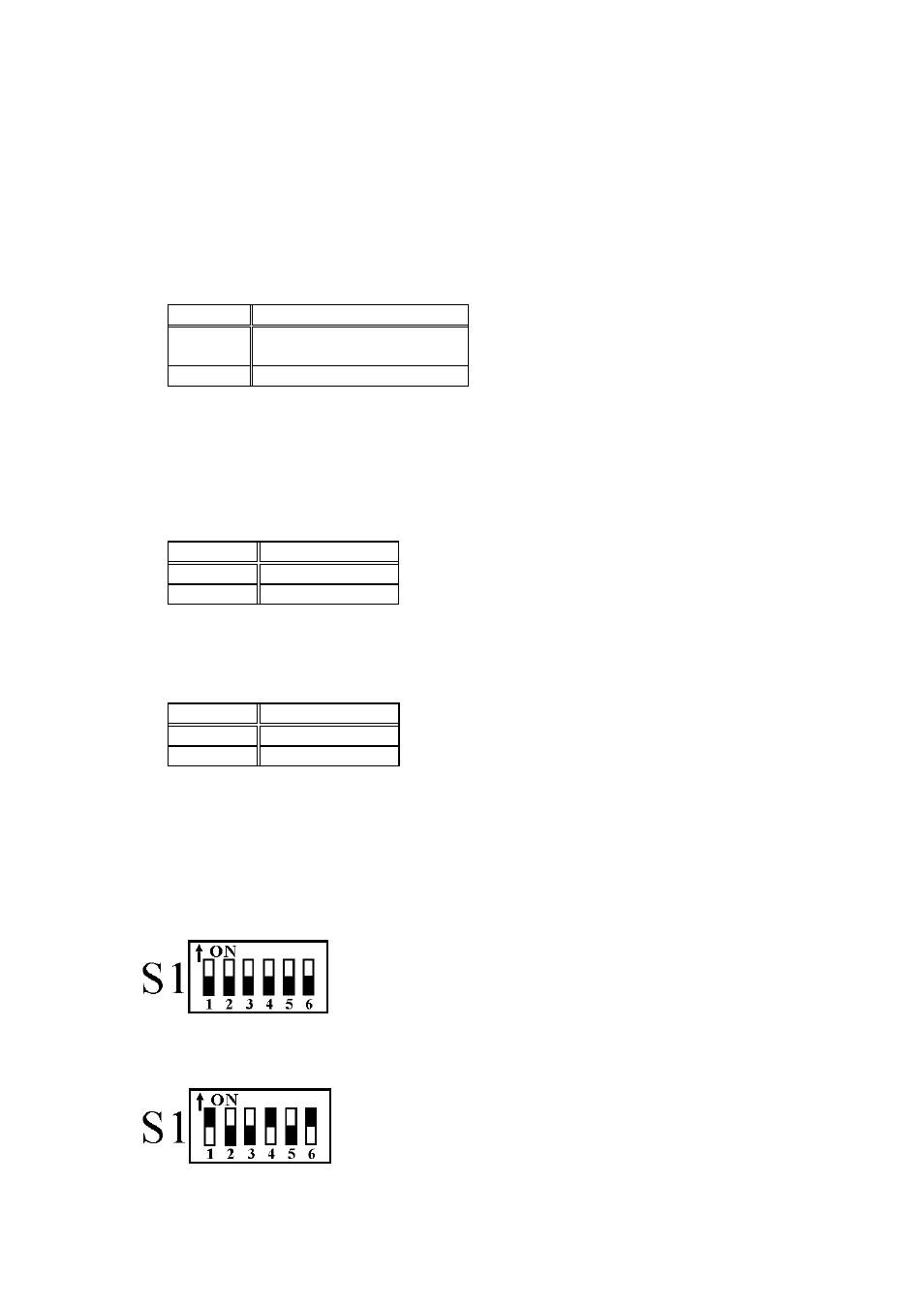

2.5 CPU Voltage Setting
SAGP-845EV can use two different types of CPU. One is Pentium4 CPU model and
the other is Pentium4-M CPU.
While using Pentium4 CPU, please turn OFF 1, 2, 3, 4, 5, and 6 of S1 switch. CPU
VID will now automatically configure the power of CPU (Default).
When using Pentium4-M CPU, turn ON 1,4,6 of S2 switch, and turn OFF 2, 3, 5.
The power of CPU will be set to 1.3V at this time.
