15

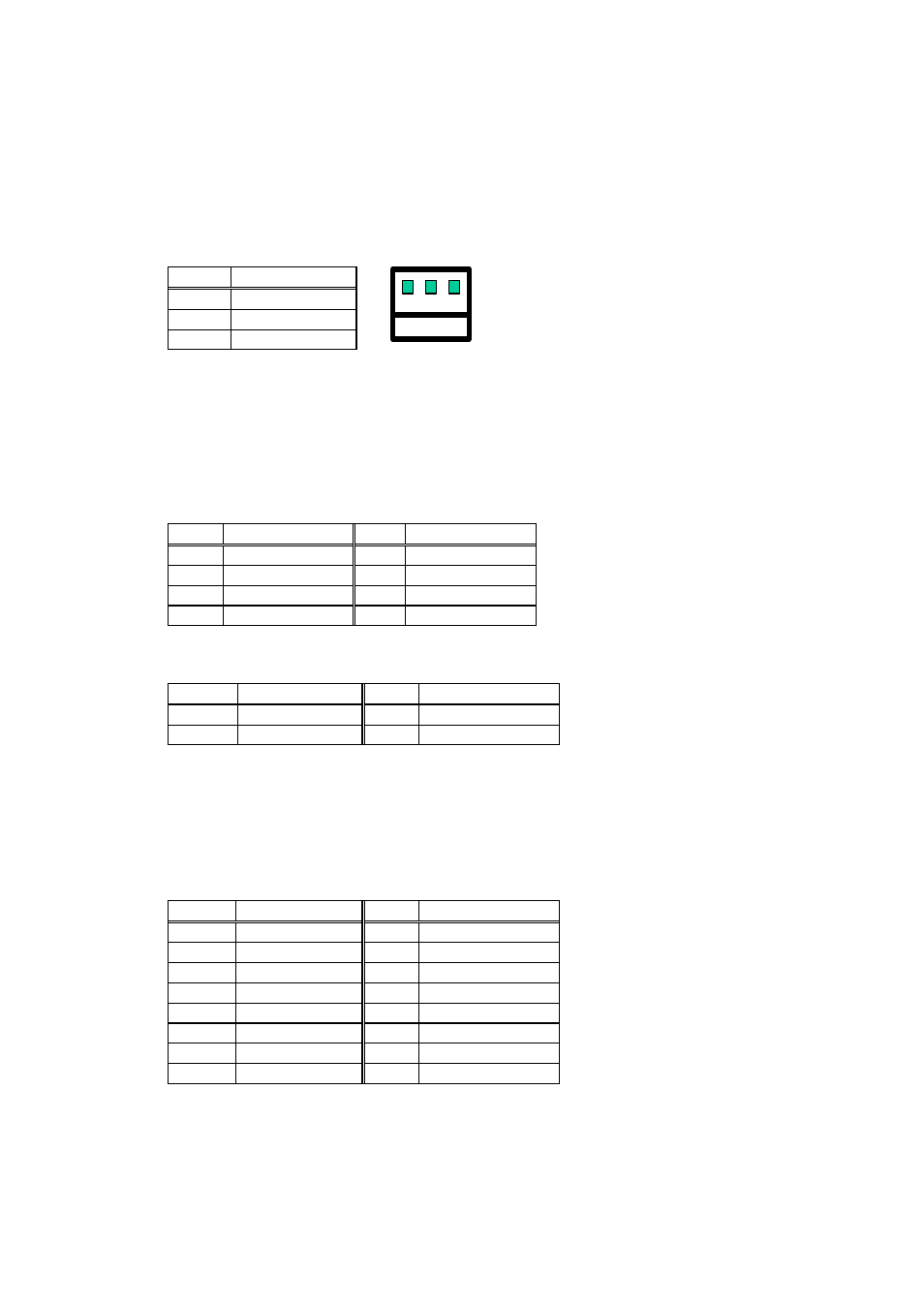

3.8 Fan Connector
SAGP-845EV provides three CPU cooling fan connectors, which supply
12V/500mA.
• FAN1/FAN2/FAN3: CPU Fan Connector
PIN Description
3 Sensor
2 12V
1 Ground
3.9 LAN RJ45 Connector
SAGP-845EV is equipped with a built-in 10/100Mbps Ethernet controller. You can
connect it to your LAN through RJ45 connector. The pin assignment is as follows:
• LAN1: LAN RJ45 Connector
PIN Description PIN Description
1 TX+ 5 N/C
2 TX- 6 RX-
3 RX+ 7 N/C
4 N/C 8 N/C
• CN3: LAN Status LED Connector
PIN Description PIN Description
1 100ACT+ 2 100ACT-
3 100LINK+ 4 100LINK-
3.10 VGA Connector
SAGP-845EV has a 15-pin VGA connector that connects directly to your CRT
monitor.
• VGA1: 15-pin Female Connector
PIN Description PIN Description
1 RED 2 GREEN
3 BLUE 4 NC
5 GROUND 6 GROUND
7 GROUND 8 GROUND
9 NC
10 GROUND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK
3 2 1
