IBM PSB Form Factor Board SAGP-845EV User Manual
Page 16
16
3.11 Audio Connectors
SAGP-845EV has an onboard audio controller (CMEDIA CMI8738LX) that connects
input and output devices through pin-headers (CN4). The audio controller
supports 5.1 channel sounds including LINEOUT, REAR, and CENTER/BASS.
CD-IN (CDIN1).

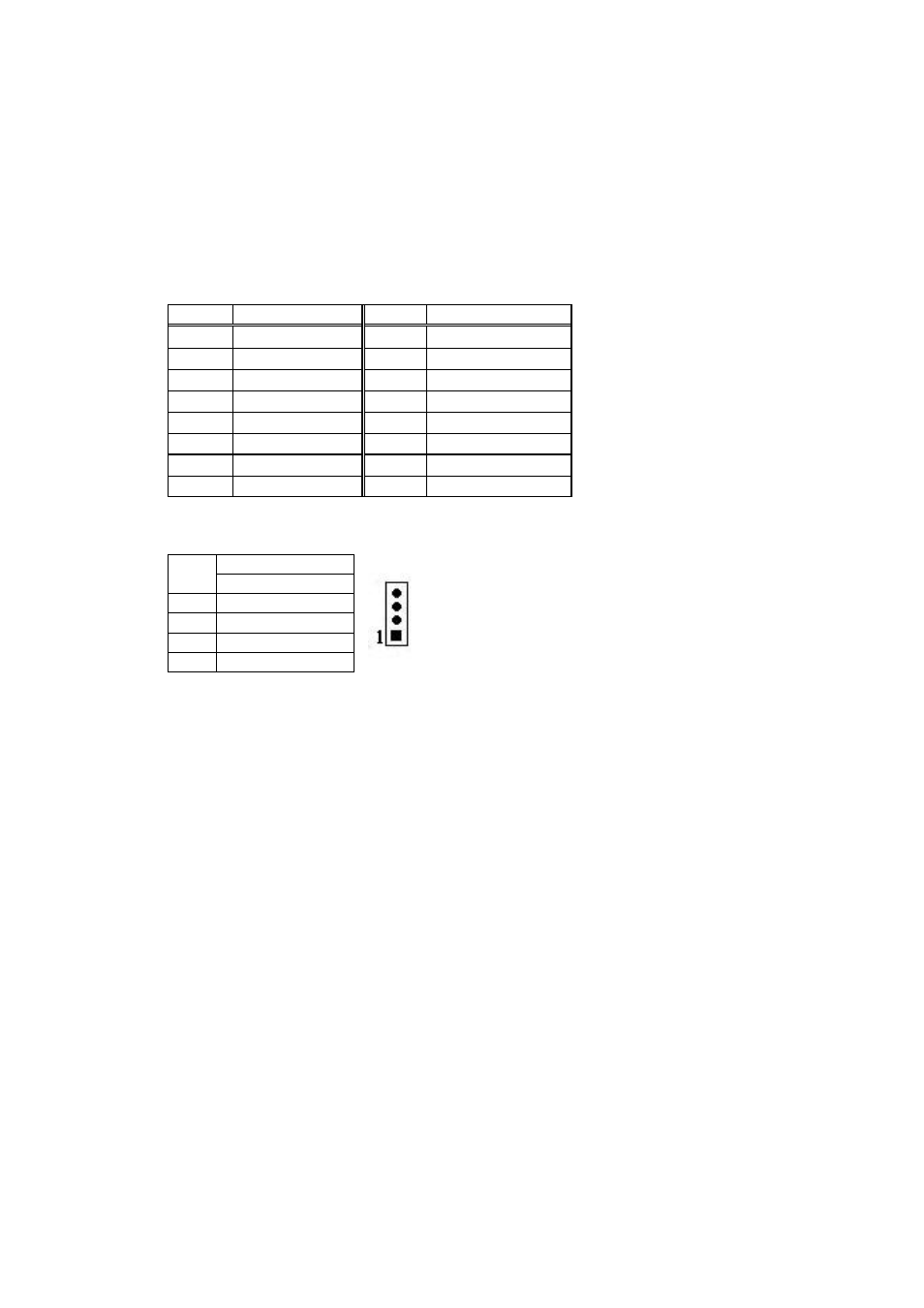

• CN4: Audio Connector (2x8_2.00mm)
PIN Description PIN Description
1 LINEOUT_L 2 GROUND
3 LINEOUT_R 4 GROUND
5 CENTER 6 BASS
7 GROUND 8 GROUND
9 LININ_L 10 LINEIN_R
11 GROUND 12 GROUND
13 REAR_L 14 REAR_R
15 MIN_IN 16 GROUND
• CDIN1: CD-IN Connector (1X4_2.54mm pin head)
Description
PIN
CDIN1
1 RIGHT
2 GND
3 GND
4 LEFT
