Chapter 2 installation – IBM PSB Form Factor Board SAGP-845EV User Manual
Page 7
7
Chapter 2 Installation
This chapter describes how to install the SAGP-845EV. At first, the layout of
SAGP-845EV is shown, and the unpacking information that you should be careful
with is described. The jumpers and switch settings for the SAGP-845EV 's
configuration, such as CPU type selection, system clock setting, and watchdog
timer, are also included.
2.1 SAGP-845EV
Layout

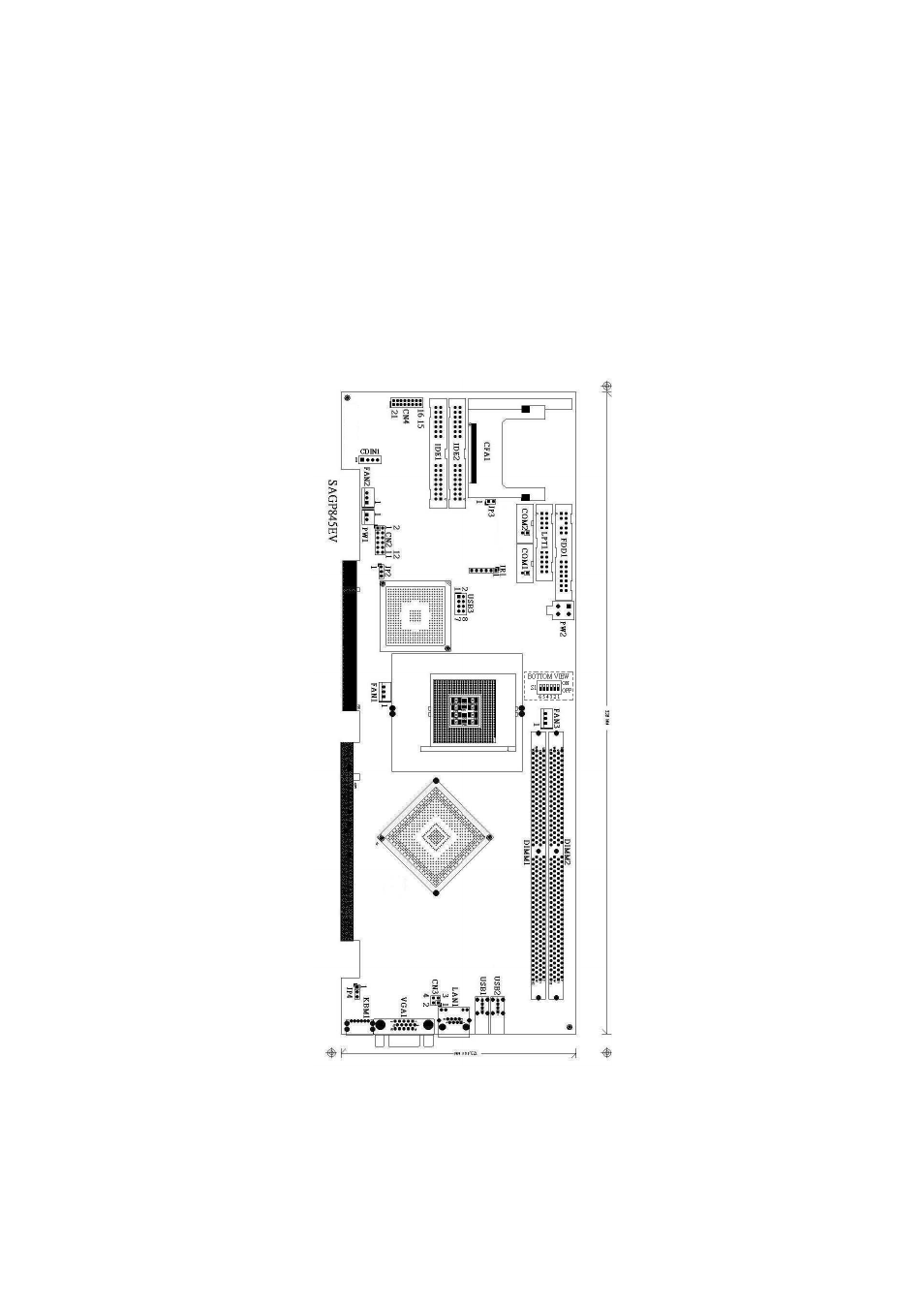

• Layout
