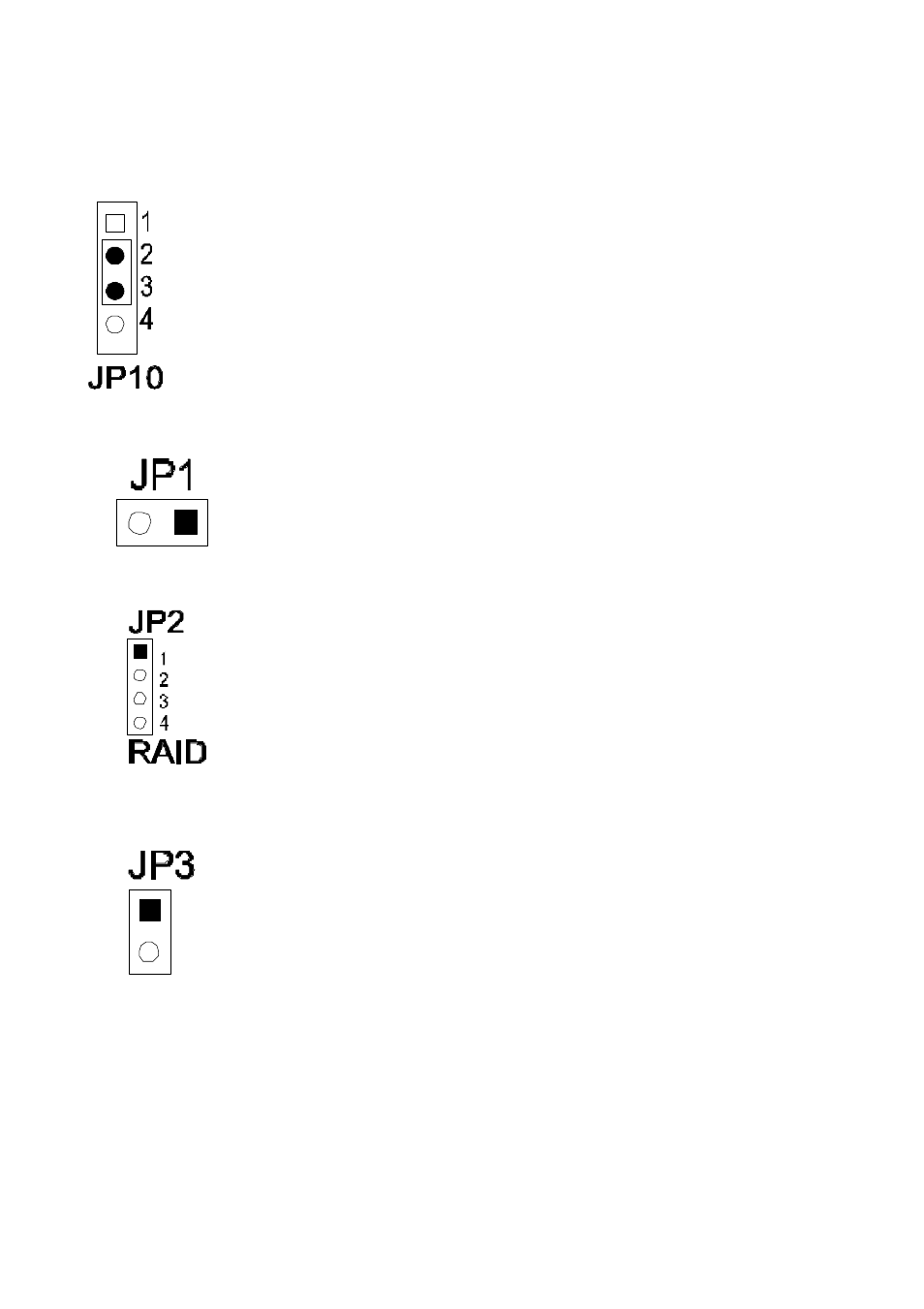

JP10:

CMOS. When you forget the password, clear CMOS,

restart!
2-3 SHORT for normal. Default.
3-4 SHORT to clear CMOS (power must be off).
OPEN for external battery installed. It is an important jumper.
When BIOS setting is changed by user becoming unstable in
system board, or I/O don’ t work properly, reset CMOS RAM
data ( default setup.)

JP1

: Set SCSI port power down mode.

SHORT: Power-down mode
OPEN: Normal Power mode. Default.

JP2

: RAID function.

OPEN: RAID function enable
1-2, 3-4 SHORT: RAID function disable. Default.

JP3

: Wide SCSI function

SHORT: Enable Wide SCSI function
OPEN: Disable Wide SCSI function. Default

4.4 Install System DRAM Memory

The board supports 2pcs 72-pin, 32-bit SIMMs (Single Inline Memory
Modules) and 2pcs 168-pin, 64-bit DIMM (Dual Inline Memory Modules)
of 4, 8, 16, 32MB to form a memory size between 8MB to 128MB.
The
