Intel® Gigabit Ethernet Switch AXXSW1GB User Guide 55
To modify the VLAN interface settings:
1. Click . The Interface Settings Page opens:

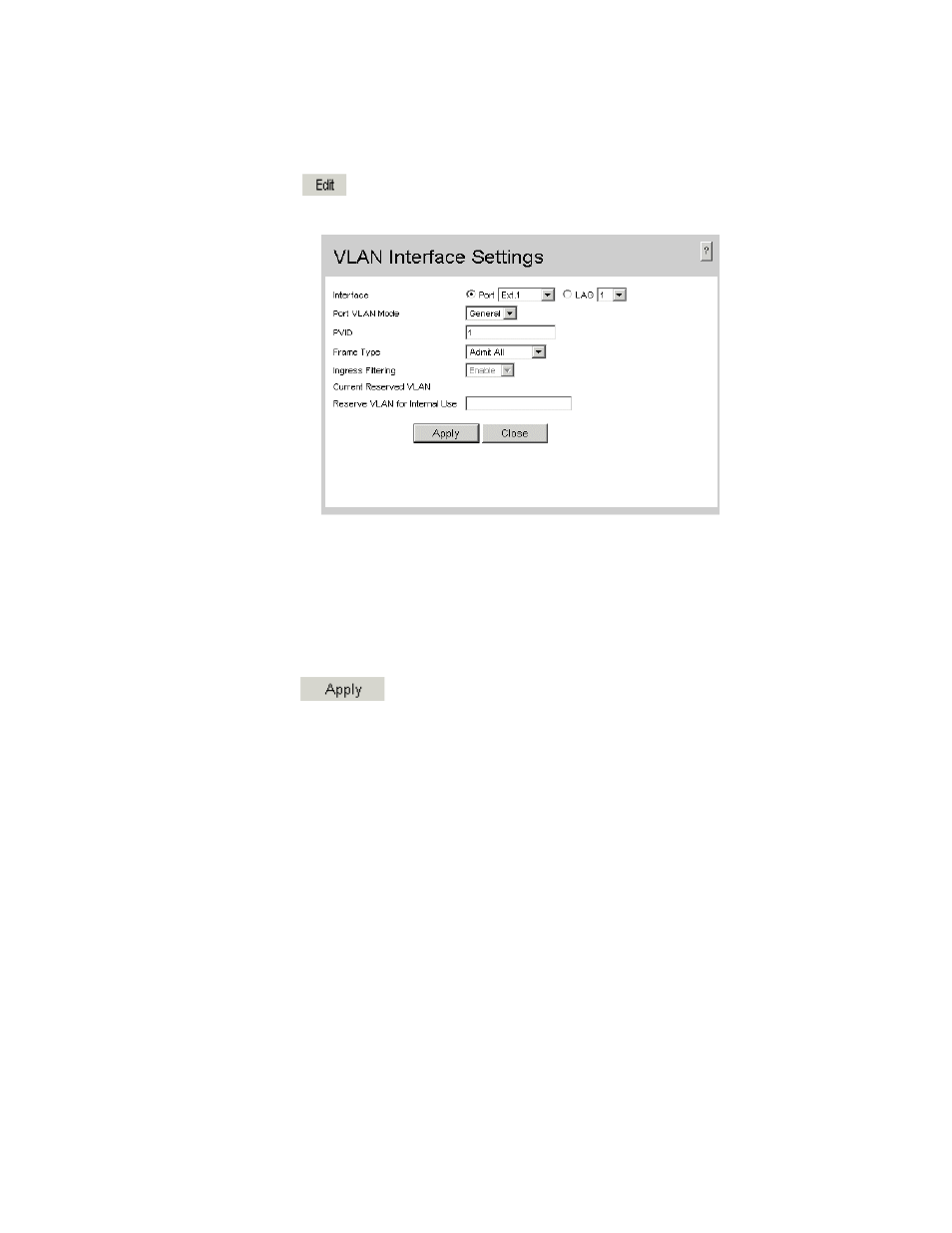

Figure 39. VLAN Interface Settings Page
In addition the fields appearing on the Interface Settings Page, the VLAN Interface
Settings Page contains the following fields:
• Current Reserved VLAN — Displays the current reserved VLAN on the interface.
• Reserve VLAN for Internal Use — Indicates the VLAN selected by the user to be
the reserved VLAN if not in use by the system.
2. Modify the relevant fields.
3. Click
. The VLAN membership is modified
